High Temperature Industrial Gas Oil Fired Thermal Fluid Heater/Thermal Oil Boiler For Plywood Factory

Thermic Fluid Heater, thermal oil boiler, hot oil boiler

thermal capacity: 350kw-1400KW

Working pressure:0.8-1.0 MPA

Outlet temperature:320 C

Available fuel:natural gas, coke oven gas, bio-gas,liquefied petroleum gas, diesel, heavy oil, light oil, crude oil

Available industries:Petroleum, chemical, chemical fiber, pharmaceutical, textile printing and dyeing, building materials, wood processing, vegetable oil processing and other industries

Industrial thermal oil boiler is based on the balance of the burner flame volume and the heat exchange surface area of the diesel, natural gas and city gas fuel. The outlet flue gas of the exhaust pipe reaches the optimum temperature, and the extra thick insulation layer minimizes the heat dissipation of the boiler. All types of boilers are assembled boilers, and only the system equipment and pipelines need to be connected to the boiler installation. The design of the integrated boiler makes installation easier and faster. The boiler uses intelligent control to make the boiler operation particularly convenient and simple. The controller is analog screen display, centralized control by central processor, automatic ignition and shutdown program control, automatic combustion control, automatic switching and control of circulating pump, automatic fault handling and alarm.

Performance characteristics:

1, larger coil combustion chamber can make the combustion in low temperature and reduce the nitrogen oxides emissions with the characters of energy saving and environmental protection.

2, the thermal oil heater structure increases the thermal efficiency. And the high-density ring tube design structure can also reduce the occupation space.

3. The reasonable circulation section structure of multi-pass heat transfer ensure the thermal oil flow load uniform and the operation stable

4, complete control system with warning system, easy operation, safe operation.

5. Spiral coil inside and outside the furnace is composed of many small diameter tube with the advantage of good performance thermal expansion and low pressure.

6, The output (oil) temperature can be accurately controlled. Medium temperature, pressure and smoke temperature protection can also be controlled.

The thermal oil heaters in assembly structure is easy for installation by just connecting system devices. Intelligent control system makes heater operation control easy. Controller with screen display has auto igniting, burning, circulation pumps control, alarm and other control functions.

Thermal oil boiler are insulated with rock wool, whose thickness of which is 100 mm to minimize heat loss and the rock wool is covered with embossed metal sheet, whose thickness of which is 0.8 mm.

Technical parameters

Thermal Oil Boiler For Hot Press takes diesel, gas, town gas as fuel. Three pass and wet back structure enhance it's thermal efficiency and lower flue gas temperature. Thicker insulated material layer makes radiating at minimum limit.

Full set fuel (gas) thermal oil boiler is consist of Horizontal boiler body, Boiler Burner (imported famous brand), Instruments, Chimney, Circulating Pump, Oil Filling Pump,Expansion Tank, Oil Storage Tank, Oil Gas Separator,Electric Control Cabinet (Chinese & English Version), Economizer (Optional),etc.

Scope of application:
1. Chemical industry - oleochemical, polymerization industry, reaction tank, distillation, concentration.
2, plastic industry - plastic guns, extrusion stereotypes.
3, textile industry - resin setting machine, dyeing machine, drying room, high temperature machine, roller machine.
4, the rubber industry - rubber vulcanization heating.
5, food industry - cooking, drying, vegetable oil refining.
6. Forest industry--heating and setting of splint, Pauli board and fiberboard.
7, paper industry - multi-layer cardboard packaging, drying, drying.
8. Others - heating of metal plating bath, paint condensation, drying, distillation, reduction, concentration, dehydration, and melting of asphalt in the pharmaceutical industry.

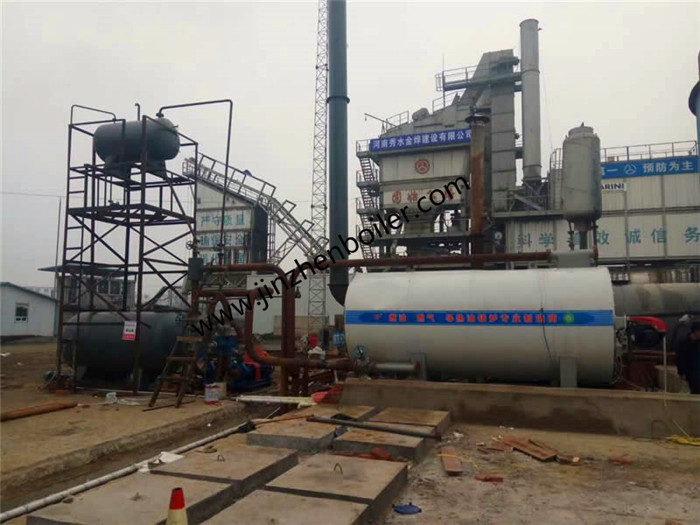

Installation drawing

Henan Jinzhen Boiler Co., Ltd is a professional industrial boiler manufacturer that specialized in the environment-friendly steam boiler, hot water boiler, thermal oil boiler and pressure vessels’ design, manufacture, installation, maintenance. Jinzhen Boiler factory is located in beautiful Zhoukou City which nearby Zhengzhou Airport, Shangqiu Railway Station, gets convenient traffic.We have over 6,000sq.m. building area, 105 employees, annual sales amount exceeds 25,000,000USD which includes 25% export amount in worldwide.

Jinzhen boilers include more than 150 kinds. There are:
(1) DZL coal/biomass fired steam boiler(1-20ton/h;)
(2) DZH wood fired steam boiler(0.5-6ton/h;)
(3) SZL biomass/coal fired steam boiler(4-25ton/h;)
(4) WNS series gas/oil fired steam boiler(0.5-20ton/h;)
(5) YLL(W) series coal/biomass fired thermal oil boiler(150,000-16,000,000Kcal)
(6) YY(Q)W gas /oil fired thermic fluid heater(150,000kcal-12,000,000Kcal)

All industrial boilers comply with GB/T quality standards and are greatly appreciated in a variety of markets throughout the world.Well-equipped facilities and excellent quality control throughout all production stages to totally guarantee customers' satisfaction.

As a result of high quality boiler and outstanding customer service, we have gained a global sales network reaching America, Australia, Mexico, Vietnam, Russia, Kazakhstan, South Africa, Syria,South Africa, Ethiopia, etc.
