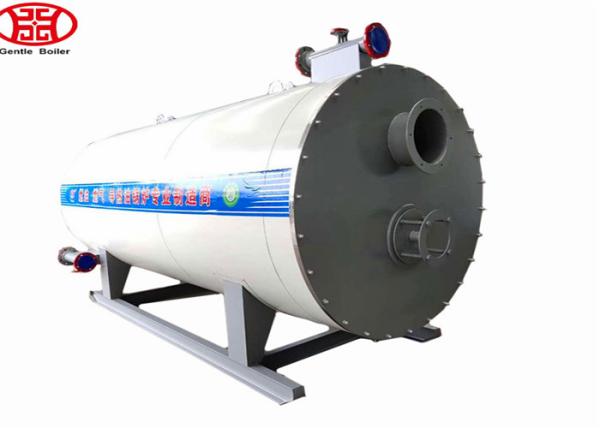

Hot sale natural gas and oil fired heat carrier dual fuel thermal oil heater

General introduction

This series thermal oil boiler has compact structure. The heating area is constituted by close-knit coil pipes from inside to outside.Inside coil pipes are the radiation heating surface, and the outer surface of inside coil pipes and outside coil pipes form a convection heating surface.Fuel burn fully in the combustion chamber, the radiation heating surface absorb most heat, and then high temperature flue gas goes into convection heating surface to exchange heat, then go into the air preheater (or waste heat boiler) to heat the required (or water).at last, the low temperature flue gas discharges to the aerosphere through the chimney.

Specification

Main features of industrial thermal oil boiler

(1) Access to low-pressure high-temperature thermal medium, convenient adjustment, heat evenly, to meet precise process temperature.

(2) Liquid circulation heat, no condensation heat loss emissions, high thermal efficiency heating system.

(3) The working medium heat and heat and temperature fluctuation on the volume change in the compensation measures within the system.

(4) Circulating heat medium before the strict control of air, water and other low volatile content of the technical measures.

Technical parameters

Installation drawing

Scope of application:

Henan Jinzhen Boiler Co., Ltd is a professional industrial boiler manufacturer that specialized in the environment-friendly steam boiler, hot water boiler, thermal oil boiler and pressure vessels’ design, manufacture, installation, maintenance. Jinzhen Boiler factory is located in beautiful Zhoukou City which nearby Zhengzhou Airport, Shangqiu Railway Station, gets convenient traffic.We have over 6,000sq.m. building area, 105 employees, annual sales amount exceeds 25,000,000USD which includes 25% export amount in worldwide.

Jinzhen boilers include more than 150 kinds. There are:
(1) DZL coal/biomass fired steam boiler(1-20ton/h;)
(2) DZH wood fired steam boiler(0.5-6ton/h;)
(3) SZL biomass/coal fired steam boiler(4-25ton/h;)
(4) WNS series gas/oil fired steam boiler(0.5-20ton/h;)
(5) YLL(W) series coal/biomass fired thermal oil boiler(150,000-16,000,000Kcal)
(6) YY(Q)W gas /oil fired thermic fluid heater(150,000kcal-12,000,000Kcal)

All industrial boilers comply with GB/T quality standards and are greatly appreciated in a variety of markets throughout the world.Well-equipped facilities and excellent quality control throughout all production stages to totally guarantee customers' satisfaction.

As a result of high quality boiler and outstanding customer service, we have gained a global sales network reaching America, Australia, Mexico, Vietnam, Russia, Kazakhstan, South Africa, Syria,South Africa, Ethiopia, etc.
