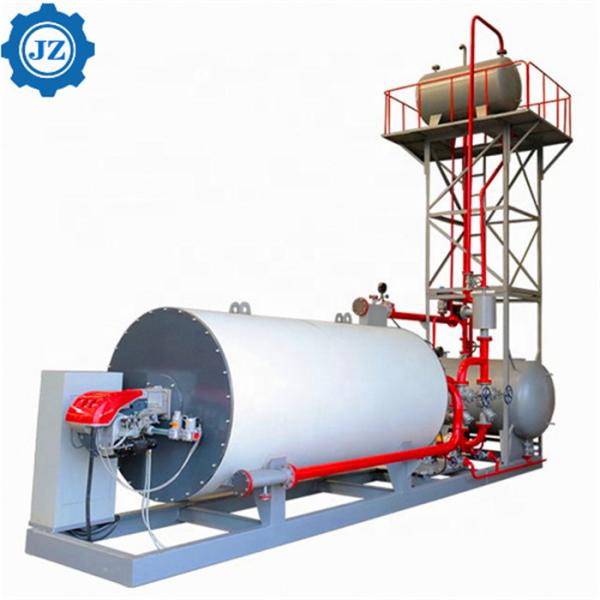

China Factory Supply Natural Gas Oil Fired Thermal Fluid Heater For
Chemical Industry
General introduction
Thermic Fluid Heater, thermal oil boiler
Heat Power:300,000-2,000,000 Kcal/H
Working Pressure :0.8 Mpa
Fuel :light oil,heavy oil,diesel
Application : textile printing and dyeing, plastic and rubber,
paper industry, wood industry, building material, food industry
YY(Q)W series thermal oil boiler adopts horizontal chamber
combustion three-coil structure,and its body is composed of outer
coil,middle coil,inner coil and rear coil. It is widely applied for
oil chemical industry, chemical fiber industry, wood processing
industry, paper making industry, building materials industry, food
industry,etc.
The thermal oil heater is a kind of special industrial furnace
which uses diesel oil as the fuel, the furnace takes heat carrier
oil as medium and uses the hot oil circulating pump force the
medium to make liquid circulation; then the thermal energy will be
transmitted to the devices and back to the furnace to be reheated.
This thermal Oil Boiler have advanced program control system,
equipped with liquid level controller, pressure controller,
temperature controller, and alarms to make sure the boiler work
orderly and safe. So it is a kind of safe boiler with high
efficiency and low power consumption.
Main features of industrial thermal oil boiler
1, larger coil combustion chamber can make the combustion in low
temperature and reduce the nitrogen oxides emissions with the
characters of energy saving and environmental protection.
2, the thermal oil heater structure increases the thermal
efficiency. And the high-density ring tube design structure can
also reduce the occupation space.
3. The reasonable circulation section structure of multi-pass heat
transfer ensure the thermal oil flow load uniform and the operation
stable
4, complete control system with warning system, easy operation,
safe operation.
5. Spiral coil inside and outside the furnace is composed of many
small diameter tube with the advantage of good performance thermal
expansion and low pressure.
6, The output (oil) temperature can be accurately controlled.
Medium temperature, pressure and smoke temperature protection can
also be controlled.
The thermal oil heaters in assembly structure is easy for
installation by just connecting system devices. Intelligent control
system makes heater operation control easy. Controller with screen
display has auto igniting, burning, circulation pumps control,
alarm and other control functions.
Thermal oil boiler are insulated with rock wool, whose thickness of
which is 100 mm to minimize heat loss and the rock wool is covered
with embossed metal sheet, whose thickness of which is 0.8 mm.
Technical Specification
| Model No. | Thermal power(kcal/h) | Heating efficiency (%) | Max. working temp.(℃) | Medium circulation(M3/H) | Transport size (mm) | Weight (Kg) |
| YY(Q)W-120Y(Q) | 10*104 | ≥92.26 | 340 | 12.5 | Φ1060*2045 | 1215 |
| YY(Q)W-240Y(Q) | 20*104 | ≥92.26 | 340 | 18 | Φ1020*1980 | 1355 |
| YY(Q)W-350Y(Q) | 30*104 | ≥92.26 | 340 | 30 | Φ1212*2310 | 1590 |
| YY(Q)W-500Y(Q) | 40*104 | ≥92.26 | 340 | 30 | Φ1212*2730 | 1680 |
| YY(Q)W-700Y(Q) | 60*104 | ≥92.26 | 340 | 60 | Φ1400*3410 | 2715 |
| YY(Q)W-900Y(Q) | 80*104 | ≥92.26 | 340 | 80 | Φ1616*3400 | 3142 |
| YY(Q)W-1200Y(Q) | 100*104 | ≥92.26 | 340 | 100 | Φ1616*4000 | 3660 |
| YY(Q)W-1400Y(Q) | 120*104 | ≥92.26 | 340 | 100 | Φ1820*4905 | 5420 |
| YY(Q)W-2000Y(Q) | 160*104 | ≥92.26 | 340 | 100 | Φ1840*4950 | 7850 |
| YY(Q)W-2400Y(Q) | 200*104 | ≥92.26 | 340 | 160 | Φ2060*4700 | 8850 |
Installation drawing
Scope of application:
| No. | industry | usage |
| 1 | Chemical industry | polymerization industry,oil industry,reaction
tank,distillation,enrichment, oil chemical industry, industry,
polymerization reaction cans, distillation, concentration |
| 2 | Plastic industry | plastic foam and squeeze to finalize the design, |
| 3 | Textile industry | resin stenters,dyeing machine and the dry room,high temperature
machine,roller |
| 4 | Rubber industry | cooking,dry,vegetable oil refining |
| 5 | Wood industry | heating to finalize the design of chipboard,sandwich plate,wamu
board,fiber |
| 6 | Paper industry | multi-layer cardboard of packed carton box,dying and desiccation |
| 7 | Others | heating of metal electroplating slot,coating
condensation,drying,distillation of pharmaceutical
industry,reduction,concentration,dehydration,air conditioning
industry,etc |
