1 Ton/H Horizontal Oil Or Gas Fired Steam Boiler For Hospital, School

Ask Lasest Price
Brand Name :	Jinzhen Boiler
Model Number :	WNS1-1.25-YQ
Certification :	IS0900
Price :	Negotiable
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	80 set per month
Delivery Time :	5-8 working days

Add to Cart

Product Details
Company Profile

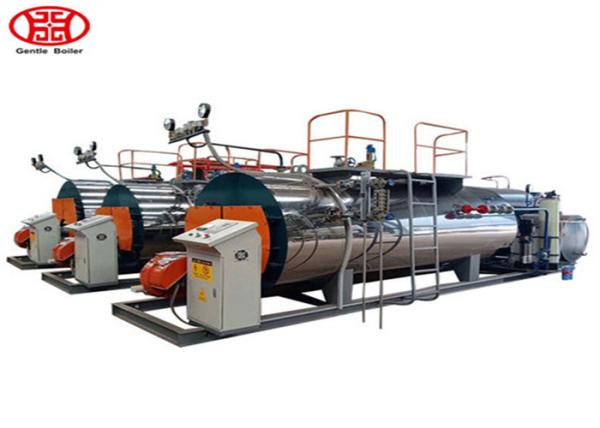

1 Ton/H Horizontal Oil Or Gas Fired Steam Boiler For Hospital, School

WNS series oil& gas fired steam boiler adopts horizontal three-pass wet-back structure,, equipped with international first-level brand burners and valve groups, and independently developed high-matching PLC control system to realize muitiple linkages.

Rated steam capacity:0.5ton-20ton/h;

Fuel: natural gas, diesel, heavy fuel oil, Ipg, Ing, cng, biogas, etc;

Rated steam pressure:1.0Mpa(10bar),1.25Mpa(13bar),1.6Mpa(16bar),2.5Mpa(25bar);

Main features

1. Boiler proprietary technology

Full wet backburn chamber, backburn chamber and back tube plate butt joint, boiler full butt welding, stress, more reliable quality.

2, large diameter corrugated furnace

The boiler combustion chamber is composed of a large diameter full ripple furnace with large combustion space, complete fuel combustion, effective heat absorption expansion and large radiation heating surface.

3. Sufficient heat

The heating area of the boiler is designed and configured according to ≥25m2/ steam ton, fully absorbing effective heat, low smoke exhaust temperature, small heat loss, ensuring sufficient output and efficiency

4. High quality steam

Large pot shell diameter, large water capacity, strong adaptability to load changes, stable output;The steam space volume is large, the net distance between the soda interface and the steam outlet is high enough, and the steam humidity is low.

5. Safe precipitation time is sufficient

The boiler combustor is arranged in a low position, the water level is determined in accordance with the regulations, and the water level fluctuation time is strictly in accordance with the international general norms and standards, with sufficient safe precipitation space, to ensure the operation safety of the boiler.

Technical Parameter

Model	Rated evaporation capacity (t/h)	Rated steam pressure (Mpa)	Thermal efficiency (％)	Fuel consumption		Overall dimension (m)	Weight (t)	Body Heating Area (m²)
Model	Rated evaporation capacity (t/h)	Rated steam pressure (Mpa)	Thermal efficiency (％)	Light oil (Kg/h)	Natural gas (Nm³/h)	Overall dimension (m)	Weight (t)	Body Heating Area (m²)
WNS1-0.7/1.0-Y(Q)	1	0.7/1.0	>90	66.5	75	3.6×2.0×2.0	4	25
WNS2-1.0/1.25-Y(Q)	2	1.0/1.25	>90.2	133	150	4.8×2.5×2.46	8	60
WNS4-1.0/1.25-Y(Q)	4	1.0/1.25	>91	266	300	5.8×2.85×2.8	13	113
WNS6-1.25/1.6-Y(Q)	6	1.25/1.6	>91.5	399	450	7.25×3.1×3.15	19	181
WN8-1.25/1.6-Y(Q)	8	1.25/1.6	>91.6	532	600	7.45×3.26×3.2	22.6	190
WNS15-1.25/1.6-Y(Q)	15	1.25/1.6	>91.8	997	1125	8.7×3.7×3.5	34	346
WNS20-1.25/1.6-Y(Q)	20	1.25/1.6	>92	1204	1418	10×3.6×4.0	45	467
Note: Parameter is for reference only, we can design the boilers based on customers’ needs

Free-Installation

Before the shipment, complete boiler system is well skid-mounted on the basement, also we have done the pipe(valves) connection and wire connection. After receiving the boiler, no need installation/ assembly. Just join the boiler to water/ gas/ electricity. Comparing with other traditional boilers in the market, our boiler does save lots of cost/ energy/ time in installation. The additional, the entire boiler system is portable.

1 Ton/H Horizontal Oil Or Gas Fired Steam Boiler For Hospital, School

Application

Natural gas fired steam boiler is being widely used in hospitals, schools, textile mills, garment factories, large supermarket, garment factories, dyeing factory, hotel, dining room, dining room, swimming pool, food factory, beverage factory, soy products, meat products factory, cannery, brewery, pharmaceutical factory, packing plants, building materials factory, paint factory and other places of the enterprises and institutions

FAQ

1. What are the available fuel for the oil gas fired boiler?

Oil gas fired boiler could burn both liquid fuel and gaseous fuel. The liquid fuel could be heavy oil, light oil, diesel, furnace oil, bunker oil, LPG (liquefied petroleum gas), etc. The gaseous fuel could be natural gas, city gas, bio-gas, etc.

2. Whether the boiler can burn dual fuel or multi-fuel?

Gentle boiler have oil burner, gas burner, and oil&gas dual fuel burner, we can offer the specific burner based on customers’ requirement.

3. What is the texture of spirally corrugated tube?

The texture of spirally corrugated tube is 20#.

4. The brand of burner?

The brands of burner are Italy Baltur, Rellio, Elco, etc.

5. What is the thickness of combustion chamber?

the thickness of corrugated furnace is different based on working pressure and furnace diameter, generally, the thickness is between 10~18mm, large combustion space, and combustion sufficient.

6. What is the advantages of fire tube boiler?

This fire tube boiler has compact structure and convenient operation, strong load adaptability, lower water quality requirement, and the failure rate of it is lower than 0.1!

7. Details of electric control cabinet.

Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.

8. What is the inlet pressure of gas burner?

The inlet gas pressure is different for different capacity boiler, for example, the pressure for 2 ton steam capacity boiler is about 8~10KPa, while for 4 ton steam capacity boiler is about 18~20KPa.
