300,000-2,000,000 Kcal/H Horizontal Oil/Gas Fired Thermal Fluid
Heaters/Boilers For Oil Refinery industry
YY(Q)W series thermal fluid boiler heater has skid-mounted design
and full automatic control system. The heat carrier is thermal
fluid oil, boiler's working pressure ≤1.0MPa, working temperature
≤310℃. Adopting three-pass structure, 3 layer corrugated coil
rings.
Technique data:
Rated thermal power is 0.12Mw (10×104kcal/h) to 14Mw
(1200×104kcal/h).
Design pressure is equal to or greater than 1 Mpa.
Operating temperature is equal to or less than 350°C.
Thermal efficiency is between 60% and 85% according to the
difference of boiler type.
| Product Name | Gas Fired Thermal Fluid Boiler |
| Type | Forced Circulation |
| Capacity | 1-20T/h |
| Structure | Coil Pipe |
| Pressure | Low Pressure |
| Applicable Fuel | Natural Gas,LPG,CNG,LNG,etc |
| Output | Thermal Power |
| Dimension(L*W*H) | Depends on boiler capacity |
| Weight | 3-50ton |
| After-sales Service Provided | Engineers available to service machinery overseas |
| Boiler operation style | Automatic Bruner |
| Steam temperature | 280-320℃ |
| Boiler pressure | 1.25/2.5Mpa |
| Application field | Factory, Chemical industry |
The Gas/Oil Fired thermal oil boiler auxiliaries :
oil fired thermic fluid heater hot oil boiler
| Name | Quantity(unit/piece) |
| main body of thermal oil boiler | 1 |
| Oil Circulating pump | 1 |
| Gas/oil burner | 1 |
| oil filling pump | 1 |
| Filter | 1 |
| Electric control cabinet | 1 |
| high level oil storage tank | 1 |
| Low level oil storage tank | 1 |
| Valves and gauges | one batch for whole system |
Free-Installation
The complete boiler system is well skid-mounted on the basement,
also we have done the pipe(valves) connection and wire connection.
After receiving the boiler, user no need to do installation, just
filling the thermal fluid oil, join the fuel and electricity.
Entire boiler system is portable.

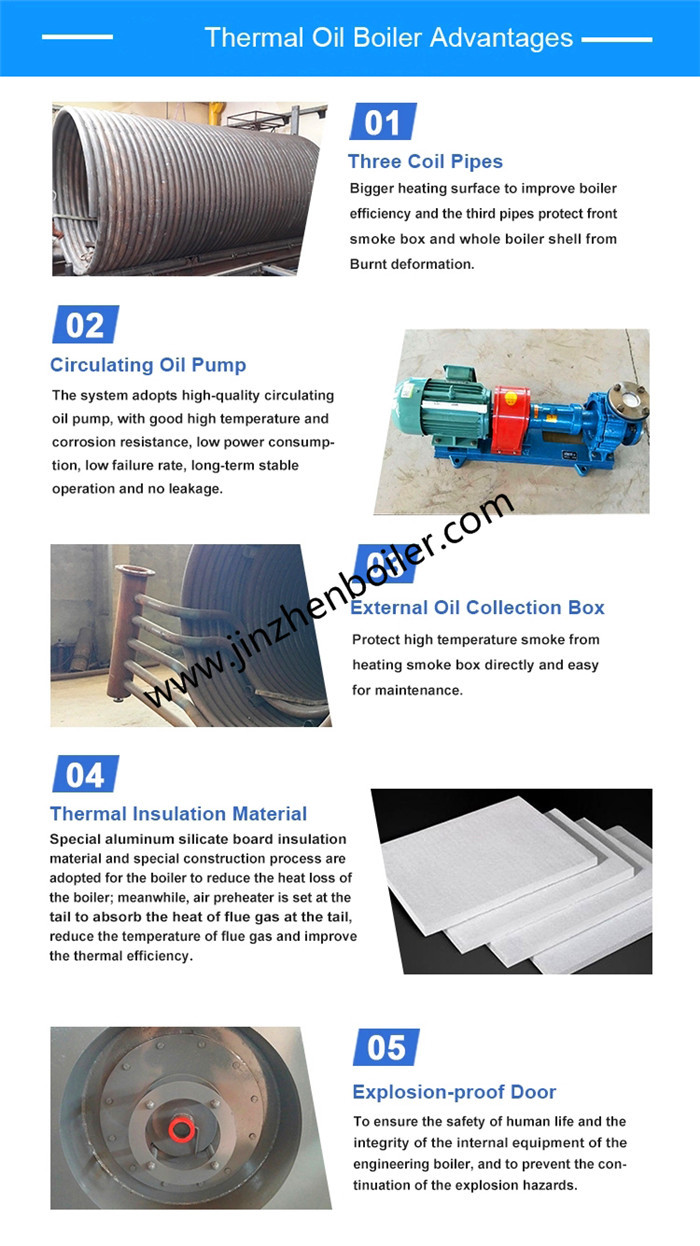

Thermal oil System Features
1. High Quality and Reliable Oil Burner.
High combustion efficiency and environmental protection.
2. Excellent coil design.
The spiral pipes are made of small diameter multi-head steel tubes,
good thermal expansibility, low stress, safe and reliable.
3. Large Diameter Furnace.
Large radiation heating area, increase thermal efficiency and
reduce the NOx emission.
4. High Thermal Efficiency.
1) Adopts three pass heating system, improve the heat utilization
efficiency.
2) Uses aluminium silicate board for heat preservation, high
thermal shielding efficiency.
3) By equipping with economizer, make full use of the heat of flue
gas.
5. High Quality boiler auxiliaries and multiple safety protection
devices.
(pressure controller, pressure transmitter, water level alarm,
safety valve, etc.)
6. Excellent Automatic System.
Adopts PLC full automatic intelligent control system, to ensure the
safe operation.
7. Convenient Maintenance
1)There are maintenance holes on the boiler, convenient for boiler
internal installation, inspection and clean.
2)The explosion proof equipment has the fire sight glass and
inspection gallery, it is convenient for furnace checking and
maintaining.
Boiler Application
industrial thermal oil heater for non-woven hot rolling mill
heating
It can be applied in the following areas: high-temperature shaping,
plate heating, rubber, drying, dyeing and printing, chemical
industry, plywood production, rolled water-proof material
production, asphalt heating, non-woven hot-rolled machine, fiber,
glass hot press machine, reactor, mould, drying room, oven, and
other heating industries.
