1400kw Horizontal Gas Oil Fired Thermal Oil Heaters For Hot Oil
Heating Systems
High Quality
YY(Q)W series thermal fluid boiler heater has skid-mounted design
and full automatic control system. The heat carrier is thermal
fluid oil, boiler's working pressure ≤1.0MPa, working temperature
≤310℃. Adopting three-pass structure, 3 layer corrugated coil
rings.
Free-Installation
The complete boiler system is well skid-mounted on the basement,
also we have done the pipe(valves) connection and wire connection.
After receiving the boiler, user no need to do installation, just
filling the thermal fluid oil, join the fuel and electricity.
Entire boiler system is portable.
Excellent Structure
Free-Assembly,Portable System,Three Fire-Passes,New Wet-Back
Design,Corrugated Furnace, Fire-tube
Simple Operation
Automatic PLC ON/OFF,Visible Oil Temperature,Visible Working
Pressure,Visible Exhaust-gas Temperature,Adjustable Oil Temp. ≤310℃
All thermal oil boilers are assembly structure which is easy for
installation by just connecting system device by pipes. Intelligent
system control of thermal oil fluid haters makes boiler operation
easier and more simple. Controller with imitation screen display
has auto igniting, burning, circulation pumps control, alarm, etc.
functions.
Thermal oil System Features
1. High Quality and Reliable Oil Burner.
High combustion efficiency and environmental protection.
2. Excellent coil design.
The spiral pipes are made of small diameter multi-head steel tubes,
good thermal expansibility, low stress, safe and reliable.
3. Large Diameter Furnace.
Large radiation heating area, increase thermal efficiency and
reduce the NOx emission.
4. High Thermal Efficiency.
1) Adopts three pass heating system, improve the heat utilization
efficiency.
2) Uses aluminium silicate board for heat preservation, high
thermal shielding efficiency.
3) By equipping with economizer, make full use of the heat of flue
gas.
5. High Quality boiler auxiliaries and multiple safety protection
devices.
(pressure controller, pressure transmitter, water level alarm,
safety valve, etc.)
6. Excellent Automatic System.
Adopts PLC full automatic intelligent control system, to ensure the
safe operation.
7. Convenient Maintenance
1)There are maintenance holes on the boiler, convenient for boiler
internal installation, inspection and clean.
2)The explosion proof equipment has the fire sight glass and
inspection gallery, it is convenient for furnace checking and
maintaining.
Technical Specification
| Model | Rated power(KW) | Design pressure (Mpa) | Medium outlet temperature(℃) | Thermal efficiency (%) | Overall dimension L×W×H
(mm) | Reference weight (t) |
| YY(Q)W-120Y(Q) | 120 | 1.1 | ≤350 | 75 | 1600×1020×1520 | 1.5 |
| YY(Q)W-1000Y(Q) | 1000 | 1.1 | ≤350 | 85 | 3300×1670×2486 | 5 |
| YY(Q)W-2400Y(Q) | 2400 | 1.1 | ≤350 | 85 | 5080×2200×3180 | 9.8 |
| YY(Q)W-3000Y(Q) | 3000 | 1.1 | ≤350 | 85 | 5983×2420×3404 | 15.5 |
| YY(Q)W-4700Y(Q) | 4700 | 1.1 | ≤350 | 85 | 7285×2570×3760 | 21.5 |
| YY(Q)W-6000Y(Q) | 6000 | 1.1 | ≤350 | 85 | 7800×3050×3800 | 25 |
| YY(Q)W-7000Y(Q) | 7000 | 1.1 | ≤350 | 85 | 8200×3050×3800 | 27.5 |
| YY(Q)W-10000Y(Q) | 10000 | 1.1 | ≤350 | 85 | 10000×3500×4000 | 32 |
| Notes: Parameter is for reference only,if any changes should follow
actual drawings. |

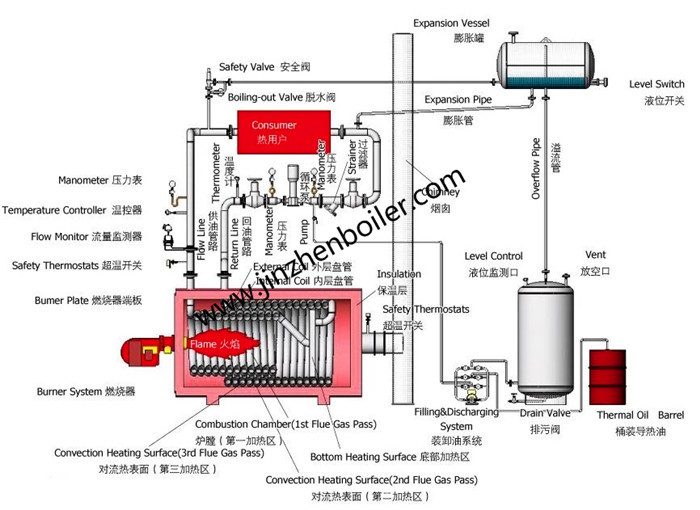

Thermal oil boiler system
Application of thermal oil system
The series of thermal oil heater is widely used in the following
industries:
l Petrochemical Industries:polymerization, melted, condensation,
distillation, removal H2.
l Oil industry:fat and acid distillation, grease decomposition,
concentrated, esterification, vacuum deodorizer, high-temperature
cooking, advanced salad oil.
l Synthetic fiber industry: polymerization, melt spinning,
extending; drying.
l Textile printing and dyeing industry: heat setting, hot melt
dyeing, melt bake calendering drying, high temperature stenter, oar
yarn.
l Plastics and rubber industry:hot pressing, hot cast,
vulcanization molding, calendering injection machine, plastic
mixer, conveyor dryer, screw extruder.
l Paper Industry: dry, corrugated paper processing, egg tray, food
cardboard drying, calendering machine, roller.
l Timber industry: multilayer plywood, fiberboard molding, plywood,
wood drying, steaming equipment.
l Building materials industry: road bitumen heating, gypsum board
drying, heating bitumen concrete, concrete elements curing, drying
equipment.
l Air-conditioning industry:industrial plants, residential and
hotel building heating.
l Detergent Industry: cooking boiler, autoclave, spray-washing
tower, a conveyorized dryer, lipolysis device distillation column.
l The automotive industry:the tunnel-type drying room, degreasing
baths, phosphate processing equipment.
l Electrical equipment industry: calendering machine, the platen
machines, vacuum pan, dryer.
6sets 150000kcal/h thermal oil boiler can be packed into one 20GP
2sets 200000kcal/h thermal oil boiler can be packed into one 20GP
2sets 300000kcal/h thermal fluid boiler can be packed into one 20GP
1 set 600000kcal/h hot oil boiler can be packed into one 20GP
1 set 1000000kcla/h hot oil boiler can be packed into one 20OP
1 set 1200000kcal/h to 3000000kcla/h can be packed into flat rack
