1200KW Horizontal Organic Heat Carrier Thermal Oil Boiler For
Melt-Blown Nonwoven And Maskproduction Line
This thermal oil boiler takes heat carries oil as medium and uses
the hot oil circulating pump force the medium to make liquid
circluation ,then the thermal energy will be transmitted to the
devices and back to furnace to be reheated. so the boiler can get
higher working temperature at low pressure ,and make a better usage
of heat , it is a kind of safe boiler with high efficiency and low
power consumption this series boiler have advinced program control
system, equiped with liquid level controller,pressure controller
,temperature controller ,and alarms to make sure the boiler work
orderly and safe.so it is a kind of safe boiler with high
efficiency and low power consumption
Heat Transfer Fluid heaters (hot oil heater) to oil (gas) as fuel
to oil as medium, using hot oil circulation pumps mandatory medium
for liquid circulation, the energy delivery device and then return
to Heat re-heating furnace with low pressure in the working
temperature was high, and can run on medium high-precision control.
System with high thermal efficiency, due to the overall module
installation, operation and easy maintenance, is a safe, efficient,
energy saving ideal choice for heating equipment.
Fuel oil (gas) from the burner flame after ignition temperature
generated within the coil to form into the radiation heating
surface, through the internal coil rotated by 180 into the rear
forward, the foreign control of the mezzanine area convection
heating surface. Then enter the upper mezzanine, the outer coil of
the second mezzanine area, in the second mezzanine area to the rear
of the chimney into the atmosphere.
Technique data:
Rated thermal power is 0.12Mw (10×104kcal/h) to 14Mw
(1200×104kcal/h).
Design pressure is equal to or greater than 1 Mpa.
Operating temperature is equal to or less than 350°C.
Thermal efficiency is between 60% and 85% according to the
difference of boiler type.
Technical Parameters:
| Model No. | Thermal power(kcal/h) | Heating efficiency (%) | Max. working temp.(℃) | Medium circulation(M3/H) | Transport size (mm) | Weight (Kg) |
| YY(Q)W-120Y(Q) | 10*104 | ≥92.26 | 340 | 12.5 | Φ1060*2045 | 1215 |
| YY(Q)W-240Y(Q) | 20*104 | ≥92.26 | 340 | 18 | Φ1020*1980 | 1355 |
| YY(Q)W-350Y(Q) | 30*104 | ≥92.26 | 340 | 30 | Φ1212*2310 | 1590 |
| YY(Q)W-500Y(Q) | 40*104 | ≥92.26 | 340 | 30 | Φ1212*2730 | 1680 |
| YY(Q)W-700Y(Q) | 60*104 | ≥92.26 | 340 | 60 | Φ1400*3410 | 2715 |
| YY(Q)W-900Y(Q) | 80*104 | ≥92.26 | 340 | 80 | Φ1616*3400 | 3142 |
oil fired thermic fluid heater hot oil boilerThe Gas/Oil Fired
thermal oil boiler auxiliaries :
| Name | Quantity(unit/piece) |
| main body of thermal oil boiler | 1 |
| Oil Circulating pump | 1 |
| Gas/oil burner | 1 |
| oil filling pump | 1 |
| Filter | 1 |
| Electric control cabinet | 1 |
| high level oil storage tank | 1 |
| Low level oil storage tank | 1 |
| Valves and gauges | one batch for whole system |

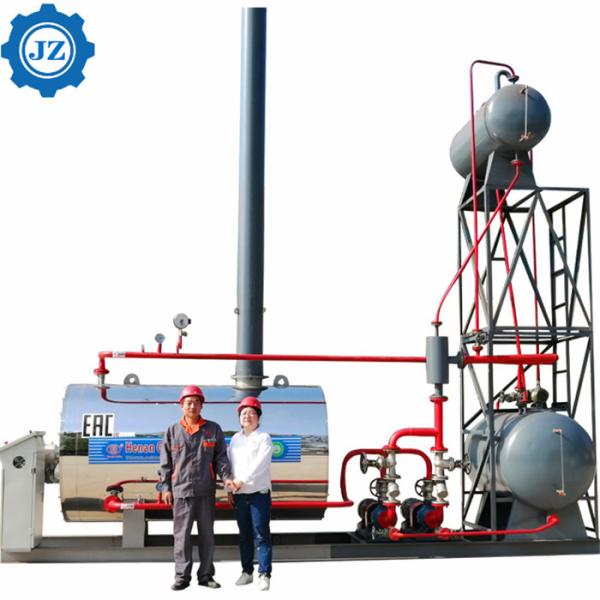

Free-Installation
The complete boiler system is well skid-mounted on the basement,
also we have done the pipe(valves) connection and wire connection.
After receiving the boiler, user no need to do installation, just
filling the thermal fluid oil, join the fuel and electricity.
Entire boiler system is portable.
Boiler Features
1. Good sealing, large and flexible space, improving the service
life of the burner.
2. The boiler adopts a three-layer close coil pipe structure, with
three-pass flue gas and higher heat conversion efficiency.
3. The boiler has a compact structure, small floor area, good raw
materials, stable, safe and reliable boiler.
4. Multiple interlocking protection systems make the boiler run
more safely.
5. High-temperature control accuracy and good combustion effect.
The air preheater can effectively improve the thermal efficiency of
the boiler to more than 95%.
6. PLC automatic control function can save human resources and
extend the service life of the equipment, The material selection is
superior. Ten qualified manufacturers are selected from all over
the world, and then four higher quality products are selected from
ten. After each batch of physical and chemical tests, the
production can be carried out to ensure that the material
completely meets the standard and is superior to the product.
7.According to the actual situation of the user's location, the
flexible design enables the user to save the operation cost and run
more safely and stably, but the user has no worries. And According
to the use of users, our professional user designers will choose
the most suitable products for users.
Boiler Application
industrial thermal oil heater for non-woven hot rolling mill
heating
It can be applied in the following areas: high-temperature shaping,
plate heating, rubber, drying, dyeing and printing, chemical
industry, plywood production, rolled water-proof material
production, asphalt heating, non-woven hot-rolled machine, fiber,
glass hot press machine, reactor, mould, drying room, oven, and
other heating industries.
