12million Kcal 1200000 Kcal LPG Gas Fired Thermal Oil Heater Boiler Used For Plywood Plant

YYW series oil fired thermal oil boiler designed with three passes coiled tubes, the tail heat surface form the wet back type smoke-transfer chamber structure, to improve heat efficiency. large access door design of boiler's front and rear panel,hammer paint coating, which makes the inspection convenient,elegant outside.

The thermal oil boiler can be used for asphalt mixing plant, bitumen melting machine, bitumen emulsion machine, also can be used for bitumen modifying machine. The bitumen can be heated quickly by thermal oil, and the boiler can be automatic control by setting the temperature limit.

Natural gas or Diesel oil fired thermal oil boiler

1. These are the horizontal type organic heat medium heaters circulating through mandatory liquid.

2. Its heating surface consists of the closely-arranged coils in three sides of inner, middle part and exterior (inner and exterior), and the large-capacity boiler is equipped with “the ceiling coils” so as to ensure the compact structure. The inside of the inner coils (the inside of the inner coils and central coils among the multilayer coils) work as the radiant heating surface, and the external surface of the inner coils (the outside of the middle coils among the multilayer coils) and exterior coils from the convection heating surface.

3. Fuel burns and gives out heat in the inner coils (the middle coils among the multilayer coils); after radiant heating surface absorbing a lot of heat, the high temperature gas enters into the convection heating surface to transfer heat and then discharged out of the furnace through the exhaust gas outlet.

4. With the automatic control instruments and instrumentation all in readiness,the boiler is safe,reliable and easy operation.

Technical Parameters

All boilers are assembly structure which is easy for installation by just connecting system device by pipes. Intelligent system control makes boiler operation easier and more simple. Controller with imitation screen display has auto igniting, burning, circulation pumps control, alarm, etc. functions.

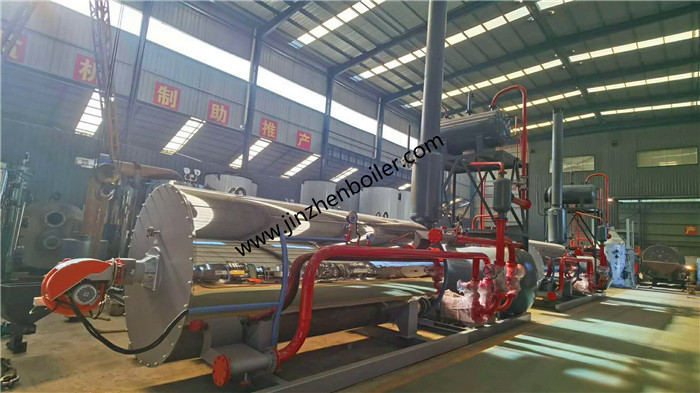

Full set fuel (gas) thermal oil boiler is consist of Horizontal boiler body, Boiler Burner (imported famous brand), Instruments, Chimney, Circulating Pump, Oil Filling Pump,Expansion Tank, Oil Storage Tank, Oil Gas Separator,Electric Control Cabinet (Chinese & English Version), Economizer (Optional),etc.

Thermal Oil Boiler Application
1. Petrochemical Industries.

2. Oil processing industry.

3. Synthetic fiber industry.

5. Textile printing and dyeing industry.

6. Plastics and rubber industry.

7. Paper processing Industry.

8. Timber industry.

9. Building materials industry.

10. Air-conditioning industry.

11. Detergent Industry

12. The automotive industry.

13. Electrical equipment industry.

1.one set YYQW-350 model gas fired thermal oil boiler should load in one 40HQ

2.one set YYQW-500 model oil fired thermal oil boiler price should load in one 40HQ

3.one set YYQW-700 model 600000kcal thermal oil boiler should load in one 40HQ

4.one set YYQW-1200 model thermal oil boiler price should load in one 40HQ

5.one set YYQW-1400 model thermal oil heater boiler should load in one 40HQ

6.one set YYQW-1900 model thermal oil furnace boiler price should load in one 40HQ

7.large capacity of thermal oil boiler, like YYQW-2500, YYQW-3500 gas boiler should load in 40FR

Henan Jinzhen Boiler Co., Ltd is a professional industrial boiler manufacturer that specialized in the environment-friendly steam boiler, hot water boiler, thermal oil boiler and pressure vessels’ design, manufacture, installation, maintenance. Jinzhen Boiler factory is located in beautiful Zhoukou City which nearby Zhengzhou Airport, Shangqiu Railway Station, gets convenient traffic.We have over 6,000sq.m. building area, 105 employees, annual sales amount exceeds 25,000,000USD which includes 25% export amount in worldwide.

Jinzhen boilers include more than 150 kinds. There are:
(1) DZL coal/biomass fired steam boiler(1-20ton/h;)
(2) DZH wood fired steam boiler(0.5-6ton/h;)
(3) SZL biomass/coal fired steam boiler(4-25ton/h;)
(4) WNS series gas/oil fired steam boiler(0.5-20ton/h;)
(5) YLL(W) series coal/biomass fired thermal oil boiler(150,000-16,000,000Kcal)
(6) YY(Q)W gas /oil fired thermic fluid heater(150,000kcal-12,000,000Kcal)

All industrial boilers comply with GB/T quality standards and are greatly appreciated in a variety of markets throughout the world.Well-equipped facilities and excellent quality control throughout all production stages to totally guarantee customers' satisfaction.

As a result of high quality boiler and outstanding customer service, we have gained a global sales network reaching America, Australia, Mexico, Vietnam, Russia, Kazakhstan, South Africa, Syria,South Africa, Ethiopia, etc.
