1MW 1000000kcal 1200kw Fuel Diesel Gas Organic Heat Carrier Coil
Heater Thermal Oil Boiler For Cement Plant

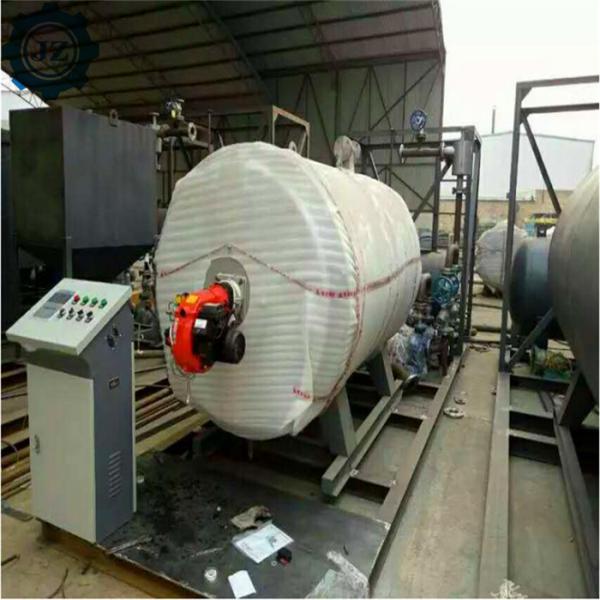

YY(Q)W series thermal fluid boiler heater has skid-mounted design
and full automatic control system. The heat carrier is thermal
fluid oil, boiler's working pressure ≤1.0MPa, working temperature
≤310℃. Adopting three-pass structure, 3 layer corrugated coil
rings.
Free-Installation
The complete boiler system is well skid-mounted on the basement,
also we have done the pipe(valves) connection and wire connection.
After receiving the boiler, user no need to do installation, just
filling the thermal fluid oil, join the fuel and electricity.
Entire boiler system is portable.
Technique data:
Rated thermal power is 0.12Mw (10×104kcal/h) to 14Mw
(1200×104kcal/h).
Design pressure is equal to or greater than 1 Mpa.
Operating temperature is equal to or less than 350°C.
Thermal efficiency is between 60% and 85% according to the
difference of boiler type.
Characteristics of oil-fired heat-conducting oil boiler
1. The seal between the burner interface and the tube plate adopts
a labyrinth type, which has good sealing performance and large
expansion space, which prolongs the service life of the burner and
improves the thermal efficiency.
2. The thermic fluid heater adopts two-coil structure, three-pass
flue gas, compact design, saving space, adding air preheater, and
thermal efficiency up to 92% or more.
3. Various operation safety protections make the boiler operation
safer and simpler, with high temperature control accuracy (±1℃) and
good combustion effect.
4. The automatic control function is adopted to prolong the service
life of the equipment while saving human resources.
5. Hot Oil Boiler can obtain a higher working temperature under a
lower operating pressure, and has the technical characteristics of
low pressure and high temperature.
6. It has complete operation control and safety monitoring devices,
easy to operate, safe and reliable.
7. It can realize stable heating and precise temperature adjustment
to meet different requirements
8. The thermal oil boiler has good thermal insulation, adopts
high-efficiency thermal insulation materials and advanced
construction technology, and has low heat dissipation loss on the
furnace wall.
Technical Parameters:
| Model No. | Thermal power(kcal/h) | Heating efficiency (%) | Max. working temp.(℃) | Medium circulation(M3/H) | Transport size (mm) | Weight (Kg) |
| YY(Q)W-120Y(Q) | 10*104 | ≥92.26 | 340 | 12.5 | Φ1060*2045 | 1215 |
| YY(Q)W-240Y(Q) | 20*104 | ≥92.26 | 340 | 18 | Φ1020*1980 | 1355 |
| YY(Q)W-350Y(Q) | 30*104 | ≥92.26 | 340 | 30 | Φ1212*2310 | 1590 |
| YY(Q)W-500Y(Q) | 40*104 | ≥92.26 | 340 | 30 | Φ1212*2730 | 1680 |
| YY(Q)W-700Y(Q) | 60*104 | ≥92.26 | 340 | 60 | Φ1400*3410 | 2715 |
| YY(Q)W-900Y(Q) | 80*104 | ≥92.26 | 340 | 80 | Φ1616*3400 | 3142 |
oil fired thermic fluid heater hot oil boilerThe Gas/Oil Fired
thermal oil boiler auxiliaries :
| Name | Quantity(unit/piece) |
| main body of thermal oil boiler | 1 |
| Oil Circulating pump | 1 |
| Gas/oil burner | 1 |
| oil filling pump | 1 |
| Filter | 1 |
| Electric control cabinet | 1 |
| high level oil storage tank | 1 |
| Low level oil storage tank | 1 |
| Valves and gauges | one batch for whole system |
This thermal oil boiler takes heat carries oil as medium and uses
the hot oil circulating pump force the medium to make liquid
circluation ,then the thermal energy will be transmitted to the
devices and back to furnace to be reheated. so the boiler can get
higher working temperature at low pressure ,and make a better usage
of heat , it is a kind of safe boiler with high efficiency and low
power consumption this series boiler have advinced program control
system, equiped with liquid level controller,pressure controller
,temperature controller ,and alarms to make sure the boiler work
orderly and safe.so it is a kind of safe boiler with high
efficiency and low power consumption .
Boiler Application
industrial thermal oil heater for non-woven hot rolling mill
heating
It can be applied in the following areas: high-temperature shaping,
plate heating, rubber, drying, dyeing and printing, chemical
industry, plywood production, rolled water-proof material
production, asphalt heating, non-woven hot-rolled machine, fiber,
glass hot press machine, reactor, mould, drying room, oven, and
other heating industries.
