1200kw Fully Automatic Natural Gas Oil Fired Hot Oil Heater Thermal
Oil Boiler For Coating Plant
Thermic Fluid Heater, thermal oil boiler
Heat Power:300,000-2,000,000 Kcal/H
Working Pressure :0.8 Mpa
Fuel :light oil,heavy oil,diesel
Application : textile printing and dyeing, plastic and rubber,
paper industry, wood industry, building material, food industry
YY(Q)W series oil fired thermal oil boiler is an safe and energy
saving boiler with working characteristics of low working pressure
(0.8 MPa) and high temperature (330℃).
The heat carrier is heat conduction oil, the circulating pump force
heat transfer medium circulating in liquid phrase, and transfer
heat to heat user equipment, then return to the heating furnace for
reheating. Jinzhen Boiler has a mature R&D and design team,
could customize the boilers based on customers’ requirement.
Boiler Features
1. The top of the thermal boiler(hot oil boiler) is equipped with a
top coil tube, which effectively prevents the flame from directly
radiating the rear wall. At the same time, under the premise of a
compact structure, it increases the radiation heating area and
improves the boiler's thermal efficiency.
2. The use of micro positive pressure operation effectively
improves the combustion intensity of the furnace, makes the volume
of the boiler with the same capacity smaller, and eliminates the
air leakage of the furnace and flue of the boiler, and improves the
thermal efficiency of the boiler.
3. Using advanced EDA technology, detailed calculation of furnace
body size, flue gas flow rate, reasonable and full use of flame and
flue gas heat exchange to ensure reliable operation and sufficient
cooling of the boiler, and improve the boiler's thermal efficiency.
4. The use of high-efficiency condensation technology effectively
reduces the temperature of exhaust gas and improves the thermal
efficiency of the boiler.
5. Adopt reasonable structure design and excellent refractory and
heat insulation materials, greatly reduce the surface temperature
of the furnace body, make the surface temperature lower than 50
degrees (higher than the national standard), reduce heat loss, and
improve the thermal efficiency of the boiler.
6.Adopt a new design to reduce the emission of harmful substances
during fuel combustion, meet the national environmental protection
standards, especially reduce the emission of nitrogen oxides, and
meet the national low nitrogen emission standards.
Technical Parameters
| Model No. | Thermal power(kcal/h) | Heating efficiency (%) | Max. working temp.(℃) | Medium circulation(M3/H) | Transport size (mm) | Weight (Kg) |
| YY(Q)W-120Y(Q) | 10*104 | ≥92.26 | 340 | 12.5 | Φ1060*2045 | 1215 |
| YY(Q)W-240Y(Q) | 20*104 | ≥92.26 | 340 | 18 | Φ1020*1980 | 1355 |
| YY(Q)W-350Y(Q) | 30*104 | ≥92.26 | 340 | 30 | Φ1212*2310 | 1590 |
| YY(Q)W-500Y(Q) | 40*104 | ≥92.26 | 340 | 30 | Φ1212*2730 | 1680 |
| YY(Q)W-700Y(Q) | 60*104 | ≥92.26 | 340 | 60 | Φ1400*3410 | 2715 |
| YY(Q)W-900Y(Q) | 80*104 | ≥92.26 | 340 | 80 | Φ1616*3400 | 3142 |
| YY(Q)W-1200Y(Q) | 100*104 | ≥92.26 | 340 | 100 | Φ1616*4000 | 3660 |
| YY(Q)W-1400Y(Q) | 120*104 | ≥92.26 | 340 | 100 | Φ1820*4905 | 5420 |
| YY(Q)W-2000Y(Q) | 160*104 | ≥92.26 | 340 | 100 | Φ1840*4950 | 7850 |
Thermal oil boiler is a kind of energy saving heating equipment, it
can get a high temperature (around 350℃) under a low working
pressure (0.8MPa). The working medium is hot oil, a circulating
pump forced hot oil circulating in liquid phrase, and transfer heat
to heat user equipment, then return back to the boiler for
reheating. The fuel could be both oil and gas, based on the
characteristics of fuel, the hot oil boiler could be equipped with
different burners.

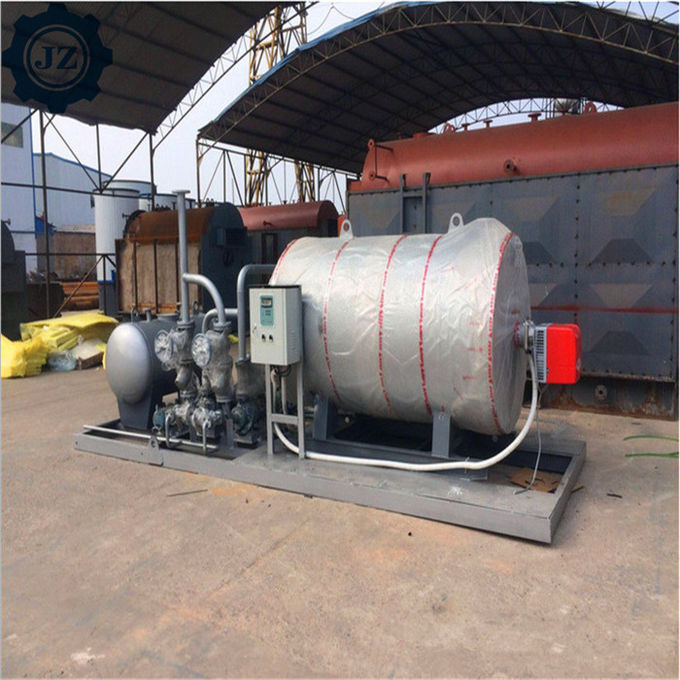

Full set fuel (gas) thermal oil boiler is consist of Horizontal
boiler body, Boiler Burner (imported famous brand), Instruments,
Chimney, Circulating Pump, Oil Filling Pump,Expansion Tank, Oil
Storage Tank, Oil Gas Separator,Electric Control Cabinet (Chinese &
English Version), Economizer (Optional),etc.
Thermal Oil Boiler For Hot Press takes diesel, gas, town gas as
fuel. Three pass and wet back structure enhance it's thermal
efficiency and lower flue gas temperature. Thicker insulated
material layer makes radiating at minimum limit.
All boilers are assembly structure which is easy for installation
by just connecting system device by pipes. Intelligent system
control makes boiler operation easier and more simple. Controller
with imitation screen display has auto igniting, burning,
circulation pumps control, alarm, etc. functions.
The Gas/Oil Fired thermal oil boiler auxiliaries
oil fired thermic fluid heater hot oil boiler
| Name | Quantity(unit/piece) |
| main body of thermal oil boiler | 1 |
| Oil Circulating pump | 1 |
| Gas/oil burner | 1 |
| oil filling pump | 1 |
| Filter | 1 |
| Electric control cabinet | 1 |
| high level oil storage tank | 1 |
| Low level oil storage tank | 1 |
| Valves and gauges | one batch for whole system |
Application
industrial thermal oil heater for non-woven hot rolling mill
heating
It can be applied in the following areas: high-temperature shaping,
plate heating, rubber, drying, dyeing and printing, chemical
industry, plywood production, rolled water-proof material
production, asphalt heating, non-woven hot-rolled machine, fiber,
glass hot press machine, reactor, mould, drying room, oven, and
other heating industries.
FAQ
1.What is the highest temperature that thermal oil heater could
achieve?
thermal oil heater can reach as high as 330℃, and working under low
pressure (<1.0MPa)
2.What are the heat-resistance temperature of grate and furnace?
The heat resistance temperature of grate is related to the grate
material, the highest temperature could be as high as 1100℃, and
the lower temperature could be 700℃.
The highest heat resistance temperature of furnace could be about
1700℃~1800℃.
3.What is conduction oil/ hot oil / heat transfer fluid?
Conduction oil has a high boiling point, it usually used for the
industries that need the temperature of 150~350℃, to instead of
steam. The hot oil has the advantages of high transfer efficiency,
fast heat transfer, and good thermal stability.
6sets 150000kcal/h thermal oil boiler can be packed into one 20GP
2sets 200000kcal/h thermal oil boiler can be packed into one 20GP
2sets 300000kcal/h thermal fluid boiler can be packed into one 20GP
1 set 600000kcal/h hot oil boiler can be packed into one 20GP
1 set 1000000kcla/h hot oil boiler can be packed into one 20OP
1 set 1200000kcal/h to 3000000kcla/h can be packed into flat rack
