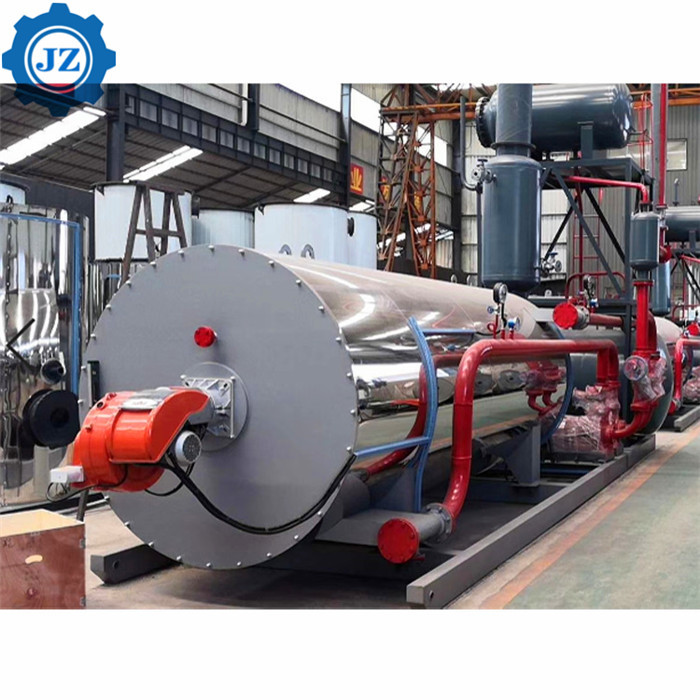

600000 Kcal 700kw Industrial Oil Gas Fired Thermal Fluid Heater Hot
Oil Boiler For Automotive Industry
YY(Q)W series oil fired thermal oil boiler is an safe and energy
saving boiler with working characteristics of low working pressure
(0.8 MPa) and high temperature (330℃).
The heat carrier is heat conduction oil, the circulating pump force
heat transfer medium circulating in liquid phrase, and transfer
heat to heat user equipment, then return to the heating furnace for
reheating. Jinzhen Boiler has a mature R&D and design team,
could customize the boilers based on customers’ requirement.
Technique data:
Rated thermal power is 0.12Mw (10×104kcal/h) to 14Mw
(1200×104kcal/h).
Design pressure is equal to or greater than 1 Mpa.
Operating temperature is equal to or less than 350°C.
Thermal efficiency is between 60% and 85% according to the
difference of boiler type.
Characteristics of oil-fired heat-conducting oil boiler
1. The seal between the burner interface and the tube plate adopts
a labyrinth type, which has good sealing performance and large
expansion space, which prolongs the service life of the burner and
improves the thermal efficiency.
2. The thermic fluid heater adopts two-coil structure, three-pass
flue gas, compact design, saving space, adding air preheater, and
thermal efficiency up to 92% or more.
3. Various operation safety protections make the boiler operation
safer and simpler, with high temperature control accuracy (±1℃) and
good combustion effect.
4. The automatic control function is adopted to prolong the service
life of the equipment while saving human resources.
5. Hot Oil Boiler can obtain a higher working temperature under a
lower operating pressure, and has the technical characteristics of
low pressure and high temperature.
6. It has complete operation control and safety monitoring devices,
easy to operate, safe and reliable.
7. It can realize stable heating and precise temperature adjustment
to meet different requirements
8. The thermal oil boiler has good thermal insulation, adopts
high-efficiency thermal insulation materials and advanced
construction technology, and has low heat dissipation loss on the
furnace wall.
Technical Parameters:
| Model No. | Thermal power(kcal/h) | Heating efficiency (%) | Max. working temp.(℃) | Medium circulation(M3/H) | Transport size (mm) | Weight (Kg) |
| YY(Q)W-120Y(Q) | 10*104 | ≥92.26 | 340 | 12.5 | Φ1060*2045 | 1215 |
| YY(Q)W-240Y(Q) | 20*104 | ≥92.26 | 340 | 18 | Φ1020*1980 | 1355 |
| YY(Q)W-350Y(Q) | 30*104 | ≥92.26 | 340 | 30 | Φ1212*2310 | 1590 |
| YY(Q)W-500Y(Q) | 40*104 | ≥92.26 | 340 | 30 | Φ1212*2730 | 1680 |
| YY(Q)W-700Y(Q) | 60*104 | ≥92.26 | 340 | 60 | Φ1400*3410 | 2715 |
| YY(Q)W-900Y(Q) | 80*104 | ≥92.26 | 340 | 80 | Φ1616*3400 | 3142 |
oil fired thermic fluid heater hot oil boilerThe Gas/Oil Fired
thermal oil boiler auxiliaries :
| Name | Quantity(unit/piece) |
| main body of thermal oil boiler | 1 |
| Oil Circulating pump | 1 |
| Gas/oil burner | 1 |
| oil filling pump | 1 |
| Filter | 1 |
| Electric control cabinet | 1 |
| high level oil storage tank | 1 |
| Low level oil storage tank | 1 |
| Valves and gauges | one batch for whole system |
YY(Q)W series gas fired thermal oil boiler designed with three
passes coiled tubes, the tail heat surface form the wet back type
smoke-transfer chamber structure, to improve heat efficiency. large
access door design of boiler's front and rear panel,hammer paint
coating, which makes the inspection more convenient.
The thermal oil boiler can be used for asphalt mixing plant,
bitumen melting machine, bitumen emulsion machine, also can be used
for bitumen modifying machine. The bitumen can be heated quickly by
thermal oil, and the boiler can be automatic control by setting the
temperature limit.
Application of thermal oil system
The series of thermal oil heater is widely used in the following
industries:
l Petrochemical Industries:polymerization, melted, condensation,
distillation, removal H2.
l Oil industry:fat and acid distillation, grease decomposition,
concentrated, esterification, vacuum deodorizer, high-temperature
cooking, advanced salad oil.
l Synthetic fiber industry: polymerization, melt spinning,
extending; drying.
l Textile printing and dyeing industry: heat setting, hot melt
dyeing, melt bake calendering drying, high temperature stenter, oar
yarn.
l Plastics and rubber industry:hot pressing, hot cast,
vulcanization molding, calendering injection machine, plastic
mixer, conveyor dryer, screw extruder.
l Paper Industry: dry, corrugated paper processing, egg tray, food
cardboard drying, calendering machine, roller.
l Timber industry: multilayer plywood, fiberboard molding, plywood,
wood drying, steaming equipment.
l Building materials industry: road bitumen heating, gypsum board
drying, heating bitumen concrete, concrete elements curing, drying
equipment.
l Air-conditioning industry:industrial plants, residential and
hotel building heating.
l Detergent Industry: cooking boiler, autoclave, spray-washing
tower, a conveyorized dryer, lipolysis device distillation column.
l The automotive industry:the tunnel-type drying room, degreasing
baths, phosphate processing equipment.
l Electrical equipment industry: calendering machine, the platen
machines, vacuum pan, dryer.
