4 Ton Per Hour Wood Coal Fired Fired Packaged Steam Boiler System
For Heating
Model: DZL Series Chain Grate Boiler
Structure: Three Pass Water and Fire Tube
Capacity: 1-10 ton/h
Pressure:0.7/1.0/1.25/1.6/2.5Mpa
Temperature:170/184/194/204/225C
Application:Rice mill,sugar mill, wood processing, textile mill,
food industry, chemical plant etc

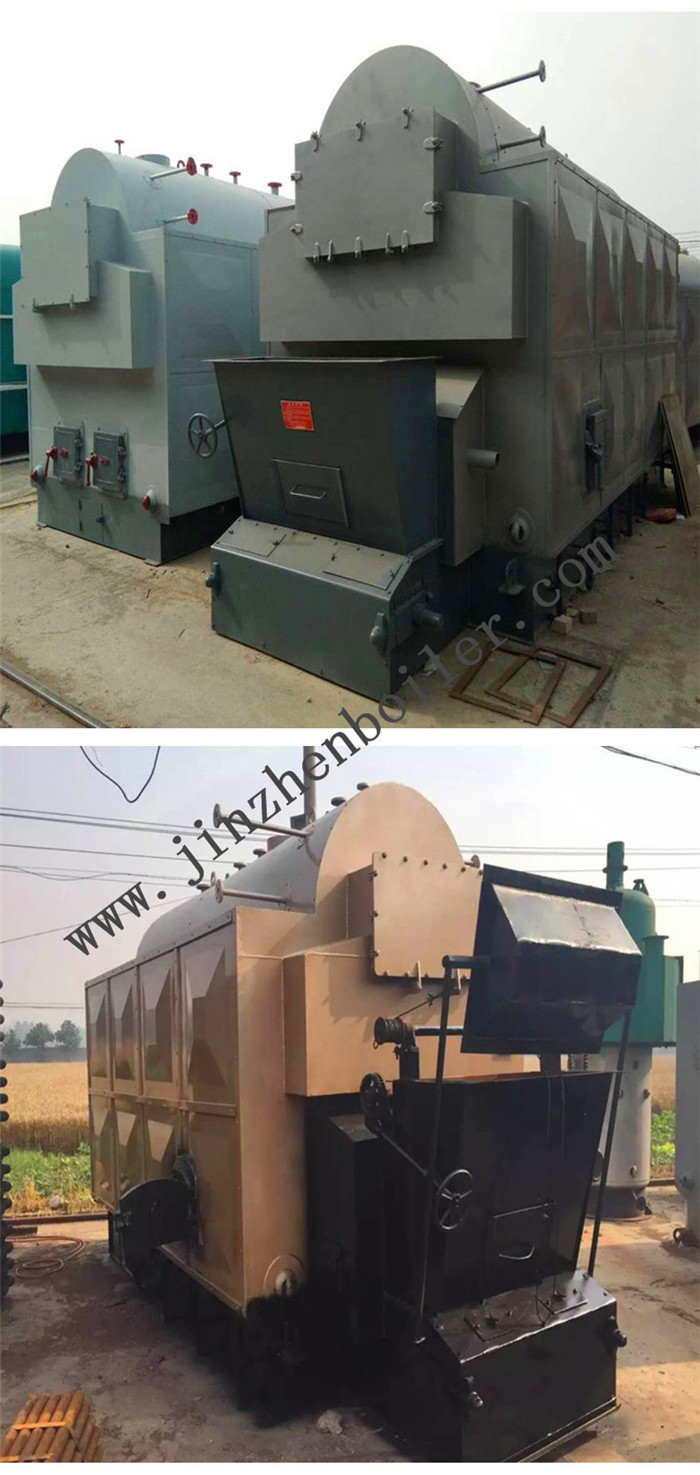

DZL series coal fired steam boilers are designed as single-drum
boilers with fire tubes and water tubes. They have fast heat
conduction, fast steam pressure rise, strong adaptability to
biomass fuel, compact structure and high thermal efficiency. This
series of steam boilers adopt the latest science and technology in
the industry such as arched tube plate and threaded flue smoke
pipes, which effectively improves the overall efficiency of the
boiler and prevents the occurrence of faults such as grate coking
and tube plate leakage.
Technical Parameters
Model
Item | DZL1-0.7-T
DZL1-1.0-T
DZL1-1.25-T | DZL2-0.7-T
DZL2-1.0-T
DZL2-1.25-T | DZL4-1.25-T
DZL4-1.6-T | DZL6-1.25-T
DZL6-1.6-T | DZL8-1.25-T
DZL8-1.6-T | DZL10-1.25
DZL10-1.6 |
Rated evaporation
capacity (t/h) | 1 | 2 | 4 | 6 | 8 | 10 |
Working
pressure(Mpa) | 0.7/1.0/1.25 | 0.7/1.0/1.25 | 1.25/1.6 | 1.25/1.6 | 1.25/1.6 | 1.25/1.6 |
Rated steam
temperature(℃) | 170/184/194 | 170/184/194 | 194/204 | 194/204 | 194/204 | 194/204 |
Feed water
temperature(℃) | 20 | 20 | 20 | 20 | 20 | 20 |
Effective area of
grate(m2) | 2.22 | 4.1 | 5.85 | 7.95 | 9.75 | 10.77 |
Fuel consumption
(Kg/h) | 200 | 400 | 800 | 1200 | 1600 | 2010 |
Exhaust flue gas
temperature(C) | 150 | 150 | 150 | 150 | 150 | 150 |
Thermal Efficiency
(%) | 82 | 82 | 82 | 82 | 82 | 82 |
| Size(m) | 5.1x 2.2x 3.0 | 5.5x 2.3x 3.3 | 6.6x 2.6x 3.6 | 8.2x 2.9x 3.8 | 8.1x 3.1x 3.8 | 7.7x 3.2x 3.6
8.6x 3.0x 2.6 |
| Weight (t) | 17 | 23 | 25 | 35 | 45 | 33
28 |
Performance advantage
DZL series coal fired steam boiler is the single drum longitudinal
type water and fire tube shell water boiler, the burning equipment
is the chain grate.
1. The fire grate is compact and dense. It is especially suitable
for the combustion of biomass particles.
2. Boiler internal heating area is larger than the same
specifications of coal-fired boilers, to make up for the
disadvantage of biomass fuel combustion value.
3. The condition is stable, continuous fuel combustion. By
adjusting the secondary speed air volume, control the speed of
combustion ignition.
4. The biomass steam boiler is easy to operate, user-friendly
design, without complicated procedures.
5.It takes the thread smoke tube to enhance heat transfer, improve
the heat transfer coefficient and thermal efficiency.
Due to disturbance of smoke in the tube, the smoke pipe is not easy
to accumulate dust ,it can clean by itself .
6.Fuel easily obtained, the ash can be recycled.
-automatic fuel feeding duel to chain grate design;
-high efficiency due to big heating surface and grate area;
-low emission,friendly to environment;
-wide fuel adaptability, applicable for wood pellet, coal, palm
nuts, etc;
-intelligent boiler controller with PLC and touch screen, easy for
operation and parameters setting;
-good looking & long life span;
This coal steam boiler is widely used in schools, textile mills,
clothing factories, printing and dyeing factories, restaurants,
food factories, beverage factories, bean products factory, meat
products factory, cannery, winery, pharmaceutical factory,
packaging factory, building materials factory, coating factory,
swimming pool and other enterprises and institutions.
FAQ of coal fired boiler
1.What is the size of furnace door and blower hopper?
Size of furnace door:
Standard elliptical furnace door:300*800*1500
Blower hopper size:
2 tons conical hopper: 1400*800*1500
4 tons conical hopper: 2200*1400*1500
2.What is the combustion mode of coal/biomass fired boiler?
The combustion mode of coal/biomass fired boiler is layer
combustion. Place the flue on the fixed or moved grate, to form an
evenly fuel bed with a certain thickness, air comes from the bottom
of grate, and combustion occurred on the fuel bed.
3.Material of boiler drum / steel plate / tube.
Boiler drum material: Q245R,carbon steel, executive standard:
GB713-2008
Tube material: 20# seamless steel pipe, carbon steel, executive
standard: GB3087-2008
Still kettle material: Q345R, alloy steel, executive standard:
GB713-2008
4.What is the height of chimney?
The chimney is usually 30m, irrespective of the special
circumstances.
5.What are the heat-resistance temperature of grate and furnace?
The heat resistance temperature of grate is related to the grate
material, the highest temperature could be as high as 1100℃, and
the lower temperature could be 700℃.
6.What is the temperature of smoke gas?
The highest temperature of smoke gas is 165℃.
7.How long can the coal/biomass fired boiler works?
Coal/biomass boilers could work for 10~15 years, under correct
operation, high water and coal quality, etc.
8.How to avoid collapse of bricks, and what should be done if it
happened?
When boiler installation finished, drying the boiler according to
the manual, it’s very important to avoid collapse of bricks.
9.How many stokers do I need for one boiler?
Usually 3 person, every 8 hours a shift.
