1 Ton/H, 1000kg/H, 70hp High Energy Efficient Electric Steam Boiler
For Food Sterilization
WDR electricity heating boiler is one of the most cleaning products
in the boiler market. Adopting the seperate boiler body and control
system, to avoid the heat-aging of electrical components. Equipped
with high-quality electric heating tubes, working life more than
20000hours, thermal efficiency more than 99%, no NOx pollution,
extra low noise operation. Additional, equipped with PLC Smart
Stepwise Control can ensure the user can operate the boiler safely
and conveniently.
Features of electric steam boiler
1. All the electrical components have the CE and CCC certification
2. Cartridge Heaters can work for about 20000 hours
3. PLC full automatic intelligent control cabinet, operate
conveniently.
4. Full automatic interlock protection program, operate safely.
5. Reliable boiler auxiliaries, i.e. pressure controller.
6. Large steam space, high steam quality.
7. Environmental protection.
8. Small occupation, save construction investment.
9.The boiler heater adopts the direct heating tube.
10.The thermal efficiency can reach up to 99%, completely zero
pollution.
11.The heating is uniform and stable, and the evaporation area is
large.
12.The heating production is rapid.
13.Safe and reliable, easy to operate.
14.Compared other boiler,it is noiseless.
15.Environmental protection, no pollution to the environment.
16.Very easy to operate, which can save the labour cost.
Technical data
| Model | Rated Capacity (t/h) | Rated Pressure (Mpa) | Rated Steam Temperature (℃) | Thermal Efficiency (%) | Overall dimension (m) | Weight (kg) |
| LDR0.2-0.4 | 0.2 | 0.4 | 151 | 99 | 1.0×2.5 | 750 |
| LDR0.3-0.4 | 0.3 | 0.4 | 151 | 99 | 1.1×2.6 | 920 |
| LDR0.4-0.4 | 0.4 | 0.4 | 151 | 99 | 1.2×3.0 | 1100 |
| LDR0.5-0.4/0.7 | 0.5 | 0.4/0.7 | 151/170 | 99 | 1.2×3.2 | 1350 |
| LDR0.7-0.4/0.7 | 0.7 | 0.4/0.7 | 151/170 | 99 | 1.3×3.5 | 1800 |
| WDR1-0.7 | 1 | 0.7 | 170 | 99 | 3.0×1.4×1.65 | 2100 |
| WDR1.5-0.7 | 1.5 | 0.7 | 170 | 99 | 3.5×1.6×1.75 | 2600 |
| WDR2-0.7 | 2 | 0.7 | 170 | 99 | 4.0×1.7×1.95 | 3100 |
Note: 1.Parameter is for reference only, if any changes should
follow actual drawings. 2. Here are parts of boiler products, please inquire for the
specific details. |

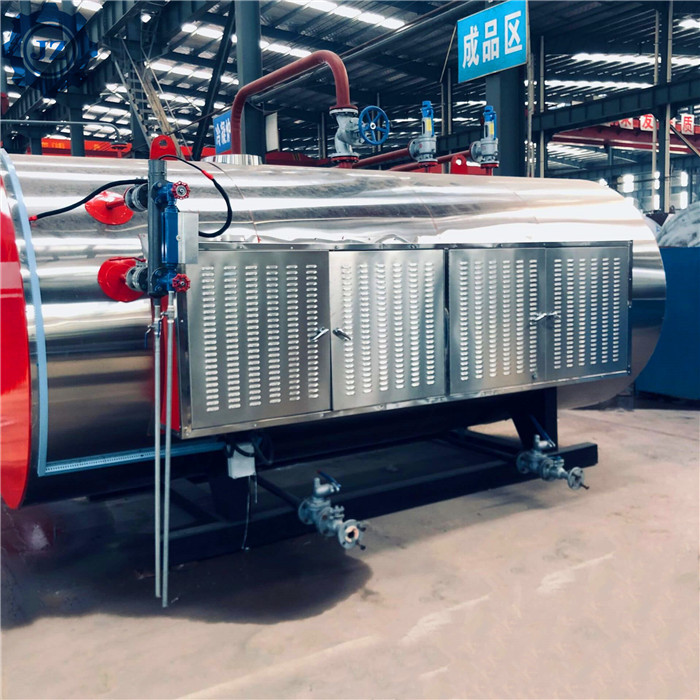

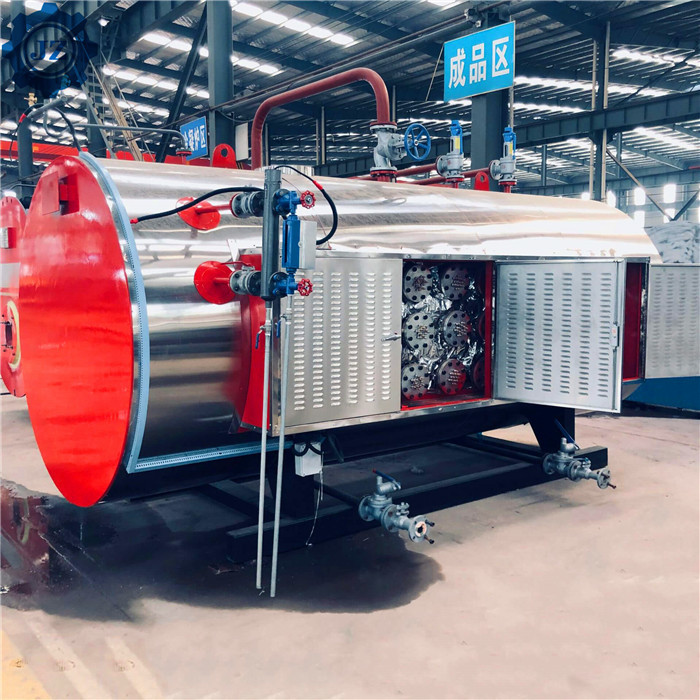

This electric steam boiler is a horizontal electric heating steam
boiler, mainly consists of front, back tube plate, tube and
electric heating tube.
Application
Food sterilization
Cooking Food sterilization
Offer hot water to hotel, hospital, school, etc.
Other industrial production: textile, AAC plant, food & beverage,
and pharmaceutic industry, etc.
Used with Biological equipment: reaction still, fermentation
cylinder, the sterilization pot, etc.
Used with washing equipment: dry cleaning machine, rising machine,
and ironing machine, etc.
FAQ of Horizontal Industrial Electric Steam Boilers

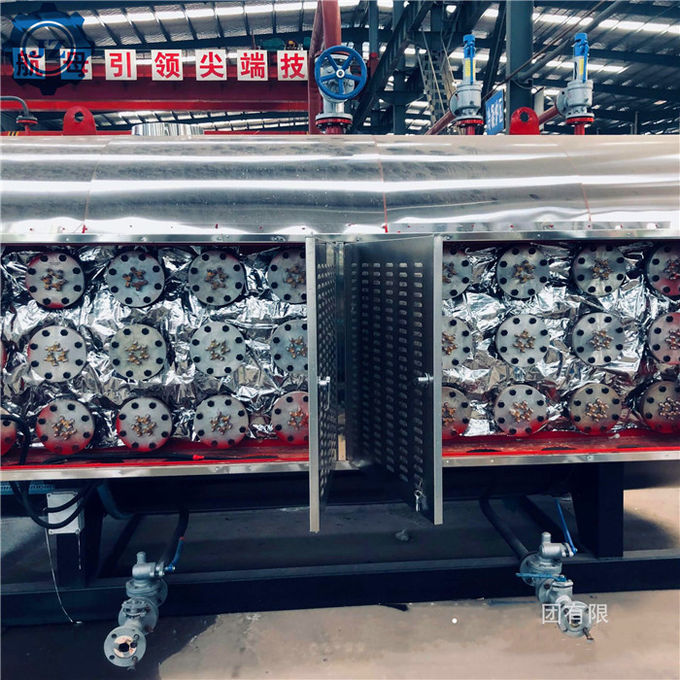

1.The lifetime of cartridge heaters / electrical heated tube.
The electrical heated tube have the CE and CCC certification to
guarantee the long working time, it can be used for about 20000
hours.
2.Automatic operation device
electric heating boiler employs full automatic intelligent control
technology, and adopts PLC control system to make the operation
more simple and safe.
The boiler controller uses SIEMENS/ DELIXI electrical components.
Operator can control water level, water temperature, fire situation
and working pressure, etc. Moreover, the operation parameters could
be set, and they are shown on the screen.
3.Thickness of insulation heat preservation materials
The thickness of insulation heat preservation materials is
different based on the requirement of internal temperature,
external temperature, or heat loss requirement. Generally, the
thickness of the insulation heat preservation materials are between
100~200mm.
4.What about the maintenance?
I will offer you the timely maintenance way sheet after
installation of the boiler mainly parts.
