1.5ton 1500kg 100hp Industrial Horizontal Electric Heating Steam
Boilers For Laundry Hotel
WDR series full automatic electric heating boiler is a kind of new
high technology product which takes electricity as energy. It has
the advantages of environmental protection, no pollution, no noise,
convenient installation, small occupation, full automatic control
and high thermal efficiency.
Features of electric steam boiler
1. High thermal efficiency, long working life
1) All the electrical components have the CE and CCC certification,
to guarantee the safety operation and long working time.
2) Uses high quality seamless and stainless steel cartridge
heaters, high compression strength, the thermal efficiency could
reach 99%, and the working life is 5~10 times working life longer
than others.

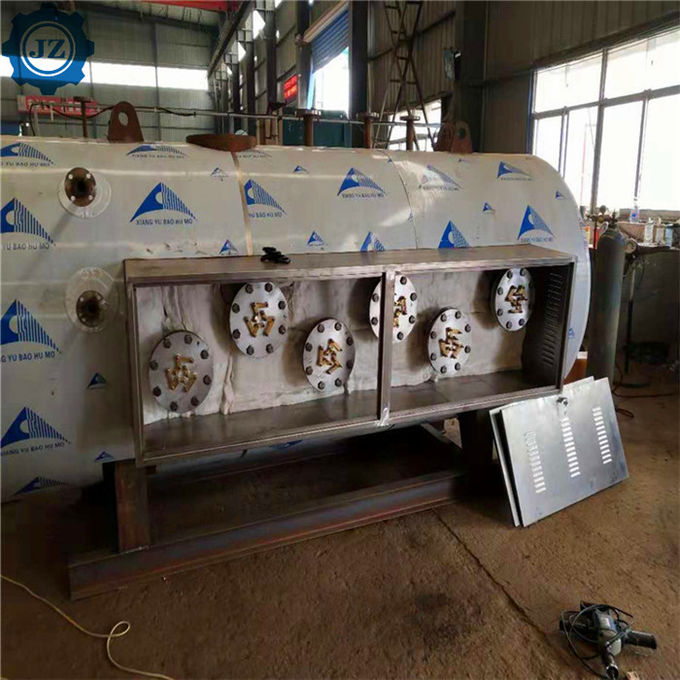

3) Each group electrical heating elements are connected by
clustered flanges, simple structure, high mechanical strength, safe
and reliable.
2. Perfect automatic control
1) The boiler adopts PLC full automatic intelligent control
cabinet, could set and control the water temperature.
2) Adopts interlock protect system, has the protect function on
water shortage, over pressure, over temperature, flame out,
electric leakage, and phrase-lacking or overloading of motor, etc.,
it could be adjusted conveniently.
3. Advanced circuit design
The boiler has advanced circuit design, the routing is net and
reasonable, operate conveniently.
4. Sufficient output
The horizontal type boiler has relatively large steam space, to
provide high quality steam output.
5. High quality welding
The boiler body use special steel plates, all the welding line is
automatic welding, and detected by X-rays to ensure the quality.
6. High thermal shielding efficiency
The boiler shell use aluminium silicate board for heat
preservation, high thermal shielding efficiency, low heat loss,
save energy, and increase the boiler thermal efficiency.
7. Environmental protection
The boiler operates quietly and no harmful gas emission, meet the
requirement of environmental protection.
Technical Specification
Model | | | | | | | |
Steam Capacity | | | | | | | |
Working Pressure | | | | | | | |
Steam Temperature | | | | | | | |
Electricity Consumption | | | | | | | |
Operation Method | PLC Smart Stepwise Control Adjustable Working Pressure, Adjustable Steam Capacity |

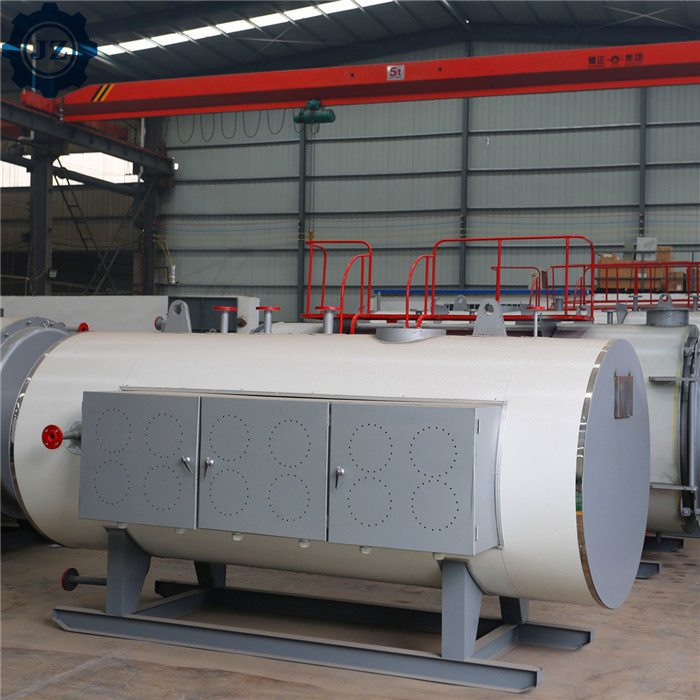

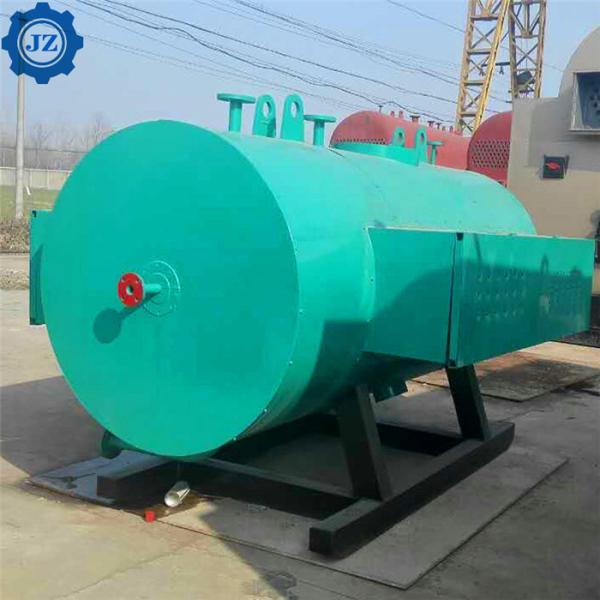

This electric steam boiler is a horizontal electric heating steam
boiler, mainly consists of front, back tube plate, tube and
electric heating tube.
Adopting high quality ceramic heating tube can efficiently avoid
the scale attaching. Have higher thermal efficiency, quicker
temperature raising, steady performance, also its average life span
is more than 20000hours.
1. Over pressure, over temperature, low water level, air ignition
alarm interlock;
2. Power off, under voltage, over current, short circuit, phase
loss shutdown;
3. Automatic control;
4. Stainless steel tube type nichrome electric heating tube;
5. Outer packing of stainless steel plate.
Smart Stepwise Control
Color touch screen, Liquid crystal display (LCD), ON-OFF stepwise
control system (English language), High quality PLC controller
(SIEMENS). Also, on the control cabinet, the user can choose the
numbers of working heating tubes, this way can make sure the boiler
works for different steam capacity.
The electric steam boiler can be used for the steam required for
the processing of industrial products such as textile, printing and
dyeing, paper, food, rubber, plastics, chemicals, medicine, steel,
metallurgy, etc., and can be used for enterprises, institutions,
hotels, schools, restaurants, services, etc. Industry heating,
bathing, air conditioning and domestic hot water.
How to ensure the boiler quality?
(1)Strength calculation report for applied materials information;
(2)100%NDT(non-destructive inspection) report of steel plate, tube
and welding rod;
(3)100% X-ray inspection(welding seam): ensure the quality of
entire boiler;
(4)Hydrostatic test: ensure the standard working pressure and
safety;
(5)Third-party inspection report: Henan Boiler Inspection
Institute;
(6)Passed ISO:9001,CE, SGS and Intertek certificate.
