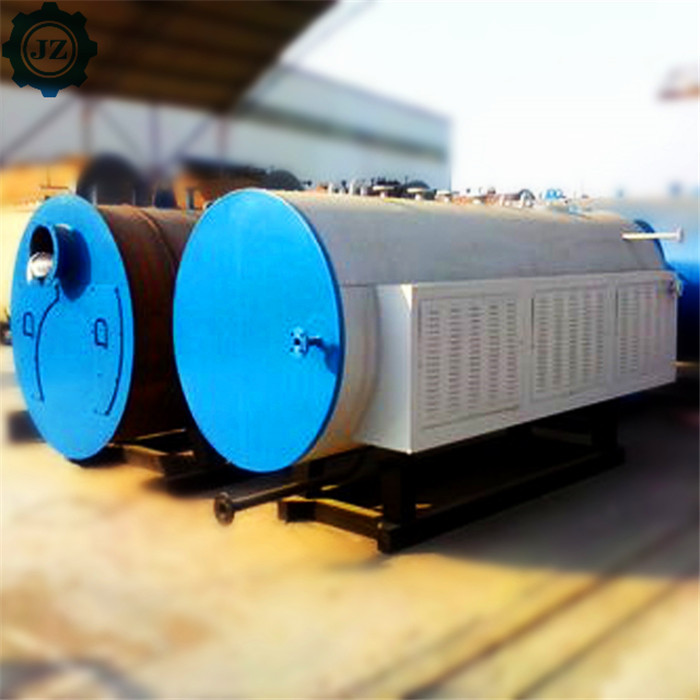

99% Thermal Efficiency Long Working Life Horizontal Electric Industrial Steam Generator Boiler

WDR electricity heating boiler is one of the most cleaning products in the boiler market. Adopting the seperate boiler body and control system, to avoid the heat-aging of electrical components. Equipped with high-quality electric heating tubes, working life more than 20000hours, thermal efficiency more than 99%, no NOx pollution, extra low noise operation. Additional, equipped with PLC Smart Stepwise Control can ensure the user can operate the boiler safely and conveniently.

Boiler Advantage

Technical Specification

Features of Horizontal Industrial Electric Steam Boilers

1.All the electrical elements have the CE and CCC certification to make sure the boiler safety and long live.

2.Special design of internal structure, large heating area, high thermal efficiency (99%).

3.Seamless steel tube is used as the linner of the ceramic heating tube, high compression strength, 5~10 times using life longer than others.

4.The boiler uses SIMENS PLC electric control cabinet, displays in English. It shows boiler operation condition dynamically, and operator can set up parameters about temperature, pressure, time, etc.

5.Stainless steel shell is available, and we can design the specific boiler based on customers’ requirement.

7.The 100% NDT make sure the boiler life span more than 20 years.

8.Each group electrical heating elements focus on type of flange connection to make the structure simple, safe and easy to repair.

Boiler Application

The electric steam boiler can be used for the steam required for the processing of industrial products such as textile, printing and dyeing, paper, food, rubber, plastics, chemicals, medicine, steel, metallurgy, etc., and can be used for enterprises, institutions, hotels, schools, restaurants, services, etc. Industry heating, bathing, air conditioning and domestic hot water.

FAQ of Horizontal Industrial Electric Steam Boilers

1.The lifetime of cartridge heaters/ electrical heated tube.

The electrical heated tube have the CE and CCC certification to guarantee the long working time, it can be used for about 20000 hours.

2.Automatic operation device

electric heating boiler employs full automatic intelligent control technology, and adopts PLC control system to make the operation more simple and safe.

The boiler controller uses SIEMENS/ DELIXI electrical components. Operator can control water level, water temperature, fire situation and working pressure, etc. Moreover, the operation parameters could be set, and they are shown on the screen.

3.Thickness of insulation heat preservation materials

The thickness of insulation heat preservation materials is different based on the requirement of internal temperature, external temperature, or heat loss requirement. Generally, the thickness of the insulation heat preservation materials are between 100~200mm.

4.What about the maintenance?

I will offer you the timely maintenance way sheet after installation of the boiler mainly parts.

Henan Jinzhen Boiler Co., Ltd is a professional industrial boiler manufacturer that specialized in the environment-friendly steam boiler, hot water boiler, thermal oil boiler and pressure vessels’ design, manufacture, installation, maintenance. Jinzhen Boiler factory is located in beautiful Zhoukou City which nearby Zhengzhou Airport, Shangqiu Railway Station, gets convenient traffic.We have over 6,000sq.m. building area, 105 employees, annual sales amount exceeds 25,000,000USD which includes 25% export amount in worldwide.

Jinzhen boilers include more than 150 kinds. There are:
(1) DZL coal/biomass fired steam boiler(1-20ton/h;)
(2) DZH wood fired steam boiler(0.5-6ton/h;)
(3) SZL biomass/coal fired steam boiler(4-25ton/h;)
(4) WNS series gas/oil fired steam boiler(0.5-20ton/h;)
(5) YLL(W) series coal/biomass fired thermal oil boiler(150,000-16,000,000Kcal)
(6) YY(Q)W gas /oil fired thermic fluid heater(150,000kcal-12,000,000Kcal)

All industrial boilers comply with GB/T quality standards and are greatly appreciated in a variety of markets throughout the world.Well-equipped facilities and excellent quality control throughout all production stages to totally guarantee customers' satisfaction.

As a result of high quality boiler and outstanding customer service, we have gained a global sales network reaching America, Australia, Mexico, Vietnam, Russia, Kazakhstan, South Africa, Syria,South Africa, Ethiopia, etc.
