    Gas Oil Fired Thermic Fluid Heater , Packaged Thermal Oil Heater For Building Materials Industry

    Ask Lasest Price
    Brand Name : Jinzhen Boiler
    Model Number : YY(Q)W-1000kw
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100 set per month
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    Gas Oil Fired Thermic Fluid Heater , Packaged Thermal Oil Heater For Building Materials Industry

    Gas Oil Fired Thermic Fluid Heater , Packaged Thermal Oil Heater For Building Materials Industry​


    YYW series oil fired thermal oil boiler designed with three passes coiled tubes, the tail heat surface form the wet back type smoke-transfer chamber structure, to improve heat efficiency. large access door design of boiler's front and rear panel,hammer paint coating, which makes the inspection convenient,elegant outside.


    Specification

    ModelYYW/YQW
    Rated Thermal Power120-10000 KW
    Design Pressure1.1 Mpa
    Working Pressure0.8 Mpa
    Medium Outlet Temperature≤350 C
    FuelLight Oil,Heavy Oil,Natural Gas,Lpg,Lng,Cng,Diesel etc
    ApplicationChemical,Oil,Petrochemical,Textile,Printing,Rubber,Carton,Plywood,Asphalt,Cement, etc

    Boiler Advantages
    1. High thermal efficiency
    The thermal oil boiler is circulation heating in liquid phase, there is no heat loss leaded by condensing, thermal efficiency is high, and the boiler is very safe when operating.
    2) The boiler shell use aluminum silicate board for heat preservation, low heat loss.
    3) By equipped with economizer, make full use of flue gas heat, decrease the exhaust smoke temperature.

    2. Large combustion chamber
    The boiler combustion chamber is composed with large diameter coil, enough fuel combustion space, sufficient combustion, high thermal efficiency. Moreover, the boiler adopts positive pressure combustion, improve the combustion efficiency.

    3. Excellent coil design
    The spiral pipes are made of small diameter multi-head steel tubes, good thermal expansibility, low stress, safe and reliable.

    4. Sufficient output
    The thermal oil heater adopts horizontal type three pass structure, improve the heat utilization efficiency. Large heating area, good heat transfer, achieve high thermal efficiency and sufficient output.

    5. Multi-function safety explosion-proof equipment
    Equipped with explosion proof equipment at the back of boiler, prevent deflagration in furnace, discharge high energy, to ensure the boiler operate safely and efficiently.

    6. Perfect automatic control
    The hot oil boiler adopts PLC full automatic intelligent control cabinet and interlock protect system, has the protect function on oil temperature, medium temperature, pressure, etc, adjust conveniently.

    7. Convenient installation
    The organic heat carrier furnace is package boiler, compact structure, covers small area, convenient for installation and maintenance.

    Technical parameters

    Item
    Model

    Rated

    Power
    (KW)

    Design

    Pressure
    (Mpa)

    Medium

    Outlet
    Tem.(C)

    Heating
    Area
    (M2)
    Fuel ConsumptionFurnace Oil
    Content
    (M3)
    Boiler
    Dimensions
    (m)

    Transport

    Weight
    (T)

    Light Oil
    (kg/h)

    Natural Gas

    (Nm3/h)

    YY(Q)W-1201201.1≤3509.812150.11.6x1.0x1.51.5
    YY(Q)W-24024014.525300.151.9x1.2x1.82
    YY(Q)W-35035021.337440.252.1x1.3x2.02.58
    YY(Q)W-5005002452630.32.2x1.3x2.03
    YY(Q)W-7007004069830.53.2x1.4x2.23.7
    YY(Q)W-10001000501001200.83.3x1.6x2.45
    YY(Q)W-1200120064.61201450.853.8x1.7x2.55.8
    YY(Q)W-1400140078.51401701.14.1x1.9x2.76.7
    YY(Q)W-18001800871802201.24.6x2.0x3.07.8
    YY(Q)W-2100210094.52102601.75.0x2.0x3.08.8
    YY(Q)W-24002400106.22442961.95.0x2.2x3.19.8
    YY(Q)W-300030001633003653.55.9x2.4x3.415.5
    YY(Q)W-35003500205.23504253.86.5x2.4x3.617.8
    YY(Q)W-47004700254.34705704.27.2x2.5x3.721.5
    YY(Q)W-600060003255807006.27.8x3.0x3.825
    YY(Q)W-7000700041068081078.2x3.0x3.827.5
    YY(Q)W-1000010000520970116010.510x3.5x4.032
    Notes: Parameter is for reference only, If any changes should follow actual drawings.

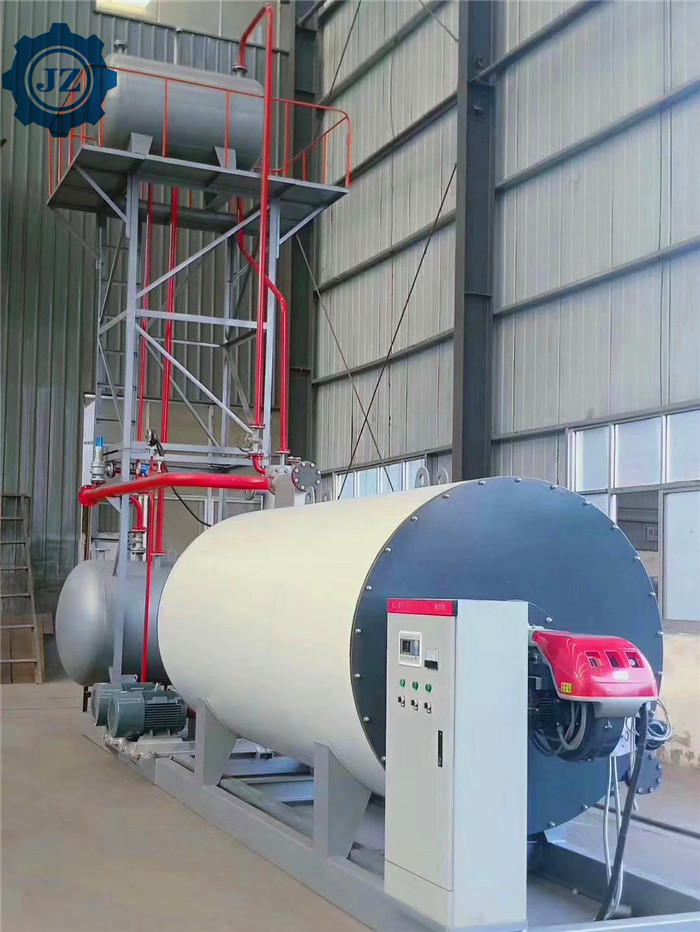

    Boiler Picture

    Gas Oil Fired Thermic Fluid Heater , Packaged Thermal Oil Heater For Building Materials IndustryGas Oil Fired Thermic Fluid Heater , Packaged Thermal Oil Heater For Building Materials IndustryGas Oil Fired Thermic Fluid Heater , Packaged Thermal Oil Heater For Building Materials Industry

    Boiler Application
    Owing to its characteristics of high heating temperature, low working pressure, and energy saving, the thermal fluid heater could be widely used in a variety of industrial heating process.
    1) Textile industry - dyeing machine, drying rooms, high temperature machine, resin setting machine.
    2) Food industry - cooking, drying, vegetable oil refining.
    3) Chemical industry - oil chemistry, polymer industry, reaction tanks, distillation, concentration.
    4) Plastics industry - plastics fired, extruded shape.
    5) Rubber industry - hot press, hot extent, extrusion, vulcanization molding, injection, etc.
    6) Paper industry - drying, corrugated paper processing, calender, glue roller.
    7) Wood industry - hot processing, heat setting.
    8) Machinery industry - drying, assembly processing
    9)Building materials industry - plasterboard drying, asphalt heating, emulsified asphalt, asphalt concrete, concrete component maintenance, etc.
    10) Synthetic fiber industry: polymerization, melting, spinning, extension, dry
