100KG 200KG 300KG 500KG Natural Gas LPG Oil Diesel Fired Vertical
Steam Generator Boiler
Vertical Steam Boiler
Capacity :0.1-1t/h
Pressure :0.4/0.7Mpa
Fuel :Heavy oil,Furnace Oil, diesel, natural gas, LPG, etc.
Application : Pharmacy, dying& textile, paper making,farming,
rubber processing, food and beverage, plastics and foam,building
materials,chemical hotels, Light industry

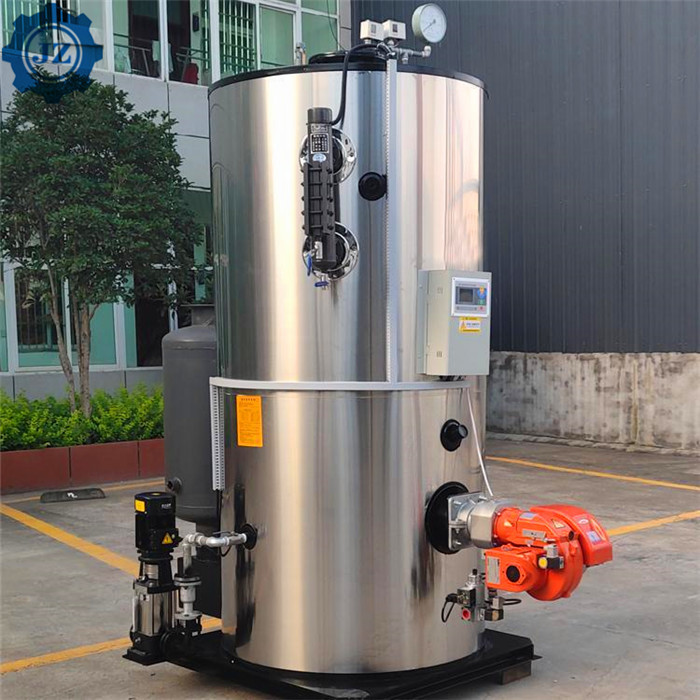

LSS type vertical automatic steam generator without inspection has
simple and accurate control technology, high thermal efficiency,
short preheating time, and adopts arc-shaped tube structure to make
the heat and cold exchange uniform and reach the set pressure at a
higher speed. The steam pressure can reach 0.4mpa within 5-8
minutes after starting up. It is controlled by a one-key start
button, and up to 4 time periods can be set to automatically start
up and run. The equipment is equipped with multiple protection
measures such as automatic water filling, pressure control, water
shortage protection and alarm, automatic shutdown of extremely low
water level, overpressure protection, and overpressure safety
valve.
Technical Parameters
| Model | LSS0.1-0.4-Y | LSS0.2-0.4-Y | LSS0.3-0.4-Y(Q) | LSS0.5-0.4-Y(Q) | LSS0.7-0.4-Y(Q) | LSS1-0.7-Y(Q) |
| (Q) | (Q) | LSS0.3-0.7-Y(Q) | LSS0.5-0.7-Y(Q) | LSS0.7-0.7-Y(Q) | LSS1-1.0-Y(Q) |
| Rated steam capacity(t/h) | 0.1 | 0.2 | 0.3 | 0.5 | 0.7 | 1 |
| Rated steam pressure(Mpa) | 0.4 | 0.4 | 0.4/0.7 | 0.4/0.7 | 0.4/0.7 | 0.7/1.0 |
| Steam temperature(C) | 151 | 151 | 151/170 | 151/170 | 151/170 | 170/184 |
| Supply water temperature(C) | 20 | 20 | 20 | 20 | 20 | 20 |
| Thermal efficiency(%) | 89 | 89.2 | 90.6 | 90.6 | 93.9 | 92 |
| Fuel available | Light diesel oil, heavy oil, natural gas |
| Motor General power(kw) | 1.1 | 2.6 | 2.66 | 2.96 | 3.2 | 4 |
| Fuel consumption | Light oil (Kg/h) | 6.6 | 14 | 20.62 | 34.37 | 46.53 | 67.88 |
| Natural gas (Nm³/h) | 9 | 19 | 24.98 | 41.69 | 56.22 | 82.61 |
| Boiler weight(t) | 0.83 | 1 | 2.113 | 2.657 | 3.64 | 3.75/3.9 |
| Boiler size(m)(L×W×H) | 0.8×1.94 | 0.9×2.7 | 1340×1300×2510 | 1540×1500×2860 | 1900×1800×3040 | 1900×1800×3310 |
| Note: 1. The hot value of light oil: 10300kal/Nm3, hot value of
natural gas :8500kcal/Nm3. |
| 2. Parameter is for reference only, if any changes should follow
actual drawings. |
Performance Advantages
1.The small water volume, fast steam generating. LHS Series steam
boiler has vertical design and compact structure, just requires
small floor space;
2.Adopting large-volume steam chamber, and lay-in steam/water
separator can produce high-quality steam stably;
3.The lay-in low water level protection device to detect the change
of water level at any time, totally avoid dry-burning and operation
accidents;
4.LSS Series vertical type steam boiler is equipped with
high-quality pressure relief valve, water level electrode, water
level gauge, pressure gauge, pressure controller, and other
accessories to ensure boiler’s reliable operation.
Boiler Application
LSS series vertical steam generator can be wildly used in
pharmaceutical industry, chemical industry, light industry,
textile, building materials, farming, food and beverage, plastics
and foam, printing & dyeing and washing, rubber processing, paper
making, wood processing, hotel, garment leather, etc. This series
boiler can also be applied to generate electricity at some
districts where electricity power is in short. Even they can be
used as a power plant boiler start-up.
