0.7MW To 10MW Normal Pressure Industrial Gas Oil Fired Hot Water
Heating Boiler Price
Rated power: 0.7-7MW
Calorific value: 60-6 million kcal/h
Rated outlet pressure: normal pressure
Rated outlet temperature: 85℃/60℃
Thermal efficiency ≥98% (with condenser)
Application range: It is widely used in greenhouse agriculture,
animal husbandry, residential areas, schools, hotels, swimming
pools, bathing centers and other industries. It can automatically
heat users or provide bathing water and domestic hot water.
CWNS series fully automatic gas (oil) hot water boiler adopts a
three-pass, wet-back structure. The combustion chamber adopts a
corrugated furnace and is arranged in a low position to maximize
the radiant heating surface and improve the thermal efficiency of
the boiler. The furnace is equipped with a burner with good
technical performance, adopts advanced technologies such as
automatic combustion ratio adjustment, automatic water supply
adjustment, program start and stop, and automatic operation, and
has high and low water level alarms and automatic protection
functions such as extremely low water level, ultra-high vapor
pressure, flameout, etc. .
Boiler Specification
Boiler Advantage
The main body of the boiler is produced and inspected in strict
accordance with the "General Technical Requirements for Atmospheric
Boilers" and related standards to ensure excellent quality, with
multiple safety protections (combustion, over temperature, ultra
low water level, flameout, shutdown, program start protection,
etc.) , The gas is equipped with low pressure and leak alarms.
Advanced microcomputer intelligent control technology can remotely
monitor and diagnose faults. Centralized control of multiple
boilers can also be designed.
1. The boiler smoke tube has a built-in spoiler to enhance heat
transfer, thereby reducing the convective heating area and reducing
the cost of the boiler.
2. The boiler adopts new thermal insulation material, which has
good thermal insulation performance, light weight and low cost.
3. The hot water boiler is equipped with safety valve and other
overpressure safety protection devices, which can make the boiler
run more.
4. The structure of this series of hot water boilers is reasonable
after various furnace types are designed, demonstrated and compared
with technical indicators.
Assembly-Free
Three Fire-Passes
New Wet-Back Design
Corrugated Furnace, Fire-tube
Automatic Ignition
Automatic Fire Regulation
Automatic Water-replenishing
Automatic Temperature Control
Smart ON/OFF Operation
Visible Water Temperature
Adjustable Working Temperature
Visible Exhaust-gas Temperature

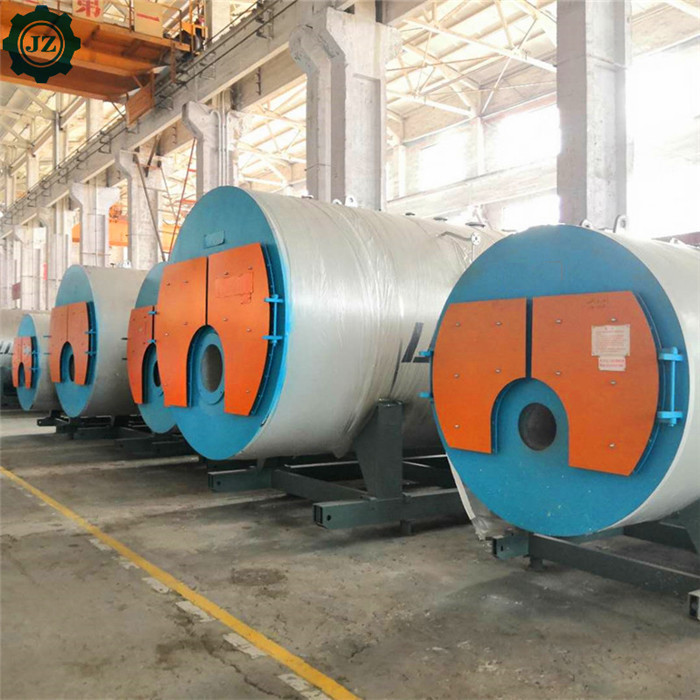

Boiler Picture
FAQ
What are the available fuel for the oil gas fired boiler?
Oil gas fired boiler could burn both liquid fuel and gaseous fuel.
The liquid fuel could be heavy oil, light oil, diesel, furnace oil,
bunker oil, LPG (liquefied petroleum gas), etc. The gaseous fuel
could be natural gas, city gas, bio-gas, etc.
Whether the boiler can burn dual fuel or multi-fuel?
Jinzhen boiler have oil burner, gas burner, and oil&gas dual
fuel burner, we can offer the specific burner based on customers’
requirement.
The brand of burner?
The brands of burner are Italy Baltur, Rellio, Elco, etc
What is the advantages of fire tube boiler?
This fire tube boiler has compact structure and convenient
operation, strong load adaptability, lower water quality
requirement, and the failure rate of it is lower than 0.1!
What is the inlet pressure of gas burner?
The inlet gas pressure is different for different capacity boiler,
for example, the pressure for 2 ton steam capacity boiler is about
8~10KPa, while for 4 ton steam capacity boiler is about 18~20KPa.
