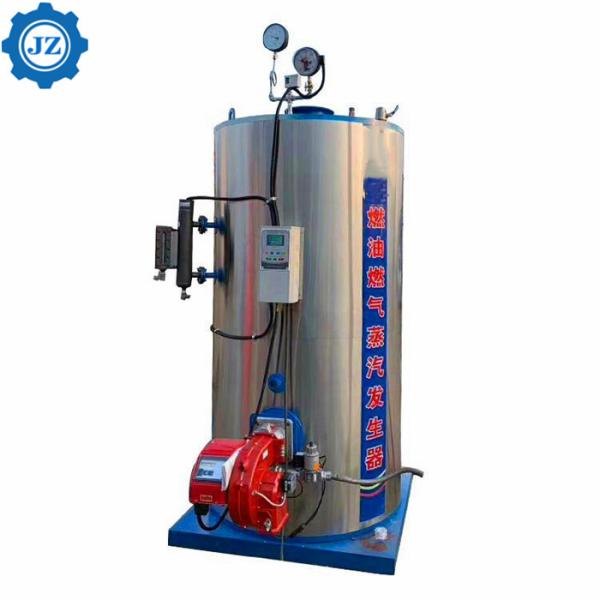

100kg 200kg 300kg 500kg 700kg Natural Gas Diesel Vertical Steam Generator Boiler Price For Food Processing Machinery

Ask Lasest Price
Brand Name :	Jinzhen Boiler
Model Number :	LSS0.5-0.8-Y/Q
Certification :	CE
Price :	USD 5000-9000 per set
Supply Ability :	5000 Set/Sets per Year
Delivery Time :	10 to 12 days

Add to Cart

Product Details
Company Profile

100kg 200kg 300kg 500kg 700kg Natural Gas Diesel Vertical Steam Generator Boiler Price For Food Processing Machinery

100kg 200kg 300kg 500kg 700kg Natural Gas Diesel Vertical Steam Generator Boiler Price For Food Processing Machinery

What is oil&gal steam generator?
Oil gas steam generator is a kind of inspection free steam boiler with water capacity less than 50L.
Steam generator has lower consumption cost, higher thermal efficiency and more flexible use than ordinary boilers.

Technical Parameters

Model		LSS0.1-0.4-Y	LSS0.2-0.4-Y		LSS0.3-0.4-Y(Q)	LSS0.5-0.4-Y(Q)		LSS0.7-0.4-Y(Q)	LSS1-0.7-Y(Q)
		(Q)	(Q)		LSS0.3-0.7-Y(Q)	LSS0.5-0.7-Y(Q)		LSS0.7-0.7-Y(Q)	LSS1-1.0-Y(Q)
Rated steam capacity(t/h)		0.1	0.2		0.3	0.5		0.7	1
Rated steam pressure(Mpa)		0.4	0.4		0.4/0.7	0.4/0.7		0.4/0.7	0.7/1.0
Steam temperature(C)		151	151		151/170	151/170		151/170	170/184
Supply water temperature(C)		20	20		20	20		20	20
Thermal efficiency(%)		89	89.2		90.6	90.6		93.9	92
Fuel available		Light diesel oil, heavy oil, natural gas
Motor General power(kw)		1.1		2.6	2.66		2.96	3.2	4
Fuel consumption	Light oil (Kg/h)	6.6		14	20.62		34.37	46.53	67.88
	Natural gas (Nm³/h)	9		19	24.98		41.69	56.22	82.61
Boiler weight(t)		0.83		1	2.113		2.657	3.64	3.75/3.9
Boiler size(m)(L×W×H)		0.8×1.94		0.9×2.7	1340×1300×2510		1540×1500×2860	1900×1800×3040	1900×1800×3310
Note: 1. The hot value of light oil: 10300kal/Nm3, hot value of natural gas :8500kcal/Nm3.
2. Parameter is for reference only, if any changes should follow actual drawings.

Boiler Features

Excellent Structure	Two Fire-Passes	Automatic Control	Automatic Water Feeding
	New Wet-Back Design		Automatic Water-Level Control
	Corrugated Furnace		Automatic Pressure Regulation
	Corrugated Fire-tube		Automatic Over-Pressure Relief
Quality Burner	European Brand (BALTUR)	Visible Operation	Visible Working Pressure
	Complete Combustion System		Visible Fuel Consumption
	Automatic Ignition		Visible Working Pressure
	Two-Stages Fire		Visible Steam Temperature

Boiler Application

LSS series vertical steam generator can be wildly used in pharmaceutical industry, chemical industry, light industry, textile, building materials, farming, food and beverage, plastics and foam, printing & dyeing and washing, rubber processing, paper making, wood processing, hotel, garment leather, etc. This series boiler can also be applied to generate electricity at some districts where electricity power is in short. Even they can be used as a power plant boiler start-up.
