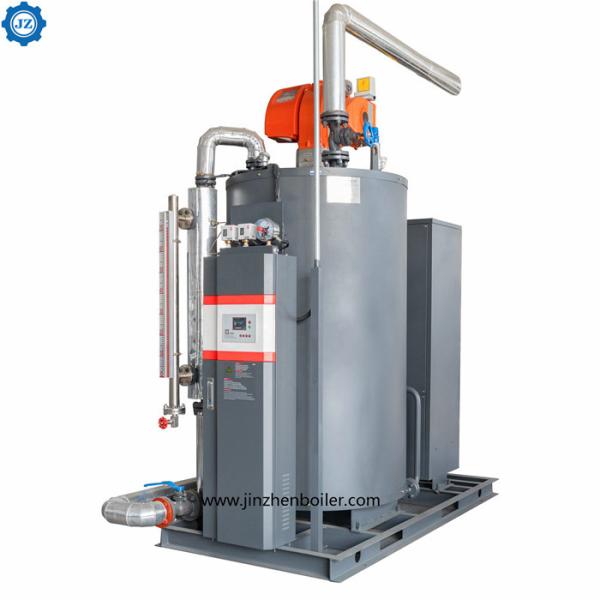

100kg/Hr Fuel Light Oil Diesel Steam Boiler For Alcohol Factory

1,Boiler liner uses internationally advanced three-pass vertical water pipe tubular structure

2,The steam boiler and burner as a whole to design,.

3,Internal built-in steam separator

Boiler Specification

Boiler Advantage

1. No annual inspection, no operation certificate

The product has a water volume of 48.2L. Within the specified range, this type of boiler does not need to apply for a boiler use certificate, does not require boiler annual inspection, does not require a personnel operation certificate, and is convenient and simple to use;

2. Internationally advanced vertical tubular water tube boiler structure

The tubular boiler has no drum, and the boiler body is composed of upper and lower headers, tubes, etc., so it is a safe boiler structure among all boilers;

3. Multi-chain security protection

Electronic overpressure protection, mechanical safety valve overpressure protection, water shortage protection, scale monitoring protection, leakage protection, overheating protection, burner flameout protection, water level logic error protection, etc.;

4. High-efficiency ω-enclosed flue gas heat exchange process

This structure has extremely high heat exchange efficiency between the flue gas and the water pipe, and the inner ring hot water exchange pipe and the outer ring hot water exchange pipe form a natural circulation process, which effectively reduces the salt content of the boiler and reduces the scaling rate;

5. Equipped with integrated (energy saving + condensation) condensing heat exchanger

The exhaust gas tail is equipped with a high-temperature economizer and a low-temperature condenser. The exhaust gas temperature is as low as 65℃. After the natural gas is burned, the water vapor condenses to release a large amount of high latent heat value, which fully absorbs the high heat value of natural gas, and the thermal efficiency reaches more than 99%; The heat exchanger is made of anti-corrosion ND steel, which is durable

6, 5 minutes to produce steam

The tubular boiler has a small water capacity and short steaming time. It only takes 5 minutes to produce steam, and the rated steam pressure can be reached in 10 minutes. The use of steam is fast and flexible;

7. Innovative downcomer water pipe layout

The natural circulation downcomer is added to ensure the reasonable water circulation of the boiler;

Vertical Steam Boiler System

Boiler Application

Henan Jinzhen Boiler Co., Ltd is a professional industrial boiler manufacturer that specialized in the environment-friendly steam boiler, hot water boiler, thermal oil boiler and pressure vessels’ design, manufacture, installation, maintenance. Jinzhen Boiler factory is located in beautiful Zhoukou City which nearby Zhengzhou Airport, Shangqiu Railway Station, gets convenient traffic.We have over 6,000sq.m. building area, 105 employees, annual sales amount exceeds 25,000,000USD which includes 25% export amount in worldwide.

Jinzhen boilers include more than 150 kinds. There are:
(1) DZL coal/biomass fired steam boiler(1-20ton/h;)
(2) DZH wood fired steam boiler(0.5-6ton/h;)
(3) SZL biomass/coal fired steam boiler(4-25ton/h;)
(4) WNS series gas/oil fired steam boiler(0.5-20ton/h;)
(5) YLL(W) series coal/biomass fired thermal oil boiler(150,000-16,000,000Kcal)
(6) YY(Q)W gas /oil fired thermic fluid heater(150,000kcal-12,000,000Kcal)

All industrial boilers comply with GB/T quality standards and are greatly appreciated in a variety of markets throughout the world.Well-equipped facilities and excellent quality control throughout all production stages to totally guarantee customers' satisfaction.

As a result of high quality boiler and outstanding customer service, we have gained a global sales network reaching America, Australia, Mexico, Vietnam, Russia, Kazakhstan, South Africa, Syria,South Africa, Ethiopia, etc.
