Waste Tire Pyrolysis Oil Distillation To Diesel Oil Refinery Plant
Waste Motor Oil Distillation plant can process waste engine oil,
used motor oil, black oil, tire oil, plastic oil
to clean diesel. This kind of diesel can be used to tractors,
trucks, diesel oil generator, power generator etc.
Oil recovery average rate: 85%-95%. Unique design and outstanding
functions can help customer create more profit.
This equipment is matched with pyrolysis plant. It is widely
applied in waste oil management industry.
This machine will need one-time catalyst which is produced by our
company only, there is no need to buy from other catalyst factory
as we have the catalyst formula .it is customized.
The pyrolysis oil with black color after distillation and remove
color and smell , we will get synthetic diesel oil with yellow
color,which can be used for diesel engines like trucks , tractors ,
ships etc.
| No. | End Production | Yield | Usage |
| 1 | Diesel | 73% | Used for diesel engine |
| 2 | Gasoline | 12% | Used for gasoline engine |
| 3 | Residue Oil | 9% | * Feeding into Pyrolysis Machine for second Pyrolysis
* Sold directly for building road |
| 4 | Non-Condensible Gas | 3% | Recycle as Heating fuel after treated by Gas-treatment System |
| 5 | Other | 3% | * Water and impurity 2%
* Loss 1% |
Working process of waste engine oil distillation machine
1. Pump waste oil into distillation reactor by oil pump.
2. Heat the reactor, and the liquid oil will slowly become oil gas,
oil gas will go through catalytic chamber and
condenser, then diesel will be cooled out first by controlling the
temperature over 150 Celsius degrees.
3.The gasoline will be cooled out when the temperature is below 150
Celsius degrees, the rest of the system is
same as pyrolysis system.
SPECIFICATIONS FOR USED ENGING OIL RECYCLING MACHINE |
| 5TPD, 10TPD, 20TPD, 30TPD...300TPD |
| Continuous Working, Semi-Continuous Working |
| Fully Automatic, Semi-Automatic |
| Crude Oil, Used Engine Oil, Waste Hydraulic Oil, Plastic Oil, Tyre
Oil, Mixed Waste Oil, Other waste oil as customer required |
| Fuel Oil, Natural Gas, Electric, Coal, Firewood |
| Q345R Steel Plate, Alloy Steel Plate, Stainless Steel |
| Varies by Design and Capacity |
| Catalytic Pyrolysis Distillation, Refined Filtration, Self-made
Gaseous and Liquid Catalyst,etc... |
Technical Advantage
The equipment adopts advanced vacuum distillation technology, only
need to add a small amount of additive
materials which is low cost and easy to buy.
The operation cost of the equipment is low, and the high quality
base oil can be produced with very little cost.
The equipment is easy to operate, only 2 workers can operate.
It can process waste oil, waste motor oil, all kinds of waste
engine oil and other mineral lubricating oil.
Its recovery rate is above 85%.
With high vacuum system, to ensure the equipment under the working
vacuum operation.
We have got ISO9001 and ISO14001 Certifications. And also our
products are equipped with CE Certification that
we have the rights to export our waste oil recycling machine to
European. We also have got SGS certificate for
our pyrolysis oil products you can check the oil quality features
from the analysis and chose the right market for
the end products.
we use one 40'FR container to load the reactor, and use the 40'HQ
containers to load the cooling device, dedust
device and some small parts. The reacor is about 9200m
*33400mm*31700mm. It is doable to take 40FR. It is over
width and over height. And Our integrity cooling device is designed
to meet 40HQ size and it is easy to ship and
move the site place.
After-sales service
1.Engineers with over ten years’ waste to oil recycling experience
will be dispatched to your place to provide technical service in
guiding plant installation, plant commissioning as well as worker
training.
2.We all know that good plant design and quality are essential, and
good installation and training service are as important as or even
more important than good plant design and quality. It is very
dangerous if clients can not install or run the plant properly.
3.So, after plant installation finishes, our engineers are required
to help you run the plant for at least 15 batches, enabling your
workers to master all the operating skills needed and then operate
the plant on their own.
FAQ of waste engine oil distillation machine
Q: Are there any bad smell or odor from waste tyre oil distillation
equipment while distillation system is working?
A: There will be no smell at all as the gas produced by waste oil
distillation plant will be purified by our exclusive tail gas
purification unit before emission.
Q: What is the yield of this waste tyre oil distillation equipment?
A: Typically the yield of our waste oil distillation plant is
between 85-90% (depending on variations of water content, light HC
and others ingredients from waste oil.)
Q: How many areas are required to build the waste tyre oil
distillation equipment?
A: The land area required usually depends on the capacity of your
plant. We can calculate the area needed and give you the plant
designs.
Q: What is the warranty of the waste tyre oil distillation
equipment?
A: 12 months free guanantee and life long standard paid service.
Q: Can you install the production line and train our stuffs?
A: Yes we can. We'll send engineers to help you install the waste
oil distillation plant and train your workers until the machine is
skillfully operated.

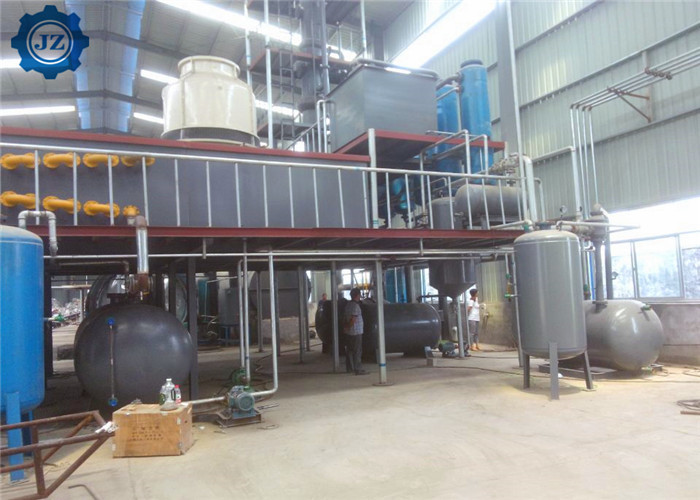

Successful Case
