Waste Tire Pyrolysis Oil Distillation To Diesel Oil Refinery Plant
The Latest technology 5-30T waste oil distillation machine to
diesel is amazing technical solution for different waste oil such
as waste engine oil, pyrolysis oil, sludge oil, mud oil ,very thick
dirty impurities oil. This technology is mainly to use steam
generator to make steam which can have effection with oil gas to
reduce pressure to vacuum level.then when the operation is going
on,diesel can be produced at 300℃ -550℃,however,now the highest
temperature is 300℃ -380℃.in this way oil quality will be highly
improved and also fuel can be used less.
The pyrolysis oil with black color after distillation and remove
color and smell , we will get synthetic diesel oil with yellow
color,which can be used for diesel engines like trucks , tractors ,
ships etc.
| No. | End Production | Yield | Usage |
| 1 | Diesel | 73% | Used for diesel engine |
| 2 | Gasoline | 12% | Used for gasoline engine |
| 3 | Residue Oil | 9% | * Feeding into Pyrolysis Machine for second Pyrolysis
* Sold directly for building road |
| 4 | Non-Condensible Gas | 3% | Recycle as Heating fuel after treated by Gas-treatment System |
| 5 | Other | 3% | * Water and impurity 2%
* Loss 1% |

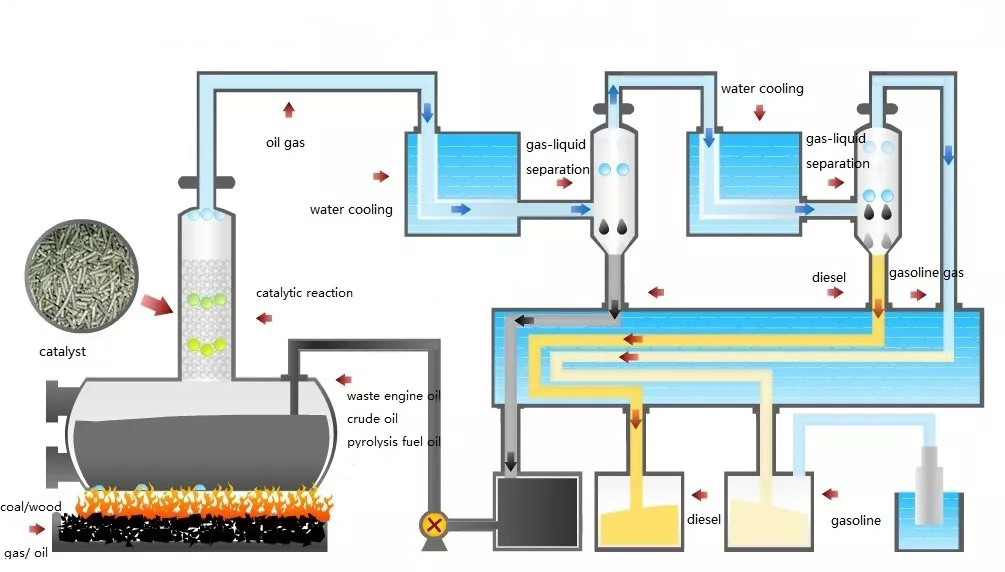

Working process of waste engine oil distillation machine
1. Heat the heat conduction oil with the heat conduction oil
furnace;
2. The heat conducting oil flows into the coil in the distillation
reactor and heats the waste engine oil in the distillation reactor;
3. When the waste engine oil is heated to a certain temperature,
the reactor is directly heated with fuel. As the temperature
increases,the waste engine oil produces oil and flows into the
buffer tank. The odorous light components in the waste engine oil
can be distilled and collected into the distillation tank.
4. The oil gas from the buffer tank enters the catalytic tower. In
the catalytic tower the macromolecular oil gas are broken down into
smaller molecules.
5. Oil gas of small molecules enter the cooling system through the
catalytic tower and are cooled into liquid oil;
6. After the oil gas steam out,the distillation reactor memory has
plenty of hot asphalt, which can be extracted by the asphalt pump.
SPECIFICATIONS FOR USED ENGING OIL RECYCLING MACHINE |
| 5TPD, 10TPD, 20TPD, 30TPD...300TPD |
| Continuous Working, Semi-Continuous Working |
| Fully Automatic, Semi-Automatic |
| Crude Oil, Used Engine Oil, Waste Hydraulic Oil, Plastic Oil, Tyre
Oil, Mixed Waste Oil, Other waste oil as customer required |
| Fuel Oil, Natural Gas, Electric, Coal, Firewood |
| Q345R Steel Plate, Alloy Steel Plate, Stainless Steel |
| Varies by Design and Capacity |
| Catalytic Pyrolysis Distillation, Refined Filtration, Self-made
Gaseous and Liquid Catalyst,etc... |
Environmental Protection
For water, it is used in two parts. In the cooling system, all the
water is recycling, some water is evaporate due to high
temperature, in some times, we just need to add water, no water
emission. In the dedust system, the water is recycling, too.Due to
the chemical reaction, the water is cleaned in the pool and
recycled to dust removing device. No water emission.
About the gas, it includes two parts. First is the syngas, it is
recycled to the furnance for heating, no emission. Another is the
smoke, it is caused by the heating material. And it is clearned by
water in the dedust system.NO emission, too.
About the carbon black, we do the futher process and our
discharging system is fully closed, no slag flies out. No slag
emission.
About the noise , we design draft fan with low noise and make it
under international standard.
Above all, all the design can reach the international environmenal
standard.
After-sales service
1.Engineers with over ten years’ waste to oil recycling experience
will be dispatched to your place to provide technical service in
guiding plant installation, plant commissioning as well as worker
training.
2.We all know that good plant design and quality are essential, and
good installation and training service are as important as or even
more important than good plant design and quality. It is very
dangerous if clients can not install or run the plant properly.
3.So, after plant installation finishes, our engineers are required
to help you run the plant for at least 15 batches, enabling your
workers to master all the operating skills needed and then operate
the plant on their own.
FAQ of waste engine oil distillation machine
Q: Are there any bad smell or odor from waste tyre oil distillation
equipment while distillation system is working?
A: There will be no smell at all as the gas produced by waste oil
distillation plant will be purified by our exclusive tail gas
purification unit before emission.
Q: What is the yield of this waste tyre oil distillation equipment?
A: Typically the yield of our waste oil distillation plant is
between 85-90% (depending on variations of water content, light HC
and others ingredients from waste oil.)
Q: How many areas are required to build the waste tyre oil
distillation equipment?
A: The land area required usually depends on the capacity of your
plant. We can calculate the area needed and give you the plant
designs.
Q: What is the warranty of the waste tyre oil distillation
equipment?
A: 12 months free guanantee and life long standard paid service.
Q: Can you install the production line and train our stuffs?
A: Yes we can. We'll send engineers to help you install the waste
oil distillation plant and train your workers until the machine is
skillfully operated.

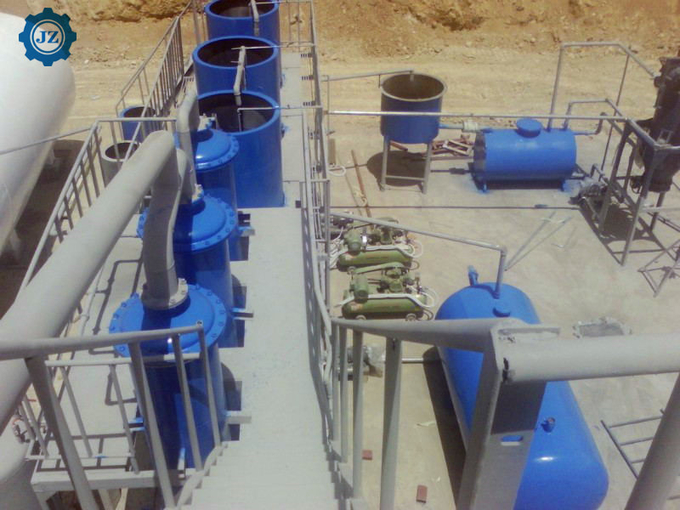

Successful Case
