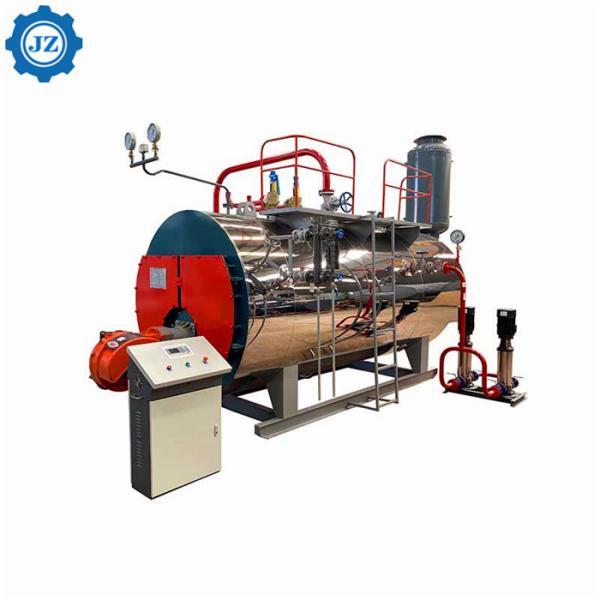

Quick-Assembly Industrial Package Fire Tube Steam Boiler With Baltur / Riello Burner

WNS series quick assembly gas and oil fired steam boiler, classical shell, 3pass, and fire tube design. Contains boiler proper, burner, water level/ pressure control system, economizer, exhaust flue system, valves, etc. Due to their reliable quality and steady performance, WNS series boilers have become the most popular products worldwide.

Steam capacity: 0.5-4Ton/h
Working Pressure: ≤1.6MPa
Fuel Type: Gas (natural gas, LPG, Biogas), light oil (2#diesel, Kerosene), heavy oil (6# fuel oil, crude oil)
Application: Textile, Garment, Food & Beverage, Cement Curing, Disinfection, etc.

Technical Parameter

Boiler Feature
Special Structure and High Efficiency: Adopting corrugated furnace, threaded fire tubes, 3 fire-passes structure, full wetback design, markedly increased boiler’s heating area and heat transfer efficiency. It is equipped with renowned brand burners (BALTER, RIELLO, HOFAMAT, and ECOFLAM); also finned tube-type economizer can ensure boiler’s thermal efficiency up to 95%.

High-Quality Control: In manufacturing processes, we have adopting steel strength test, automatic steel cutting/ plate rolling/ welding, 100% x-ray welding check, magnetic particle check c-scan ultrasonography check, fluorescent penetrating check, hydraulic (water) pressure test, boiler thermal efficiency tested, to make sure all finished products are qualified.

Automatic Safe Operation: WNS series industrial steam boiler is equipped with automatic burner ignition, automatic water-level control, automatic pressure control, automatic interlock chain stop protection, free settable working pressure, free settable ON/OFF time, visible system’s working states on screen.

Easy Maintenance: horizontal gas oil fired steam boiler uses full water back tube-sheets instead of traditional dry-back tube-sheet can avoid the dry-fire broken, and reduce the range of steel cooling contraction and hotting expansion. Also, we adopting openable smoke-boxes, users can replace the broken fire tubes conveniently.

PLC full automatic control system
PLC modular control system enhanced energy management system, offers significant advancements including many new individual monitoring points. With our optimized parameter setting ,the easy-to-use interface provides your facility with an intelligent boiler system to optimize energy and personnel management for increased productivity, efficiency and a reduced environmental impact.

Boiler Application
Textile industry: shrinking machine, dry cleaning machine, dryer, washing machine, dehydration machine, printing, ironing machine, iron and other equipment.
Food machinery industry: steamer, tofu machine, sterilization tank, packaging machines, paint equipment, sealing machines and other equipment.
Other industries: automotive steam cleaning industry, hotels, hotels, schools, enterprises and other hot water supply, bridges, railway concrete conservation and other industries.

Boiler Picture

Henan Jinzhen Boiler Co., Ltd is a professional industrial boiler manufacturer that specialized in the environment-friendly steam boiler, hot water boiler, thermal oil boiler and pressure vessels’ design, manufacture, installation, maintenance. Jinzhen Boiler factory is located in beautiful Zhoukou City which nearby Zhengzhou Airport, Shangqiu Railway Station, gets convenient traffic.We have over 6,000sq.m. building area, 105 employees, annual sales amount exceeds 25,000,000USD which includes 25% export amount in worldwide.

Jinzhen boilers include more than 150 kinds. There are:
(1) DZL coal/biomass fired steam boiler(1-20ton/h;)
(2) DZH wood fired steam boiler(0.5-6ton/h;)
(3) SZL biomass/coal fired steam boiler(4-25ton/h;)
(4) WNS series gas/oil fired steam boiler(0.5-20ton/h;)
(5) YLL(W) series coal/biomass fired thermal oil boiler(150,000-16,000,000Kcal)
(6) YY(Q)W gas /oil fired thermic fluid heater(150,000kcal-12,000,000Kcal)

All industrial boilers comply with GB/T quality standards and are greatly appreciated in a variety of markets throughout the world.Well-equipped facilities and excellent quality control throughout all production stages to totally guarantee customers' satisfaction.

As a result of high quality boiler and outstanding customer service, we have gained a global sales network reaching America, Australia, Mexico, Vietnam, Russia, Kazakhstan, South Africa, Syria,South Africa, Ethiopia, etc.
