2ton/Hour, 2000kg/H, 150HP Horizontal Heavy Oil Gas Fired Steam
Boiler for Cement Curing
1.Model:WNS series industrial steam boiler
2.Structure:horizontal fire tube, wet back, three pass
3.Steam Capacity:1-20ton/hour
4.Steam
Pressure:1.0Mpa(10bar),1.25Mpa(13bar),1.6Mpa(16bar),2.5Mpa(25bar)
5.Steam Temperature:184C,194C, 204C,226C(As long as the steam
temperature you need is lower than 226C, we can do it).
6.Fuel:heavy oil, light oil, natural gas, city gas, lpg,lng,etc
7.Application: textile mill, food, beer and brewery
factory,chemical industry, garment factory, printing mill, paper
masking industry,milk pasteurization, pharmaceutical industry etc.
WNS series automatic gas(oil) fired steam boiler adopts the
advanced structure. The structure is horizontal internal combustion
with three returns. The burning room consists of corrugated
internal furnace and back fire room. The fuel ports from burning
room and combust. The boiler composes boiler body, front-back smoke
rooms, basement, external cover of insulation layer, burner
interface, pipeline, valve and meters, platform and stairs,
instrumentation and safety devices, suited accessories (water
make-up pump, burner) and electric control cabinet.
Technical Parameter
| Model | Rated evaporation | Rated steam | Thermal efficiency | Fuel consumption | Overall dimension | Weight | Body Heating |
Capacity (t/h) | Pressure (Mpa) | (％) | Light oil (Kg/h) | Natural gas (Nm³/h) | (m) | (t) | Area (m2) |
| WNS1-0.7/1.0-Y(Q) | 1 | 0.7/1.0 | >90 | 66.5 | 75 | 3.6×2.0×2.0 | 4 | 25 |
| WNS2-1.0/1.25-Y(Q) | 2 | 1.0/1.25 | >90.2 | 133 | 150 | 4.8×2.5×2.46 | 8 | 60 |
| WNS4-1.0/1.25-Y(Q) | 4 | 1.0/1.25 | >91 | 266 | 300 | 5.8×2.85×2.8 | 13 | 113 |
| WNS6-1.25/1.6-Y(Q) | 6 | 1.25/1.6 | >91.5 | 399 | 450 | 7.25×3.1×3.15 | 19 | 181 |
| WN8-1.25/1.6-Y(Q) | 8 | 1.25/1.6 | >91.6 | 532 | 600 | 7.45×3.26×3.2 | 22.6 | 190 |
| WNS15-1.25/1.6-Y(Q) | 15 | 1.25/1.6 | >91.8 | 997 | 1125 | 8.7×3.7×3.5 | 34 | 346 |
| WNS20-1.25/1.6-Y(Q) | 20 | 1.25/1.6 | >92 | 1204 | 1418 | 10×3.6×4.0 | 45 | 467 |
| Note: Parameter is for reference only, we can design the boilers
based on customers’ demand. |
Performance Advantages
Low-box gas-fired steam boilers adopt a horizontal, two-pass and
fire-tube structure,mainly being composed of a shell, a boiler
furnace, a reversing chamber and a fire tube, etc.
Industrial steam boiler adopts a wet-back structure and a
corrugated furnace, enabling the heating surfaces to be
symmetrically arranged so that the expansion of the boiler and the
stress borne by the boiler can be
reasonable.
The reasonable arrangement of the heating surfaces ensures a good
water circulation and heat exchange, achieving an ideal
heat-transfer effect while greatly improving the heat efficiency of
the boiler.
The nitrogen-oxide emission of the steam boiler is less than or
equal to 30mg/Nm3, reaching the discharge standard of pollutants
(European Class III).
The combustion chamber adopts a corrugated furnace, effectively
reducing the thermal stress of the boiler,significantly improving
the safety of the boiler, and greatly prolonging the functional
life of the boiler.
This condenser steam boiler adopts a globally-famous brand burner
and an advanced fully-automatic control system,achieving a stable
combustion and a convenient, reliable and safer operation of the
boiler. The installation period is short so that the boiler can be
immediately put into use once the instruments & valves, the water
source, the power supply, the fuel pipeline and the discharge
pipeline are communicated on the site.
Quality Inspection
(1).Strength calculation report with applied materials information;
(2).100%NDT(non-destructive inspection) report of steel plate, tube
and welding rod;
(3).100% X-ray inspection(welding seam): ensure the quality of
entire boiler;
(4).Hydrostatic test: ensure the standard working pressure and
safety;
(5).Third-party inspection report:By Henan Boiler Inspection
Institute;
(6).Passed ISO:9001 and SGS certificate.

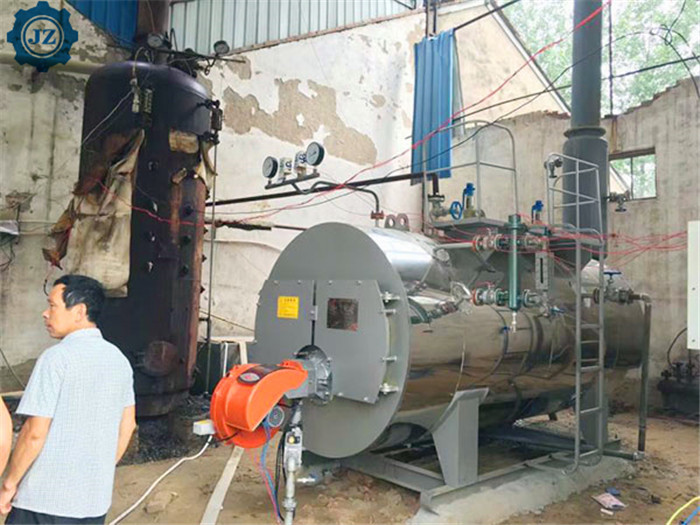

Boiler Details
After Sale Service
Pre-sale Service
Provide free boiler selection service to provide you with a more
suitable boiler and improve your production.
Free boiler operation cost calculation helps you calculate the
boiler production and operation cost and save fuel cost.
Design environmental protection scheme free of charge to ensure
that the local environmental protection policy is met.
On-Sale Service
Provide you with comprehensive and professional technical support,
help you solve all boiler problems, and repair the boiler system
for you.
Provide you with an online delivery service, and you can see your
delivery in real-time.
Provide you with a production tracking service, and you can
regularly understand your boiler production process.
Provide you with installation and commissioning services, and you
can quickly arrange for the factory to be put into operation.
After-sale Service
12 months from the date of bill of lading: if the equipment fails
within the warranty period, we will provide warranty services for
the products sold.
During the warranty period, free warranty service (including some
accessories) can be obtained for faults due to equipment quality or
non-Party A's reasons
Remote support: if the boiler has problems during use, remote
technical support can be provided.
FAQ of industrial steam boiler
1. What are the available fuel for the oil gas fired boiler?
Oil gas fired boiler could burn both liquid fuel and gaseous fuel.
The liquid fuel could be heavy oil, light oil, diesel, furnace oil,
bunker oil, LPG (liquefied petroleum gas), etc. The gaseous fuel
could be natural gas, city gas, bio-gas, etc.
2. Whether the boiler can burn dual fuel or multi-fuel?
Jinzhen boiler have oil burner, gas burner, and oil&gas dual
fuel burner, we can offer the specific burner based on customers’
requirement.
3. What is the texture of spirally corrugated tube?
The texture of spirally corrugated tube is 20#.
4. The brand of boiler burner?
The brands of burner are Italy Baltur, Rellio, Elco, etc.
5. What is the thickness of combustion chamber?
the thickness of corrugated furnace is different based on working
pressure and furnace diameter, generally, the thickness is between
10~18mm, large combustion space, and combustion sufficient.
