3Ton/Hr Low Pressure Diesel Oil Fired Fire Tube Steam Boiler For
Parboiled Rice Processing Plant
WNS series industrial steam boiler is a safe, efficient and fully
automatic heating equipment. This gas/oil fired steam boiler is
horizontal, fire tube, three return, wet back structure, with high
efficiency, small volume, convenient installation, simple
operation, stable operation, wide range of application and other
characteristics.
Model:WNS Type Condenser Steam Boiler
Structure:Wet Back Fire Tube Three Pass
Rated Steam Capacity:1-10 ton/hr
Rated Steam Pressure:7/10/13/16/25 bar
Rated Steam Temperature:170/184/194/204/225 C
Application:Textile Mill,Food and Beverage,Chemical,Medicine,Light
Industry,Rubber,Printing and Dyeing Plant,Paper Mill,
Wood Processing,Garment and Laundry etc
Technical Parameter
| Model | Rated evaporation | Rated steam | Thermal efficiency | Fuel consumption | Overall dimension | Weight | Body Heating |
Capacity (t/h) | Pressure (Mpa) | (％) | Light oil (Kg/h) | Natural gas (Nm³/h) | (m) | (t) | Area (m2) |
| WNS1-0.7/1.0-Y(Q) | 1 | 0.7/1.0 | >90 | 66.5 | 75 | 3.6×2.0×2.0 | 4 | 25 |
| WNS2-1.0/1.25-Y(Q) | 2 | 1.0/1.25 | >90.2 | 133 | 150 | 4.8×2.5×2.46 | 8 | 60 |
| WNS4-1.0/1.25-Y(Q) | 4 | 1.0/1.25 | >91 | 266 | 300 | 5.8×2.85×2.8 | 13 | 113 |
| WNS6-1.25/1.6-Y(Q) | 6 | 1.25/1.6 | >91.5 | 399 | 450 | 7.25×3.1×3.15 | 19 | 181 |
| WN8-1.25/1.6-Y(Q) | 8 | 1.25/1.6 | >91.6 | 532 | 600 | 7.45×3.26×3.2 | 22.6 | 190 |
| WNS15-1.25/1.6-Y(Q) | 15 | 1.25/1.6 | >91.8 | 997 | 1125 | 8.7×3.7×3.5 | 34 | 346 |
| WNS20-1.25/1.6-Y(Q) | 20 | 1.25/1.6 | >92 | 1204 | 1418 | 10×3.6×4.0 | 45 | 467 |
| Note: Parameter is for reference only, we can design the boilers
based on customers’ demand. |
Performance Advantages
3. Full Automatic Control
Adopts PLC full automatic intelligent control cabinet and interlock
protection program, has the protection function of water shortage,
over pressure, over temperature, gas leakage, flame out, electric
leakage, and phrase-lacking or overloading of motor, etc.
4. Low Cost
1) Adopts proprietary technology of Jinzhen Boiler, the boiler is
100% butt welding, high quality, and long working life, low
maintenance fee.
2) The boiler has high combustion efficiency,energy saving, and low
cost on fuel.
5. Save Space
Adopts fast assemble structure, compact structure, convenient for
transportation, small occupation.
6. Convenient Maintenance
1) There are manhole, head hole, and special hand hole on the
boiler. The front and back smoke chambers are equipped with movable
doors, convenient for boiler internal installation, inspection and
clean.
2) The explosion proof door has the fire sight glass and inspection
gallery, convenient for furnace checking and maintaining.

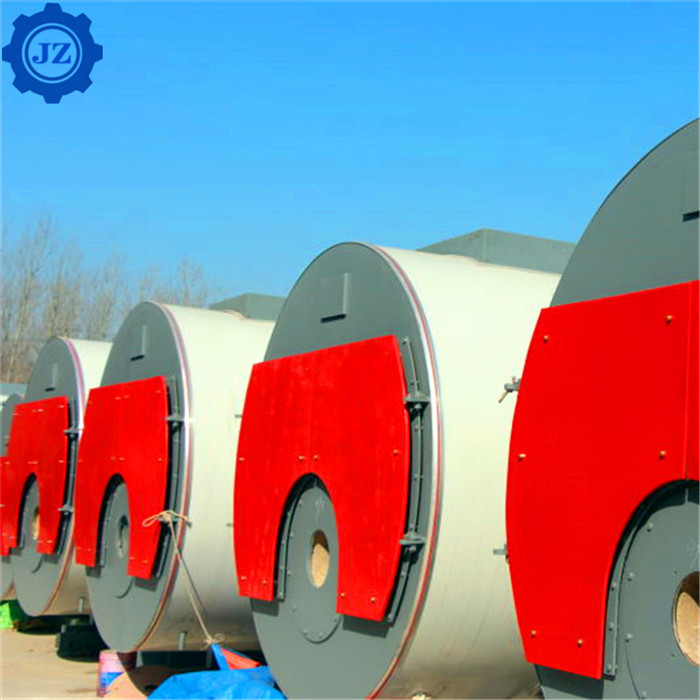

Boiler Details
After Sale Service
Pre-sale Service
Provide free boiler selection service to provide you with a more
suitable boiler and improve your production.
Free boiler operation cost calculation helps you calculate the
boiler production and operation cost and save fuel cost.
Design environmental protection scheme free of charge to ensure
that the local environmental protection policy is met.
On-Sale Service
Provide you with comprehensive and professional technical support,
help you solve all boiler problems, and repair the boiler system
for you.
Provide you with an online delivery service, and you can see your
delivery in real-time.
Provide you with a production tracking service, and you can
regularly understand your boiler production process.
Provide you with installation and commissioning services, and you
can quickly arrange for the factory to be put into operation.
After-sale Service
12 months from the date of bill of lading: if the equipment fails
within the warranty period, we will provide warranty services for
the products sold.
During the warranty period, free warranty service (including some
accessories) can be obtained for faults due to equipment quality or
non-Party A's reasons
Remote support: if the boiler has problems during use, remote
technical support can be provided.
FAQ of industrial steam boiler
1. What are the available fuel for the oil gas fired boiler?
Oil gas fired boiler could burn both liquid fuel and gaseous fuel.
The liquid fuel could be heavy oil, light oil, diesel, furnace oil,
bunker oil, LPG (liquefied petroleum gas), etc. The gaseous fuel
could be natural gas, city gas, bio-gas, etc.
2. Whether the boiler can burn dual fuel or multi-fuel?
Jinzhen boiler have oil burner, gas burner, and oil&gas dual
fuel burner, we can offer the specific burner based on customers’
requirement.
3. What is the texture of spirally corrugated tube?
The texture of spirally corrugated tube is 20#.
4. The brand of boiler burner?
The brands of burner are Italy Baltur, Rellio, Elco, etc.
5. What is the thickness of combustion chamber?
the thickness of corrugated furnace is different based on working
pressure and furnace diameter, generally, the thickness is between
10~18mm, large combustion space, and combustion sufficient.
6. What is the advantages of fire tube boiler?
This fire tube boiler has compact structure and convenient
operation, strong load adaptability, lower water quality
requirement, and the failure rate of it is lower than 0.1!
