500kg/H Small LPG Gas Diesel Dual Fuel Oil Fired Steam Boiler Price
For Food Mill Factory
LSS type vertical automatic steam generator without inspection has
simple and accurate control technology, high thermal efficiency,
short preheating time, and adopts arc-shaped tube structure to make
the heat and cold exchange uniform and reach the set pressure at a
higher speed. The steam pressure can reach 0.4mpa within 5-8
minutes after starting up. It is controlled by a one-key start
button, and up to 4 time periods can be set to automatically start
up and run. The equipment is equipped with multiple protection
measures such as automatic water filling, pressure control, water
shortage protection and alarm, automatic shutdown of extremely low
water level, overpressure protection, and overpressure safety
valve.
Technical Parameter
| Boiler Model | LSS0.1 | LSS0.2 | LSS0.3 | LSS0.5 | LSS0.7 | LSS1 |
| Rated steam capacity(kg/h) | 100 | 200 | 300 | 500 | 700 | 1000 |
| Rated steam pressure(bar) | 4 | 4 | 4 | 4/7 | 4/7 | 4/7 |
| Rated steam temperature(℃) | 151 | 151 | 151 | 151(170) | 151 | 151 |
Fuel consumption (Nm3/h) | natural gas | 8.5 | 17 | 25.5 | 42.5 | 62 | 78 |
| diesel | 6.4 | 12.8 | 19.2 | 32 | 49.5 | 65 |
| lpg | 3.1 | 6.2 | 9.3 | 15.5 | 22 | 28 |
| Weight(kg) | 632 | 850 | 991 | 20181657 | 1739 | 2561 |
| Size(mm) | 1676*φ708 | 1822*φ838 | 1956*φ988 | 2190*φ1158 | 2420*φ1258 | 2468*φ1358 |
Boiler Feature
1. Quick steam generation
Steam is quickly generated (3-5 minutes) after the boiler is
started, and it reaches high temperature and pressure soon.
2. High thermal efficiency
(1) Vertical water pipe membrane wall structure,increase heat
absorption area,reduce heat loss,save fuel.
(2) Equipped with energy saver, improve thermal efficiency.
3. High-end automatic control system
National standard electric control components , can realize the
automatic operation stablely.
4. High security
(1) Very small internal water capacity, does not need annual
inspection
(2) Equipped with safety interlock device, such as water shortage,
overpressure, overtemperature, air leakage, motor overload and
other safety protection functions.
5. High reliability
(1) The vertical steam boiler is manufactured according to the
standard of large steam boiler.
(2) Safety protection devices: pressure controller, pressure
transmitter, safety valve, pressure gauge, water level automatic
control, etc.
6. Exquisite structure
Unique appearance design,small and practical.
Boiler Application
1. Washing ironing industry: dry washer, dryer and washing machine,
dryer, ironing machine, electric iron, and other ancillary
equipment.
2. Food machinery industry: tofu machine, steam box, sterilization
pot, packing machine, coating equipment, sealing machine, such as
supporting the use of equipment
3. Biological chemical industry: fermentation tank, reaction
kettle, sandwich pot, mixer, emulsifying machine supporting the use
of equipment
4. Other industries: oil field, car steam cleaning industry,
(hotel, school, dormitory, batch plant) hot water supply, (Bridges,
railways) concrete curing, leisure (salon), sauna bath, heat
exchange equipment.

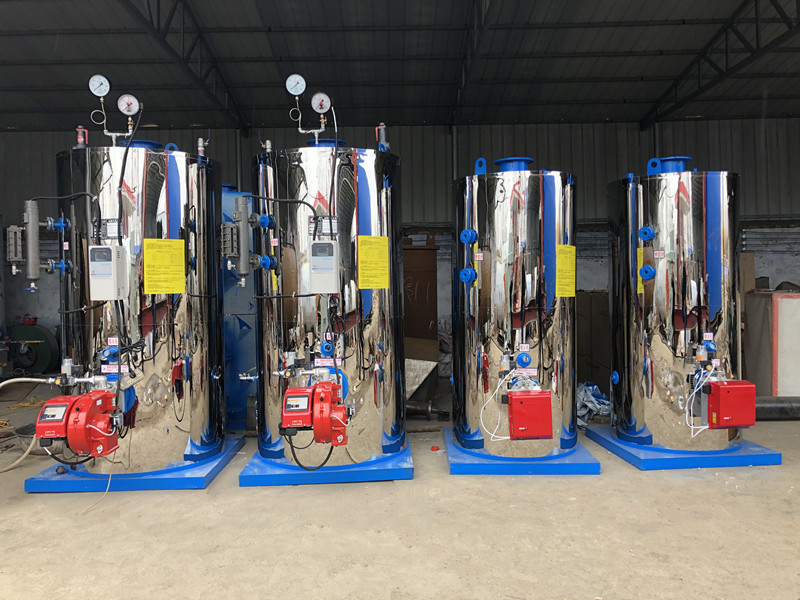

Successful Installation Case
