China Industrial Condensing Type Diesel And Gas Fired Steam Boiler
For Dairy Processing Plant
Model: packaged steam boiler
Structure: Wet Back Fire Tube Three Pass
Rated Steam Capacity:1-25 ton/hr
Rated Steam Pressure:0.7/1.0/1.25/1.6/2.5 Mpa
Rated Steam Temperature:170/184/194/204/225 C
Application:Textile Mill,Food and Beverage,Chemical,Medicine,Light
Industry,Rubber,Printing and Dyeing Plant,Paper Mill,Wood
Processing,Garment and Laundry etc.
WNS series condensing gas fired steam boiler adopts shell type
corrugated furnace structure, two passes design with wet back
smoke-transfer chamber, Spirally corrugated tube technology , air
pre-heater at the front of boiler.The energy-saving condenser at
the top achieves third pass smoke flow,so that fresh air can fully
absorb the waste heat from the flue gas to lower the waste smoke
temperature to 60 degree centigrade. It is split-type frequency
conversion burner, and mature technology, safe and stable
operation, high heat efficiency,and is packaged in stainless steel,
which looks elegant.
Performance Advantages
1. Adopts horizontal type three pass structure, absorbs the thermal
expansion effectively. Uses large diameter corrugated furnace,
large combustion space, high combustion efficiency.
2. Equipped with multiple safety protection devices, such as
pressure controller, pressure transmitter, water level alarm,
safety valve, etc.
3. Adopts PLC full automatic intelligent control cabinet and
interlock protection program, has the protection function of water
shortage, over pressure, over temperature, gas leakage, flame out,
electric leakage, and phrase-lacking or overloading of motor, etc.
4. Equipped with reliable boiler auxiliaries,such as world known
famous burner(Riello, Baltur, Unigas,Weishaupt,etc), international
famous brand water pump(Grundfos, CNP), Siemens brand electric
control elements, Fleck brand water softemner from USA, etc
5. Adopt the latest boiler technology, 100% flaw detection test,
high quality, and long working life, low maintenance fee.
Technical Parameter
| Model | Rated | Rated | Rated | Thermal | Fuel Consumption | Equipment Power | Weight |
Capacity (t/h) | Pressure (Mpa) | Temperature (C) | Efficiency (%) | Light oil (Kg/h) | Natural gas (Nm³/h) | Burn light oil | Burn gas | (t) |
| WNS1 | 1 | 0.7/1.0/1.25 | 170/184/194 | >90 | 45-100 | 18-100 | 1.5 | 1.5 | 4 |
| WNS1.5 | 1.5 | >90.2 | 101.73 | 123.47 | 2.2 | 1.5 | 5 |
| WNS2 | 2 | 1.0/1.25/1.6 | 184/194/204 | >90.2 | 137.09 | 165.97 | 2.2 | 3 | 8 |
| WNS3 | 3 | >91 | 205.75 | 249.6 | 7.5 | 7.5 | 9 |
| WNS4 | 4 | >91 | 272.3 | 329.5 | 9 | 7.5 | 13 |
| WNS5 | 5 | >91.5 | 134-402 | 80-500 | 17.2 | 15 | 15 |
| WNS6 | 6 | >91.5 | 134-402 | 80-500 | 15 | 15 | 17 |
| WN8 | 8 | 1.25/1.6/2.5 | 194/204/225 | >91.6 | 523.4 | 631.5 | 26 | 22 | 21 |
| WNS10 | 10 | >91.6 | 212-890 | 150-1085 | 26 | 22 | 22 |
| WNS12 | 12 | >91.8 | 915.5 | 1090 | 26 | 22 | 27 |
| WNS15 | 15 | >91.8 | 931.5 | 1094.4 | / | / | 34 |
| WNS20 | 20 | >92 | 1380.33 | 1598.44 | / | / | 45 |
| Note: Parameter is for reference only, we can design the boilers
based on customers’ needs. |

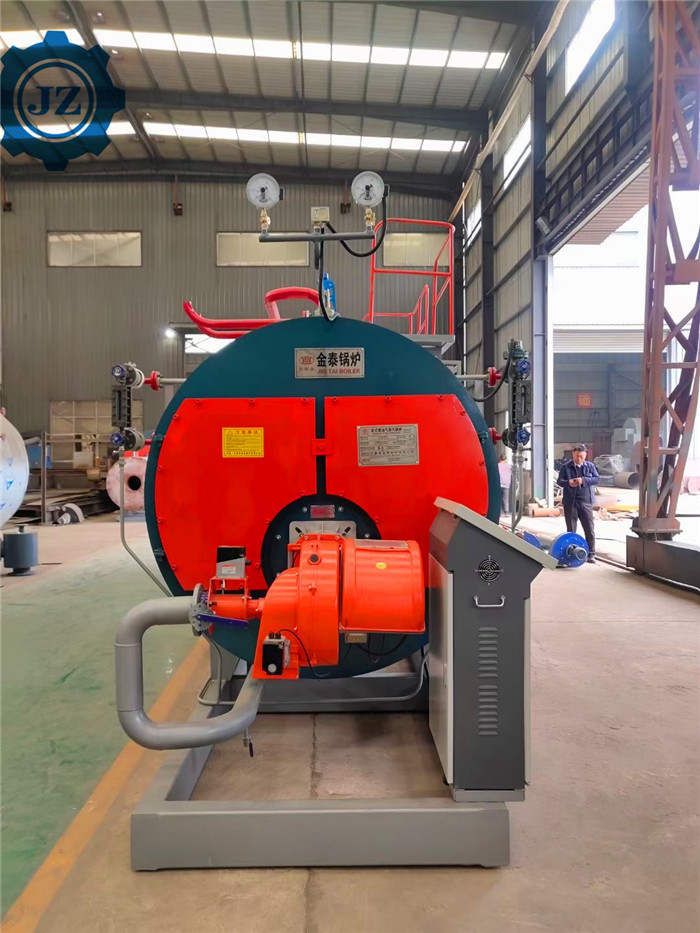

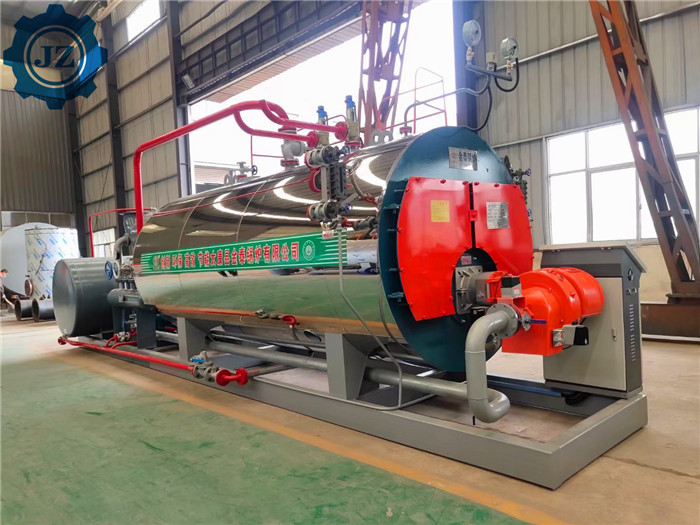

Boiler Picture
Boiler Application
Gas fired steam boiler is being widely used in hospitals, schools,
textile mills, garment factories, large supermarket, garment
factories, dyeing factory, hotel, dining room, dining room,
swimming pool, food factory, beverage factory, soy products, meat
products factory, cannery, brewery, pharmaceutical factory, packing
plants, building materials factory, paint factory and other places
of the enterprises and institutions.
FAQ
Why choose our boiler?
1. Lower dust emission & SO2 emission & NOx emission, dust emission
concentration < 30mg/m³, SO2 & NOx emission concentration <
30mg/m³.
2. We have strict quality control system. From the material,
welding, to finished boiler shipment, from project , establishment,
drawing design, to final audit.
3. Each boiler system part is from first class brand all over the
world or China, ensure the high quality.
4. We can offer the best after sales services and send our engineer
to your factory to give you the complete installation and comssion
guidance.
