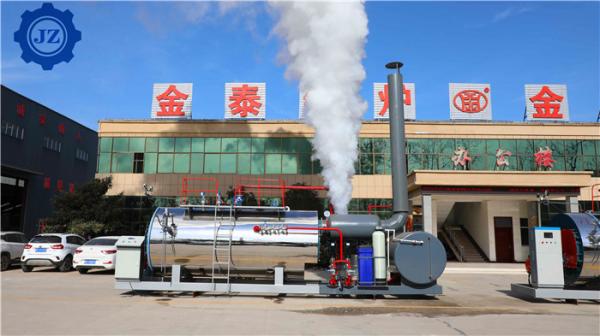

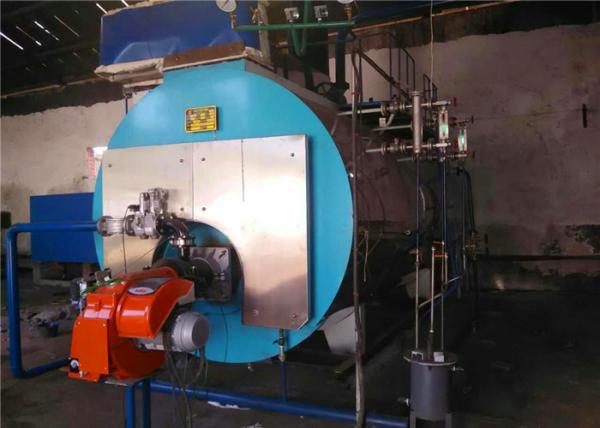

2 Ton Industrial Oil Or Gas Fired Steam Boiler For Oil Press And
Refinery Plant
General Introduction
Model: industrial gas oil fired steam boiler
Structure:horizontal fire tube, wet back, three pass
Steam Capacity:1-20ton/hour
Steam
Pressure:1.0Mpa(10bar),1.25Mpa(13bar),1.6Mpa(16bar),2.5Mpa(25bar)
Steam Temperature:184 °c,194°c, 204°c,226°c(As long as the steam
temperature you need is lower than 226°c, we can do it).
Fuel:heavy oil, light oil, natural gas, city gas, lpg,lng,etc
Application: textile mill, food, beer and brewery factory,chemical
industry, garment factory, printing mill, paper masking
industry,milk pasteurization, pharmaceutical industry etc.
The gas-fired steam boiler adopts the structure of mechanical and
electrical integration, with generous appearance, compact
structure, less space occupation, convenient transportation and
less capital investment. It not only follows the concept of energy
conservation and environmental protection, but also meets the
thermal energy required by the project. In terms of production and
use, this kind of boiler really achieves clean combustion,
pollution-free emission, convenient operation and sufficient
output.
Performance Advantages
Special Structure and High Efficiency: All system is well mounted
on the base, its system is portable. The users no need to consider
the pipeline installation, wire connection. After receiving the
goods, just supply water, electricity, fuel. It is equipped with
renowned brand burners(BALTUR, RIELLO, HOFAMAT, ECOFLAM), also
finned tube type economizer can ensure boiler's thermal efficiency
up to 95%.
High Quality Control: In manufacturing processes, we has adopting
steel strength test, automatic steel cutting plate rolling/
welding,100% x-ray welding check, magnetic particle check c-scan
ultrasonography Ultrasound check, fluorescent pene-trating check,
hydraulic (water) pressure test, boiler thermal efficiency test,
etc, to make sure all finished products is qualified.
Automatic Safe Operation: WNS series package steam boiler is
equipped automatic burner ignition, automatic water-level control,
auto-matic pressure control, automatic interlock chain stop
protection, free settable working pressure, free settable ON/OFF
time, visible system's working states on screen.
Easy Maintenance: WNS series steam boiler uses full water back
tube-sheets instead of traditional dry back tube-sheet, can avoid
the dry-fire broken, reduce the range of steel cooling contraction
and hotting expansion. Also, we adopting openable smoke-boxes,
users can replace the broken fire-tubes conveniently.
Technical Parameter
| Model | Rated | Rated | Rated | Thermal | Fuel Consumption | Equipment Power | Weight |
Capacity (t/h) | Pressure (Mpa) | Temperature (C) | Efficiency (%) | Light oil (Kg/h) | Natural gas (Nm³/h) | Burn light oil | Burn gas | (t) |
| WNS1 | 1 | 0.7/1.0/1.25 | 170/184/194 | >90 | 45-100 | 18-100 | 1.5 | 1.5 | 4 |
| WNS1.5 | 1.5 | >90.2 | 101.73 | 123.47 | 2.2 | 1.5 | 5 |
| WNS2 | 2 | 1.0/1.25/1.6 | 184/194/204 | >90.2 | 137.09 | 165.97 | 2.2 | 3 | 8 |
| WNS3 | 3 | >91 | 205.75 | 249.6 | 7.5 | 7.5 | 9 |
| WNS4 | 4 | >91 | 272.3 | 329.5 | 9 | 7.5 | 13 |
| WNS5 | 5 | >91.5 | 134-402 | 80-500 | 17.2 | 15 | 15 |
| WNS6 | 6 | >91.5 | 134-402 | 80-500 | 15 | 15 | 17 |
| WN8 | 8 | 1.25/1.6/2.5 | 194/204/225 | >91.6 | 523.4 | 631.5 | 26 | 22 | 21 |
| WNS10 | 10 | >91.6 | 212-890 | 150-1085 | 26 | 22 | 22 |
| WNS12 | 12 | >91.8 | 915.5 | 1090 | 26 | 22 | 27 |
| WNS15 | 15 | >91.8 | 931.5 | 1094.4 | / | / | 34 |
| WNS20 | 20 | >92 | 1380.33 | 1598.44 | / | / | 45 |
| Note: Parameter is for reference only, we can design the boilers
based on customers’ needs. |
Industrial steam boiler body processing equipment advanced,
exquisite technology, to ensure the quality of the boiler
The key processing technology of steel plate blanking, ring circle,
tube plate drilling and so on adopts advanced NUMERICAL control
processing technology, reduces assembly stress, and extends the
service life of boiler.
Front and rear smoke box panels are cut by CNC plasma cutting
machine, neat and beautiful.
The welding between smoke pipe and tube plate is predilated first
to eliminate the gap between the pipe and tube plate, and then the
welding process of argon arc automatic welding is adopted to
effectively eliminate the stress.
The boiler longitudinal and circular seam welding adopt the
advanced submerged arc automatic welding technology to ensure the
welding quality.
Application
Disel fired steam boiler is being widely used in hospitals,
schools, textile mills, garment factories, large supermarket,
garment factories, dyeing factory, hotel, dining room, dining room,
swimming pool, food factory, beverage factory, soy products, meat
products factory, cannery, brewery, pharmaceutical factory, packing
plants, building materials factory, paint factory and other places
of the enterprises and institutions.
FAQ
1. What are the available fuel for the oil gas fired boiler?
Oil gas fired boiler could burn both liquid fuel and gaseous fuel.
The liquid fuel could be heavy oil, light oil, diesel, furnace oil,
bunker oil, LPG (liquefied petroleum gas), etc. The gaseous fuel
could be natural gas, city gas, bio-gas, etc.
2. Whether the boiler can burn dual fuel or multi-fuel?
boiler have oil burner, gas burner, and oil&gas dual fuel
burner, we can offer the specific burner based on customers’
requirement.
3. What is the thickness of combustion chamber?
the thickness of corrugated furnace is different based on working
pressure and furnace diameter, generally, the thickness is between
10~18mm, large combustion space, and combustion sufficient.
4. What is the inlet pressure of gas burner?
The inlet gas pressure is different for different capacity boiler,
for example, the pressure for 2 ton steam capacity boiler is about
8~10KPa, while for 4 ton steam capacity boiler is about 18~20KPa.
5.The brand of burner?
The brands of burner are Italy Baltur, Rellio, Elco, etc.
