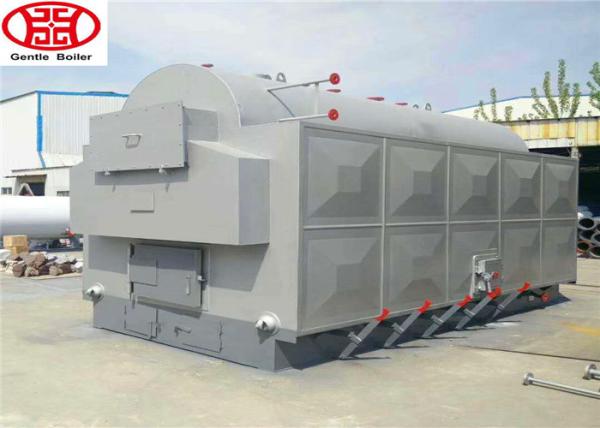

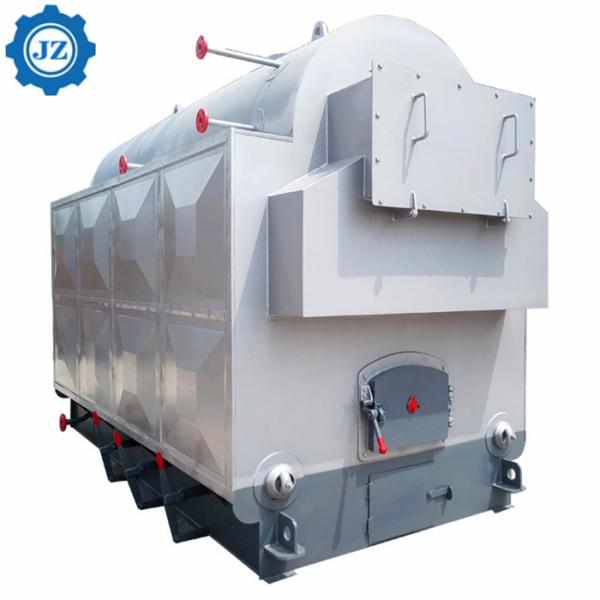

0.5 ton to 4ton Industrial Wood/Biomass Fired Steam Boiler For
washing & laundry house
DZH type active grate biomass steam boiler has a wide range of fuel
sources. It is a renewable green energy source. It contains almost
no sulfur and less ash. Its growth process can absorb all the CO2
generated by the combustion process and achieve zero CO2 emission.
Biomass energy will gradually replace coal and become one of the
main energy sources. Biomass fuels include straw, wood shoots,
bamboo wood processing waste, grain shell skin, fruit shells, sugar
residue, oil residue, and so on.Compared with coal-fired boilers,
biomass fuels are less expensive and significantly reduce operating
costs.
Structure
The fuel enters the furnace and burns on the grate. The flue gas
from the production enters the convection tube bundle on both wings
along the bottom of the boiler barrel through the smoke outlet on
the middle partition wall, enters the threaded smoke pipe through
the front smoke box, passes through the dust collector, and is
pumped and discharged into the atmosphere through the chimney by
the induced draft fan.
Main features of coal fired steam boiler:
1. There are three coal feeding methods: hydraulic push, manual
drive and chain drive.
2. Beautiful appearance: heat insulation material and high color
board outer packing are adopted.Namely heat preservation and energy
saving, and beautiful generous.
3. Simple operation: it can run for several hours at a time, and
users can enjoy 24-hour heating as a power plant.
4. Energy-saving economy: reasonable structure, adiabatic
combustion, high combustion efficiency, obvious energy saving, low
fuel cost.
4. Saving investment: no investment of drum and induced draft fan,
saving electricity cost, the products are fast installed and easy
to install.
5. Environmental protection standards: the upper combustion
mechanism design is adopted to meet the smoke emission standards of
coal-fired boilers, which can be used in a class of environmental
protection areas without disturbing the residents with noise.
Main Parameters
| Item | Unit | DZH1 | DZH2 | DZH3 | DZH4 | DZH6 |
| Steam Capacity | t/h | 1 | 2 | 3 | 4 | 6 |
| Working Pressure | MPa | 1.25/1.6 | 1.25/1.6 | 1.25/1.6 | 1.25/1.6 | 1.25/1.6 |
| Steam Temperature | ℃ | 193/204 | 193/204 | 193/204 | 193/204 | 193/204 |
| Feed Water Temperature | ℃ | 20 | 20 | 20 | 20 | 20 |
| Thermal Efficiency | / | ≥88 |
| Applicable Fuel | / | Wood, Straw, Rice Husk, Biomass Pellet |
| Fuel Consumption | Kg/h | 176.6 | 352.3 | 522.5 | 697 | 1044 |
| Heating Area | m2 | 39.82 | 82 | 120.2 | 174.32 | 239 |
| Grate Area | m2 | 1.97 | 2.7 | 4.1 | 5.43 | 6.7 |
| Total Power | KW | 13.7 | 18 | 31.5 | 31.5 | 45 |
| Water Capacity | m3 | 4.5 | 4.68 | 5.9 | 6.3 | 11 |
Remarks: The fuel consumption in above table are counted the low
calorific value of biomass pellet as 17084 KJ/Kg (4085Kcal/Kg), if
the low calorific value of actual biomass fuels is bigger than
this, the corresponding fuel consumption will more save than above
data in table.
Application
The main purpose of DZH series manual biomass steam boiler is to
provide best quality of steam and power for industrial production.
Widely used for chemical, pharmacy, packaging, paper, building
materials, painting, textile, garment, printing and dyeing, food,
beverage and wine industries, and places such as super market,
hospital, university, hotel, restaurant and swimming pool etc.

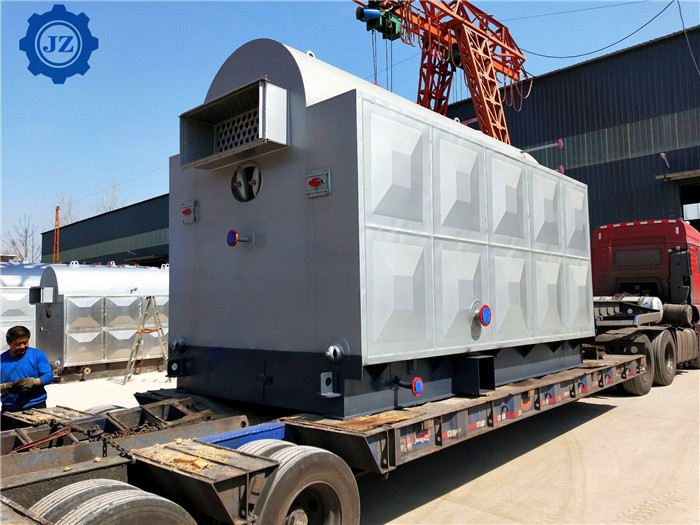

1000kg steam boiler, 1 ton wood chip biomass steam boiler industry
used packing and loading:
1.full set 1ton capacity biomass wood fired team boiler can load in
one 40ft open top container due to over-height
2.fuell set 2 ton capacity industrial biomass pellet steam boiler
can load in one 40ft flat rack due to over-width
3.fuell set 4 ton capacity industrial steam boiler can load in one
40ft flat rack also due to over-width
