500kg/Hour Small Package Steam Boiler Systems For Commercial Kitchen Equipment

Ask Lasest Price
Brand Name :	Jinzhen Boiler
Model Number :	WNS0.5-1.0-YQ
Certification :	CE
Price :	Negotiable
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	80 set per month
Delivery Time :	5-8 working days

Add to Cart

Product Details
Company Profile

500kg/Hour Small Package Steam Boiler Systems For Commercial Kitchen Equipment

500kg/Hour Small Package Steam Boiler Systems For Commercial Kitchen Equipment

General Introduction

Steam boiler gas fuel from the outside into the burner. Through automatic adjustment, automatic ignition function to produce the high temperature flame. Through the front of the furnace entering into the combustion chamber,through the front of smoke box to the rear of smoke box, then from the chimney into the atmosphere.

Model	WNS Series Oil Gas Steam Boiler
Structure	Wet Back Fire Tube Packaged Three Pass
Fuel	oil, gas, light oil, heavy oil, natural gas, lpg, lng, cng, diesel, biogas etc
Capacity	1-20 ton per hour
Pressure	0.7/1.0/1.25/1.6 Mpa (7/10/12.5/16 Bar)
Temperature	170/184/194/204 Celsius
Application	Chemical, food and brewery, pharmaceutical, package plant, textile dyeing and printing industry, swimming pool, hospital,school,clothing industry etc.

Boiler characteristics

1. WNS type steam boiler is a horizontal skid-mounted packaged internal combustion three-circuit fire tube boiler. The offset furnace is wet-back structure, the high-temperature flue gas washes the second and third return pipes in turn, and then the rear smoke chamber is discharged into the atmosphere through the chimney, and the whole arrangement is compact, and the appearance is beautiful;

2. Reasonable heating surface structure to effectively control smoke resistance;

3. Appropriate control of the exhaust gas temperature, that is, to ensure boiler efficiency, prevent smoke condensation and prolong the service life of the steam boiler;

4. The boiler is equipped with movable front and rear smoke box covers to make the boiler easy to repair;

5. It is equipped with an explosion-proof door, which automatically rebounds after pressure relief to ensure the safety of the steam boiler;

Technical Parameter

Model	Rated	Rated	Rated	Thermal	Fuel Consumption		Equipment Power		Weight
Model	Capacity (t/h)	Pressure (Mpa)	Temperature (C)	Efficiency (%)	Light oil (Kg/h)	Natural gas (Nm³/h)	Burn light oil	Burn gas	(t)
WNS1	1	0.7/1.0/1.25	170/184/194	>90	45-100	18-100	1.5	1.5	4
WNS1.5	1.5	0.7/1.0/1.25	170/184/194	>90.2	101.73	123.47	2.2	1.5	5
WNS2	2	1.0/1.25/1.6	184/194/204	>90.2	137.09	165.97	2.2	3	8
WNS3	3			>91	205.75	249.6	7.5	7.5	9
WNS4	4			>91	272.3	329.5	9	7.5	13
WNS5	5			>91.5	134-402	80-500	17.2	15	15
WNS6	6			>91.5	134-402	80-500	15	15	17
WN8	8	1.25/1.6/2.5	194/204/225	>91.6	523.4	631.5	26	22	21
WNS10	10			>91.6	212-890	150-1085	26	22	22
WNS12	12			>91.8	915.5	1090	26	22	27
WNS15	15			>91.8	931.5	1094.4	/	/	34
WNS20	20			>92	1380.33	1598.44	/	/	45
Note: Parameter is for reference only, we can design the boilers based on customers’ needs.

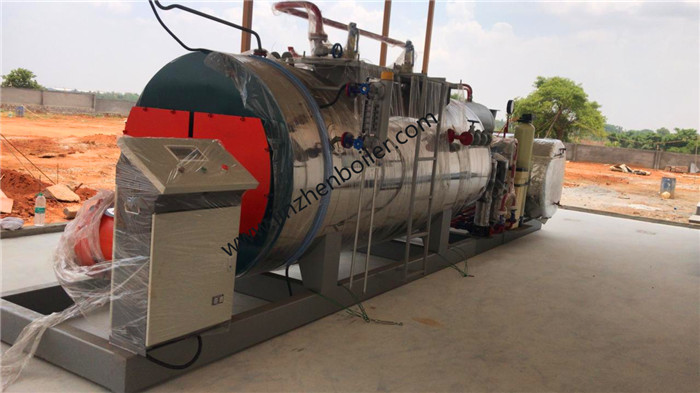

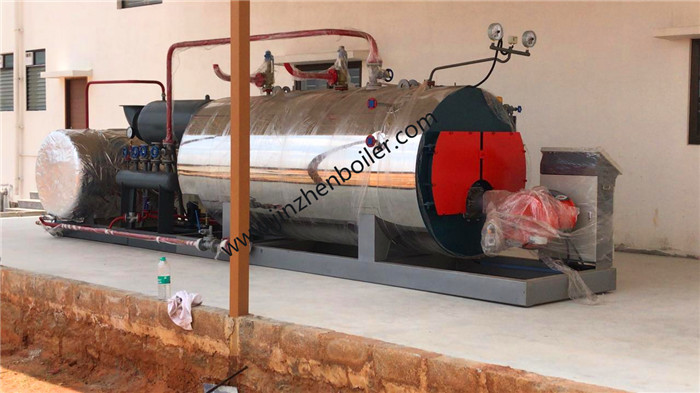

Details of packaged steam boiler

500kg/Hour Small Package Steam Boiler Systems For Commercial Kitchen Equipment

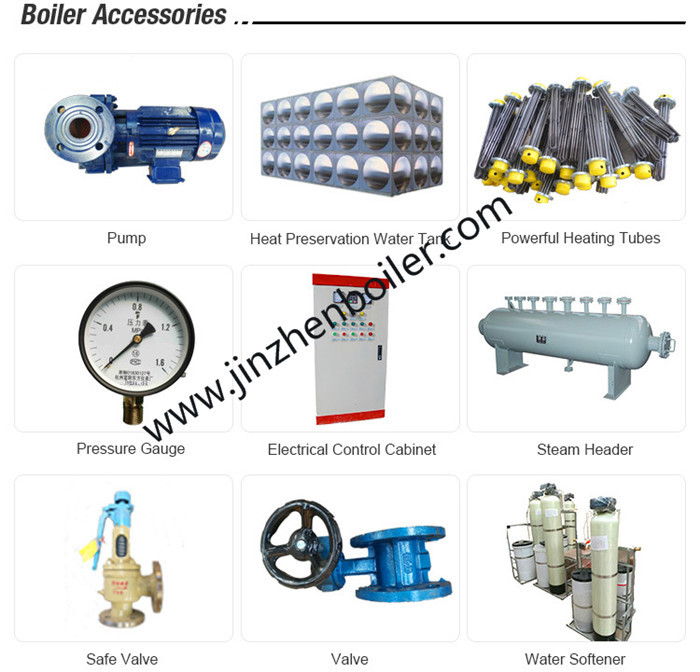

Boiler accessory

500kg/Hour Small Package Steam Boiler Systems For Commercial Kitchen Equipment

Application

This steam boiler is being widely used in hospitals, schools, textile mills, garment factories, large supermarket, garment factories, dyeing factory, hotel, dining room, dining room, swimming pool, food factory, beverage factory, soy products, meat products factory, cannery, brewery, pharmaceutical factory, packing plants, building materials factory, paint factory and other places of the enterprises and institutions.

FAQ

1. What are the available fuel for the oil gas fired boiler?

Oil gas fired boiler could burn both liquid fuel and gaseous fuel. The liquid fuel could be heavy oil, light oil, diesel, furnace oil, bunker oil, LPG (liquefied petroleum gas), etc. The gaseous fuel could be natural gas, city gas, bio-gas, etc.

2. Whether the boiler can burn dual fuel or multi-fuel?

boiler have oil burner, gas burner, and oil&gas dual fuel burner, we can offer the specific burner based on customers’ requirement.

3. What is the thickness of combustion chamber?

the thickness of corrugated furnace is different based on working pressure and furnace diameter, generally, the thickness is between 10~18mm, large combustion space, and combustion sufficient.

4. What is the inlet pressure of gas burner?

The inlet gas pressure is different for different capacity boiler, for example, the pressure for 2 ton steam capacity boiler is about 8~10KPa, while for 4 ton steam capacity boiler is about 18~20KPa.

5.The brand of burner?
The brands of burner are Italy Baltur, Rellio, Elco, etc.
