Steam Capacity 1ton, 2ton, 3ton Industrial Gas Oil Fired Packaged
Steam Boiler Price List
General Introduction
WNS series packaged steam boiler is classical shell type boiler, contains boiler proper; burner;
water level/ pressure control system, economizer, exhaust flue
system, valves, etc. The complete system is well mounted on the
base, user only need to supply water; electricity, fuel.
1.Model:WNS
2.Steam Capacity: 500kg/hr-20ton/hr
3.Design pressure:1.0Mpa(10bar), 1.25Mpa(13bar),
1.6Mpa(16bar),2.5Mpa(25bar)
4.Stem temperature: below 204 degree
5.Design fuel:natural gas, lpg,lng,cng,city gas,biogas, diesel
oil,heavy oil
6.Structure: three pass fire tube wet back
7.Application: boiler for textile mill, milk
pasteurization,corrugated machine, sugar factory,pringting dyeing
mill,medicine industry, food & beverage industry, chemical
industry, garment industry, food processing industry, and wood
processing industry, etc.
Boiler characteristics
1.Special Structure and High Efficiency: All system is well mounted on the base, its system is portable.
The users no need to consider the pipeline installation, wire
connection. After receiving the goods, just supply water;
electricity, fuel. It is equipped with renowned brand burners
(BALTUR, RIELLO, HOFAMAT, ECO FLAM), also finned tube type
economizer can ensure boiler's thermal efficiency up to 95%.
2, High Quality Control: In manufacturing processes, we has adopting steel strength test,
automatic steel cutting/ plate rolling/ welding, 100% x-ray welding check, magnetic particle check c-scan ultrasonography
Ultrasound check, fluorescent penetrating check, hydraulic (water)
pressure test, boiler thermal efficiency test,etc, to make sure all
finished products is qualified.
3.Automatic Safe Operation: WNS series boiler is equipped automatic burner ignition, automatic
water-level control, automatic pressure control, automatic
interlock chain stop protection, free settable working pressure,
free settable ON/OFF time, visible system's working states on
screen.
4, Easy Maintenance: WNS series boiler uses full water back tube-sheets instead of
traditional dry back tube-sheet, can avoid the dry-fire broken,
reduce the range of steel cooling contraction and hotting
expansion. Also, we adopting openable smoke-boxes, users can
replace the broken fire-tubes conveniently.
Technical Parameter
| Model | Rated | Rated | Rated | Thermal | Fuel Consumption | Equipment Power | Weight |
Capacity (t/h) | Pressure (Mpa) | Temperature (C) | Efficiency (%) | Light oil (Kg/h) | Natural gas (Nm³/h) | Burn light oil | Burn gas | (t) |
| WNS1 | 1 | 0.7/1.0/1.25 | 170/184/194 | >90 | 45-100 | 18-100 | 1.5 | 1.5 | 4 |
| WNS1.5 | 1.5 | >90.2 | 101.73 | 123.47 | 2.2 | 1.5 | 5 |
| WNS2 | 2 | 1.0/1.25/1.6 | 184/194/204 | >90.2 | 137.09 | 165.97 | 2.2 | 3 | 8 |
| WNS3 | 3 | >91 | 205.75 | 249.6 | 7.5 | 7.5 | 9 |
| WNS4 | 4 | >91 | 272.3 | 329.5 | 9 | 7.5 | 13 |
| WNS5 | 5 | >91.5 | 134-402 | 80-500 | 17.2 | 15 | 15 |
| WNS6 | 6 | >91.5 | 134-402 | 80-500 | 15 | 15 | 17 |
| WN8 | 8 | 1.25/1.6/2.5 | 194/204/225 | >91.6 | 523.4 | 631.5 | 26 | 22 | 21 |
| WNS10 | 10 | >91.6 | 212-890 | 150-1085 | 26 | 22 | 22 |
| WNS12 | 12 | >91.8 | 915.5 | 1090 | 26 | 22 | 27 |
| WNS15 | 15 | >91.8 | 931.5 | 1094.4 | / | / | 34 |
| WNS20 | 20 | >92 | 1380.33 | 1598.44 | / | / | 45 |
| Note: Parameter is for reference only, we can design the boilers
based on customers’ needs. |

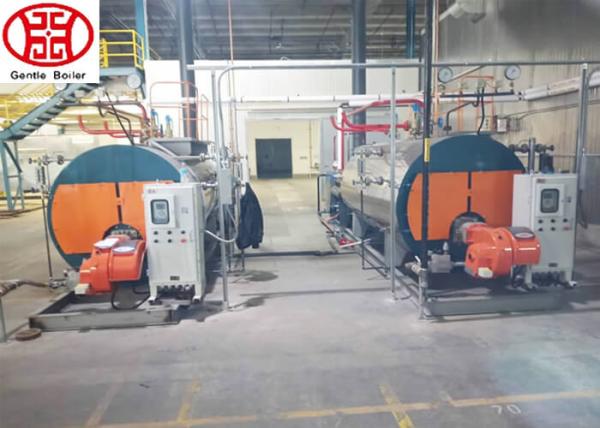

Boiler Detail Images
We choose high - quality materials to be precision machined to make
the products more efficient and energy efficient.the use of new
insulation materials, light weight, less heat loss, thermal
insulation performance.

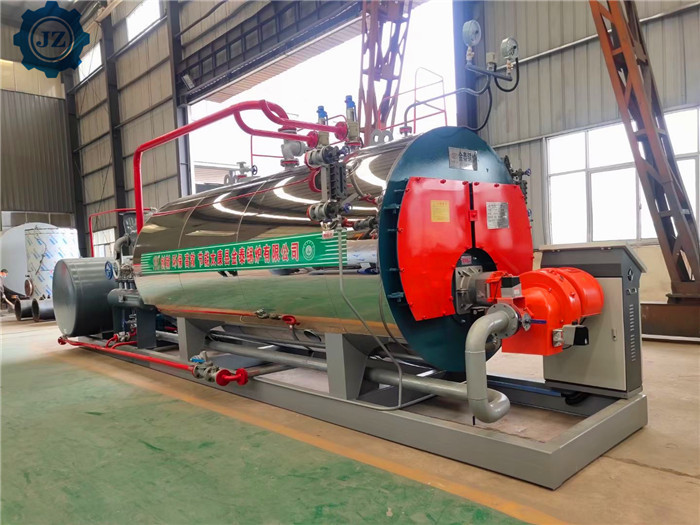

Picture of packaged steam boiler
FAQ
1. What are the available fuel for the oil gas fired boiler?
Oil gas fired boiler could burn both liquid fuel and gaseous fuel.
The liquid fuel could be heavy oil, light oil, diesel, furnace oil,
bunker oil, LPG (liquefied petroleum gas), etc. The gaseous fuel
could be natural gas, city gas, bio-gas, etc.
2. Whether the boiler can burn dual fuel or multi-fuel?
boiler have oil burner, gas burner, and oil&gas dual fuel
burner, we can offer the specific burner based on customers’
requirement.
3. What is the thickness of combustion chamber?
the thickness of corrugated furnace is different based on working
pressure and furnace diameter, generally, the thickness is between
10~18mm, large combustion space, and combustion sufficient.
4. What is the inlet pressure of gas burner?
The inlet gas pressure is different for different capacity boiler,
for example, the pressure for 2 ton steam capacity boiler is about
8~10KPa, while for 4 ton steam capacity boiler is about 18~20KPa.
5.The brand of burner?
The brands of burner are Italy Baltur, Rellio, Elco, etc.
