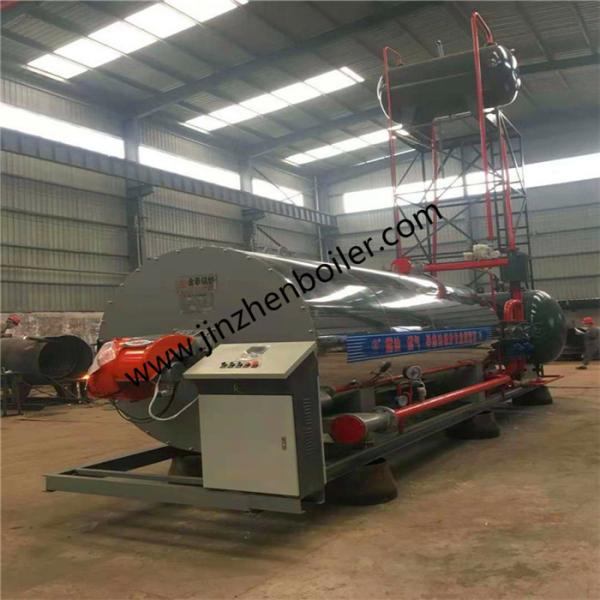

Skid-mounted Thermal Heat Oil Thermal Fluid Heater Heat Conducting Oil Boiler For Dyeing And Printing

Thermic Fluid Heater, thermal oil boiler

Heat Power:300,000-2,000,000 Kcal/H

Working Pressure :0.8 Mpa

Fuel :light oil,heavy oil,diesel

Application : textile printing and dyeing, plastic and rubber, paper industry, wood industry, building material, food industry

YY(Q)W series thermal oil boiler adopts horizontal chamber combustion three-coil structure,and its body is composed of outer coil,middle coil,inner coil and rear coil. It is widely applied for oil chemical industry, chemical fiber industry, wood processing industry, paper making industry, building materials industry, food industry,etc.

The thermal oil heater is a kind of special industrial furnace which uses diesel oil as the fuel, the furnace takes heat carrier oil as medium and uses the hot oil circulating pump force the medium to make liquid circulation; then the thermal energy will be transmitted to the devices and back to the furnace to be reheated.

This thermal Oil Boiler have advanced program control system, equipped with liquid level controller, pressure controller, temperature controller, and alarms to make sure the boiler work orderly and safe. So it is a kind of safe boiler with high efficiency and low power consumption.

Technical parameters

Specifications of Packaged Thermal Oil Boiler:

1.The temperature of oil can rise to 300°C at the atmospheric pressure.

2.Thermal Oil doesn't cause any corrosion in the boiler plant.

3. Also incrustation and calcification don't accure.

4. In the normal climate conditions , freezing doesn't occur in boiler plant.

5. When necessary, hot water, boiling water and steam can be produced by means of thermal oil boiler.

6. Temperature is checked easily.

7. Boiler plant maintenance costs are low

Gas Oil fired thermal boiler oil heating system

Scope of application:
1. Chemical industry - oleochemical, polymerization industry, reaction tank, distillation, concentration.
2, plastic industry - plastic guns, extrusion stereotypes.
3, textile industry - resin setting machine, dyeing machine, drying room, high temperature machine, roller machine.
4, the rubber industry - rubber vulcanization heating.
5, food industry - cooking, drying, vegetable oil refining.
6. Forest industry--heating and setting of splint, Pauli board and fiberboard.
7, paper industry - multi-layer cardboard packaging, drying, drying.
8. Others - heating of metal plating bath, paint condensation, drying, distillation, reduction, concentration, dehydration, and melting of asphalt in the pharmaceutical industry.

After-sale Service

1), 100%safety, running stably, excellent water level and pressure control, fully automatic operation

2), Boiler running life > 20years.

3), Good after-sale service. It is free for you to get the damaged spares in warranty period(1 year) if there is any questions. Assure that we can supply you spares in boiler’s all life.

4), We can arrange engineer to your company for installation and commissioning and training. If you need us at any time, we can send our technicians and prepare in a short time.

5), Special paint is used after assembly. Paint is particularly used in your climate area, which is anti-corrosion, anti-abrasion and color-fastness.

1. 100%safety, running stably, excellent water level and pressure control, fully automatic

Henan Jinzhen Boiler Co., Ltd is a professional industrial boiler manufacturer that specialized in the environment-friendly steam boiler, hot water boiler, thermal oil boiler and pressure vessels’ design, manufacture, installation, maintenance. Jinzhen Boiler factory is located in beautiful Zhoukou City which nearby Zhengzhou Airport, Shangqiu Railway Station, gets convenient traffic.We have over 6,000sq.m. building area, 105 employees, annual sales amount exceeds 25,000,000USD which includes 25% export amount in worldwide.

Jinzhen boilers include more than 150 kinds. There are:
(1) DZL coal/biomass fired steam boiler(1-20ton/h;)
(2) DZH wood fired steam boiler(0.5-6ton/h;)
(3) SZL biomass/coal fired steam boiler(4-25ton/h;)
(4) WNS series gas/oil fired steam boiler(0.5-20ton/h;)
(5) YLL(W) series coal/biomass fired thermal oil boiler(150,000-16,000,000Kcal)
(6) YY(Q)W gas /oil fired thermic fluid heater(150,000kcal-12,000,000Kcal)

All industrial boilers comply with GB/T quality standards and are greatly appreciated in a variety of markets throughout the world.Well-equipped facilities and excellent quality control throughout all production stages to totally guarantee customers' satisfaction.

As a result of high quality boiler and outstanding customer service, we have gained a global sales network reaching America, Australia, Mexico, Vietnam, Russia, Kazakhstan, South Africa, Syria,South Africa, Ethiopia, etc.
