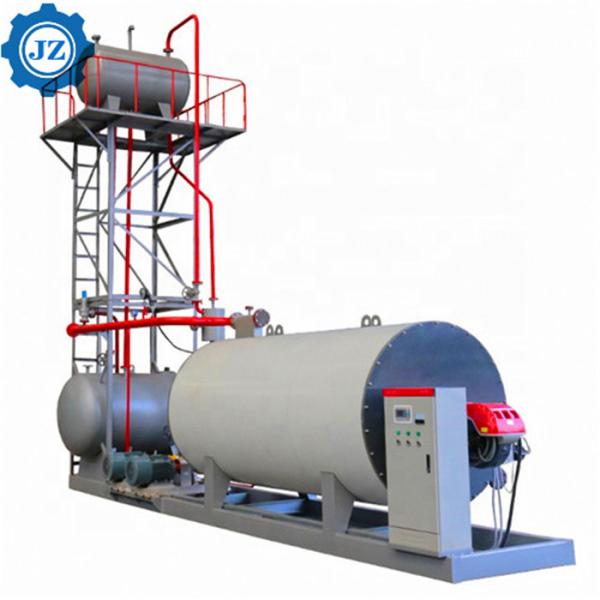

Oil Gas Fired Thermal Oil Boiler Organic Heat Carrier Boiler For
Petrochemical Industry
thermal oil boiler is a kind of special industrial furnace which
uses coal, (gas, oil, biomass )as the fuel, the furnace takes heat
conduction oil as medium and uses the hot oil circulating pump
force the medium to make liquid circulation, then the thermal
energy will be transmitted to the heat using equipment. After
unloaded in the heat using equipment, the heat conduction oil will
return to the furnace to be reheated. So the furnace can get higher
working temperature at low pressure, and make a better usage of
heat, it is a kind of safe furnace with high efficiency and low
power consumption.
| Model | YYW/YQW |
| Rated Thermal Power | 120-10000 KW |
| Design Pressure | 1.1 Mpa |
| Working Pressure | 0.8 Mpa |
| Medium Outlet Temperature | ≤350 C |
| Fuel | Light Oil,Heavy Oil,Natural Gas,Lpg,Lng,Cng,Diesel etc |
| Application | Chemical,Oil,Petrochemical,Textile,Printing,Rubber,Carton,Plywood,Asphalt,Cement,
etc |
Technical parameters
Gas Oil fired thermal boiler oil heating system
Performance characteristics:
1, larger coil combustion chamber can make the combustion in low
temperature and reduce the nitrogen oxides emissions with the
characters of energy saving and environmental protection.
2, the thermal oil heater structure increases the thermal
efficiency. And the high-density ring tube design structure can
also reduce the occupation space.
3. The reasonable circulation section structure of multi-pass heat
transfer ensure the thermal oil flow load uniform and the operation
stable
4, complete control system with warning system, easy operation,
safe operation.
5. Spiral coil inside and outside the furnace is composed of many
small diameter tube with the advantage of good performance thermal
expansion and low pressure.
6, The output (oil) temperature can be accurately controlled.
Medium temperature, pressure and smoke temperature protection can
also be controlled.
The thermal oil heaters in assembly structure is easy for
installation by just connecting system devices. Intelligent control
system makes heater operation control easy. Controller with screen
display has auto igniting, burning, circulation pumps control,
alarm and other control functions.
Scope of application:
1. Chemical industry - oleochemical, polymerization industry,
reaction tank, distillation, concentration.
2, plastic industry - plastic guns, extrusion stereotypes.
3, textile industry - resin setting machine, dyeing machine, drying
room, high temperature machine, roller machine.
4, the rubber industry - rubber vulcanization heating.
5, food industry - cooking, drying, vegetable oil refining.
6. Forest industry--heating and setting of splint, Pauli board and
fiberboard.
7, paper industry - multi-layer cardboard packaging, drying,
drying.
8. Others - heating of metal plating bath, paint condensation,
drying, distillation, reduction, concentration, dehydration, and
melting of asphalt in the pharmaceutical industry.
After-sale Service
1), 100%safety, running stably, excellent water level and pressure
control, fully automatic operation
2), Boiler running life > 20years.
3), Good after-sale service. It is free for you to get the damaged
spares in warranty period(1 year) if there is any questions. Assure
that we can supply you spares in boiler’s all life.
4), We can arrange engineer to your company for installation and
commissioning and training. If you need us at any time, we can send
our technicians and prepare in a short time.
5), Special paint is used after assembly. Paint is particularly used in
your climate area, which is anti-corrosion, anti-abrasion and color-fastness.
1. 100%safety, running stably, excellent water level and pressure
control, fully automatic
