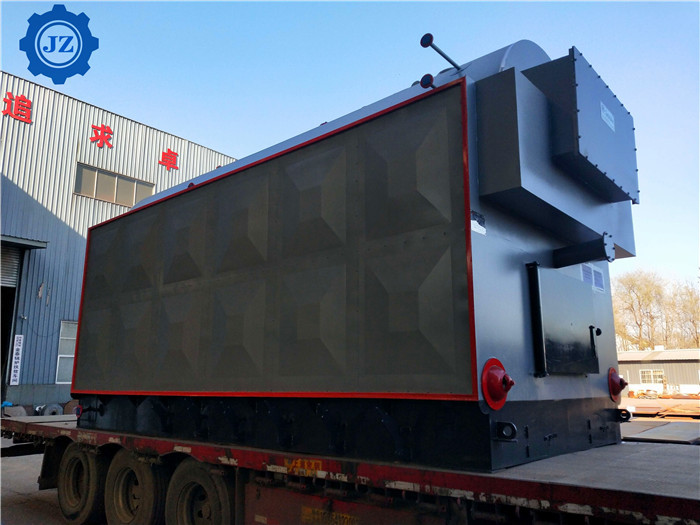

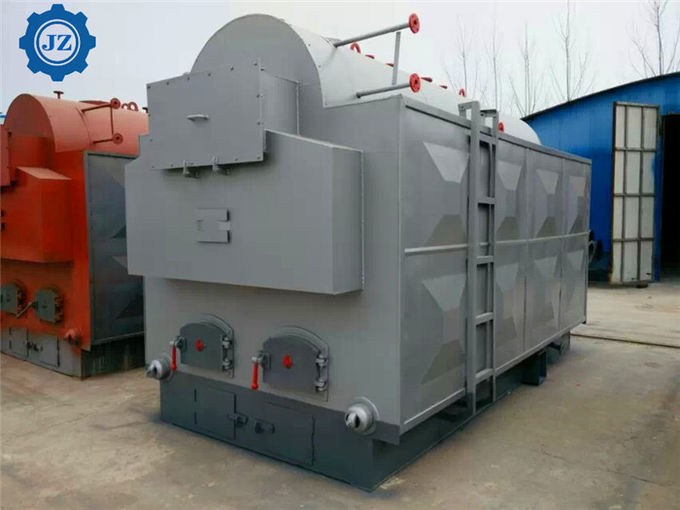

3ton 200hp Industrial Biomass Boiler Coal Fired Steam Boiler For Autoclave Steam Sterilizer

Model:DZH Type Moving Grate Stoker steam Boiler

Structure:WaterTube Fire Tube Three Pass

Rated Steam Capacity:1-20 ton/hr

Rated Steam Pressure:0.7/1.0/1.25/1.6/2.5 Mpa

Rated Steam Temperature:170/184/194/204/225 C

Application:Textile Mill,Food and Beverage,Chemical,Medicine,Light Industry,Rubber,Printing and Dyeing Plant,Paper Mill,Wood Processing,Garment and Laundry etc.

DZH type steam boiler body for the "A" structure, uniform heating surface, and the use of A certain radian, elastic, easy to expand and shrink the water wall pipe and strengthen the heat transfer of the screw pipe smoke pipe, the maximum to ensure the safety and efficiency.The pot shell, tube plate and other pressurized parts are elastic or quasi-elastic, which can improve the stress state to the greatest extent.The wing-shaped flue structure is adopted on both sides of the pot shell, which can effectively reduce the heat deviation of the system and ensure the heat transfer of the system is efficient and stable.The lower part of the boiler body is provided with an ascending tube, and there is no stagnant water in the pot, which can effectively solve the overburning and bulging at the bottom of the pot shell.The system itself has a certain self-dedusting ability to meet the increasingly stringent environmental requirements.

Steam Boiler specification sheet

Main features of coal fired steam boiler

1. There are three coal feeding methods: hydraulic push, manual drive and chain drive.

2. Beautiful appearance: heat insulation material and high color board outer packing are adopted.Namely heat preservation and energy saving, and beautiful generous.

3. Simple operation: it can run for several hours at a time, and users can enjoy 24-hour heating as a power plant.

4. Energy-saving economy: reasonable structure, adiabatic combustion, high combustion efficiency, obvious energy saving, low fuel cost.

4. Saving investment: no investment of drum and induced draft fan, saving electricity cost, the products are fast installed and easy to install.

5. Environmental protection standards: the upper combustion mechanism design is adopted to meet the smoke emission standards of coal-fired boilers, which can be used in a class of environmental protection areas without disturbing the residents with noise.

Application for biomass steam boiler

Wood fired steam boiler is suitable for painting room, drying box, drying tower painting line and other purposes.It is especially suitable for central heating in urban residential areas, industrial production, enterprises and institutions, schools, hotels, bath centers and other places where heating, hot water and steam are needed.

Henan Jinzhen Boiler Co., Ltd is a professional industrial boiler manufacturer that specialized in the environment-friendly steam boiler, hot water boiler, thermal oil boiler and pressure vessels’ design, manufacture, installation, maintenance. Jinzhen Boiler factory is located in beautiful Zhoukou City which nearby Zhengzhou Airport, Shangqiu Railway Station, gets convenient traffic.We have over 6,000sq.m. building area, 105 employees, annual sales amount exceeds 25,000,000USD which includes 25% export amount in worldwide.

Jinzhen boilers include more than 150 kinds. There are:
(1) DZL coal/biomass fired steam boiler(1-20ton/h;)
(2) DZH wood fired steam boiler(0.5-6ton/h;)
(3) SZL biomass/coal fired steam boiler(4-25ton/h;)
(4) WNS series gas/oil fired steam boiler(0.5-20ton/h;)
(5) YLL(W) series coal/biomass fired thermal oil boiler(150,000-16,000,000Kcal)
(6) YY(Q)W gas /oil fired thermic fluid heater(150,000kcal-12,000,000Kcal)

All industrial boilers comply with GB/T quality standards and are greatly appreciated in a variety of markets throughout the world.Well-equipped facilities and excellent quality control throughout all production stages to totally guarantee customers' satisfaction.

As a result of high quality boiler and outstanding customer service, we have gained a global sales network reaching America, Australia, Mexico, Vietnam, Russia, Kazakhstan, South Africa, Syria,South Africa, Ethiopia, etc.
