Technical Parameter
| Model | Rated | Rated | Rated | Thermal | Fuel Consumption | Equipment Power | Weight |
Capacity (t/h) | Pressure (Mpa) | Temperature (C) | Efficiency (%) | Light oil (Kg/h) | Natural gas (Nm³/h) | Burn light oil | Burn gas | (t) |
| WNS1 | 1 | 0.7/1.0/1.25 | 170/184/194 | >90 | 45-100 | 18-100 | 1.5 | 1.5 | 4 |
| WNS1.5 | 1.5 | >90.2 | 101.73 | 123.47 | 2.2 | 1.5 | 5 |
| WNS2 | 2 | 1.0/1.25/1.6 | 184/194/204 | >90.2 | 137.09 | 165.97 | 2.2 | 3 | 8 |
| WNS3 | 3 | >91 | 205.75 | 249.6 | 7.5 | 7.5 | 9 |
| WNS4 | 4 | >91 | 272.3 | 329.5 | 9 | 7.5 | 13 |
| WNS5 | 5 | >91.5 | 134-402 | 80-500 | 17.2 | 15 | 15 |
| WNS6 | 6 | >91.5 | 134-402 | 80-500 | 15 | 15 | 17 |
| WN8 | 8 | 1.25/1.6/2.5 | 194/204/225 | >91.6 | 523.4 | 631.5 | 26 | 22 | 21 |
| WNS10 | 10 | >91.6 | 212-890 | 150-1085 | 26 | 22 | 22 |
| WNS12 | 12 | >91.8 | 915.5 | 1090 | 26 | 22 | 27 |
| WNS15 | 15 | >91.8 | 931.5 | 1094.4 | / | / | 34 |
| WNS20 | 20 | >92 | 1380.33 | 1598.44 | / | / | 45 |
| Note: Parameter is for reference only, we can design the boilers
based on customers’ needs. |

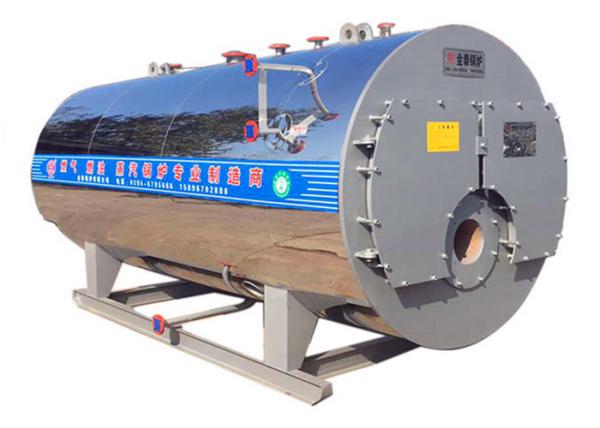

Steam Boiler characteristics
◆ unique large combustion chamber structure design, three return
full wet-back structure, maintain super radiation heat transfer
capacity, at the same time, to achieve low-temperature combustion,
improve the thermal efficiency of the boiler, reduce NOX emissions,
efficient environmental protection;
◆ the use of threaded smoke pipe, increase the heat transfer
effect, improve the thermal efficiency of the boiler;
◆ the front and rear smoke boxes of the boiler adopt multi-stage
sealing mode, without smoke leakage;
◆ with large steam space, steam quality is good;
◆ water level, steam pressure, smoke exhaust temperature and other
multiple protection, safe and reliable;
◆ efficient insulation material to ensure the boiler surface
temperature is low;
◆ supporting the boiler economizer of jinyutai patented product,
saving fuel cost by 5-15%, and upgrading the boiler to condensing
boiler;
◆ multi-point sewage discharge is set to make the heating surface
of the boiler cleaner.
Steam Boiler Installation Case
Core technology:
1. Low Nitrogen oxide emissions;
2. PLC control system;
3. The 5th stage water level protection;
4. Flame-out, power failure self-locking protection function;
5. Automatic fault identification function;
6. Data collection, analysis function;
7. Internet of Things remote monitoring.
Application
Disel fired steam boiler is being widely used in hospitals,
schools, textile mills, garment factories, large supermarket,
garment factories, dyeing factory, hotel, dining room, dining room,
swimming pool, food factory, beverage factory, soy products, meat
products factory, cannery, brewery, pharmaceutical factory, packing
plants, building materials factory, paint factory and other places
of the enterprises and institutions.
FAQ
1. What are the available fuel for the oil gas fired boiler?
Oil gas fired boiler could burn both liquid fuel and gaseous fuel.
The liquid fuel could be heavy oil, light oil, diesel, furnace oil,
bunker oil, LPG (liquefied petroleum gas), etc. The gaseous fuel
could be natural gas, city gas, bio-gas, etc.
2. Whether the boiler can burn dual fuel or multi-fuel?
boiler have oil burner, gas burner, and oil&gas dual fuel
burner, we can offer the specific burner based on customers’
requirement.
3. What is the thickness of combustion chamber?
the thickness of corrugated furnace is different based on working
pressure and furnace diameter, generally, the thickness is between
10~18mm, large combustion space, and combustion sufficient.
4. What is the inlet pressure of gas burner?
The inlet gas pressure is different for different capacity boiler,
for example, the pressure for 2 ton steam capacity boiler is about
8~10KPa, while for 4 ton steam capacity boiler is about 18~20KPa.
5.The brand of burner?
The brands of burner are Italy Baltur, Rellio, Elco, etc.
