Energy Efficient Oil/Gas-Fired Steam Boiler Systems For Industrial Steam Power Plants

Ask Lasest Price
Brand Name :	Jinzhen Boiler
Model Number :	WNS2-1.25-YQ
Certification :	IS0900
Price :	Negotiable
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	80 set per month
Delivery Time :	5-8 working days

Add to Cart

Product Details
Company Profile

Energy Efficient Oil/Gas-Fired Steam Boiler Systems For Industrial Steam Power Plants

Energy Efficient Oil/Gas-Fired Steam Boiler Systems For Industrial Steam Power Plants

General Introduction

Automatic fuel (gas) steam boiler using a horizontal wet back combustion full, efficient threaded pipe with sound insulation outsourcing design, thermal efficiency up to 85%, the product design, rational structure, good process performance, so that the products with extraordinary excellent quality.

With full waveform furnace, with good thermal stretchable; full pull side butt welding technology, reducing the furnace temperature stress; tube and tube plate connected by welding form after the first expansion, eliminate corrosion problems, extend the life of the boiler; threaded pipe heat exchanger, to improve the heat transfer coefficient of the boiler.

Model	WNS Series Oil Gas Steam Boiler
Structure	Wet Back Fire Tube Packaged Three Pass
Fuel	oil, gas, light oil, heavy oil, natural gas, lpg, lng, cng, diesel, biogas etc
Capacity	1-20 ton per hour
Pressure	0.7/1.0/1.25/1.6 Mpa (7/10/12.5/16 Bar)
Temperature	170/184/194/204 Celsius
Application	Chemical, food and brewery, pharmaceutical, package plant, textile dyeing and printing industry, swimming pool, hospital,school,clothing industry etc.

Boiler characteristics

1, Horizontal ,fire tube ,3 pass ,wet back stucture ;

2, Corrugated furnace and corrugated fire-Tube can increase boiler's heating surface effectively;

3, Wet-Back replaced the Dry-Back, can protect the smoke-boxes from high-temperature damage.

4, Boiler designed with automatic operation ,including water level and pressure ,burner on and off.And also adpots autoamtic ignition, water-shortage protection, over-pressure protection, flameout protection.

4, We always test our boiler strictly before delivery ,to make sure every customer can get our boiler in good situation.

Technical Parameter

Model	Rated	Rated	Rated	Thermal	Fuel Consumption		Equipment Power		Weight
Model	Capacity (t/h)	Pressure (Mpa)	Temperature (C)	Efficiency (%)	Light oil (Kg/h)	Natural gas (Nm³/h)	Burn light oil	Burn gas	(t)
WNS1	1	0.7/1.0/1.25	170/184/194	>90	45-100	18-100	1.5	1.5	4
WNS1.5	1.5	0.7/1.0/1.25	170/184/194	>90.2	101.73	123.47	2.2	1.5	5
WNS2	2	1.0/1.25/1.6	184/194/204	>90.2	137.09	165.97	2.2	3	8
WNS3	3			>91	205.75	249.6	7.5	7.5	9
WNS4	4			>91	272.3	329.5	9	7.5	13
WNS5	5			>91.5	134-402	80-500	17.2	15	15
WNS6	6			>91.5	134-402	80-500	15	15	17
WN8	8	1.25/1.6/2.5	194/204/225	>91.6	523.4	631.5	26	22	21
WNS10	10			>91.6	212-890	150-1085	26	22	22
WNS12	12			>91.8	915.5	1090	26	22	27
WNS15	15			>91.8	931.5	1094.4	/	/	34
WNS20	20			>92	1380.33	1598.44	/	/	45
Note: Parameter is for reference only, we can design the boilers based on customers’ needs.

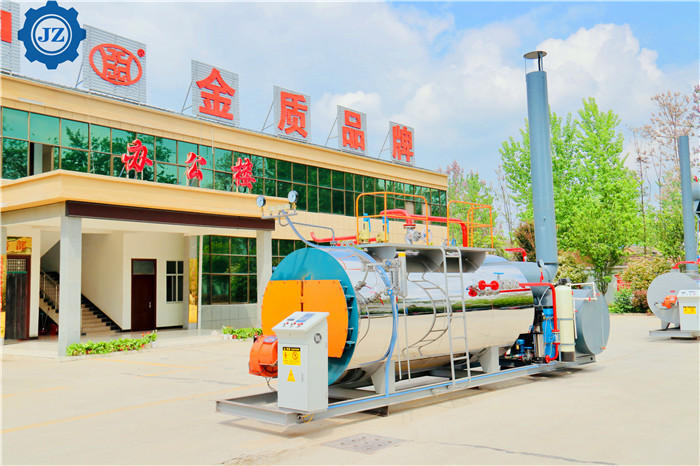

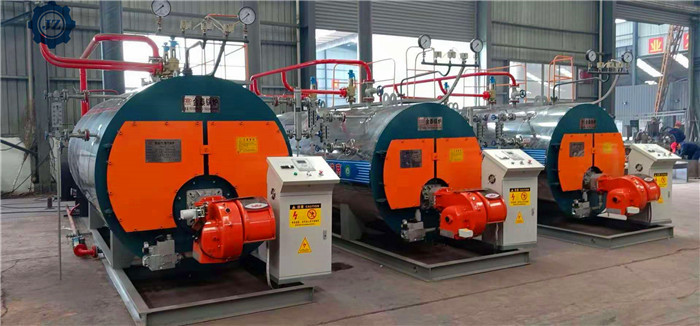

Industrial Steam Boiler Picture

Energy Efficient Oil/Gas-Fired Steam Boiler Systems For Industrial Steam Power Plants

Application

Natural gas fired steam boiler is being widely used in hospitals, schools, textile mills, garment factories, large supermarket, garment factories, dyeing factory, hotel, dining room, dining room, swimming pool, food factory, beverage factory, soy products, meat products factory, cannery, brewery, pharmaceutical factory, packing plants, building materials factory, paint factory and other places of the enterprises and institutions.

FAQ

1. What are the available fuel for the oil gas fired boiler?

Oil gas fired boiler could burn both liquid fuel and gaseous fuel. The liquid fuel could be heavy oil, light oil, diesel, furnace oil, bunker oil, LPG (liquefied petroleum gas), etc. The gaseous fuel could be natural gas, city gas, bio-gas, etc.

2. Whether the boiler can burn dual fuel or multi-fuel?

boiler have oil burner, gas burner, and oil&gas dual fuel burner, we can offer the specific burner based on customers’ requirement.

3. What is the thickness of combustion chamber?

the thickness of corrugated furnace is different based on working pressure and furnace diameter, generally, the thickness is between 10~18mm, large combustion space, and combustion sufficient.

4. What is the inlet pressure of gas burner?

The inlet gas pressure is different for different capacity boiler, for example, the pressure for 2 ton steam capacity boiler is about 8~10KPa, while for 4 ton steam capacity boiler is about 18~20KPa.

5.The brand of burner?
The brands of burner are Italy Baltur, Rellio, Elco, etc.
