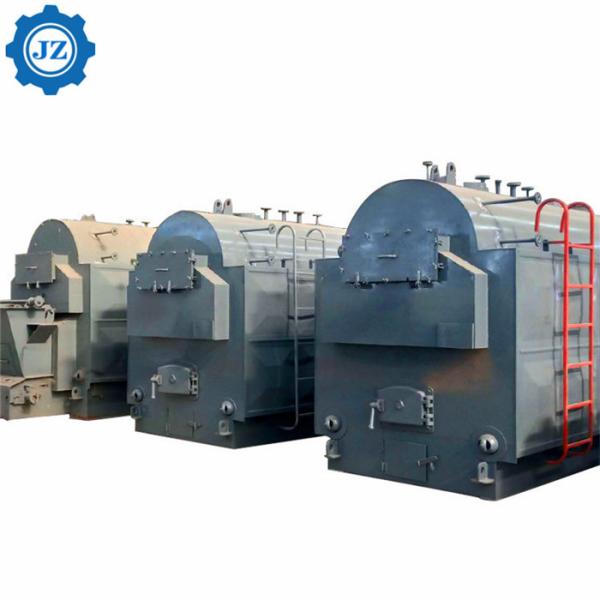

4ton Wood Pellet Wood Chips Biomass Fuel Fired Steam Boiler For
Slaughterhouse
1. Steam Boiler capacity:1-4ton/h
2. Stem pressure: 0.7MPa (7bar) ,1.0MPa(10bar),1.25MPa(13bar),
1.6MPa(16bar)
3. Steam temperature output: 170℃, 184℃, 193℃, 204℃
4. Available fuel: biomass, wood pellet,peanut, paddy, rice
husk,sawdust solid fuel.
5. Boiler Structure: Horizontal three pass fire tube industrial
used steam boiler
6. Application:used for all kinds of industrial production and
processing.
7. Standard of Design, Manufacturing and Inspection: GB150
Application:Textile Mill,Food and Beverage,Chemical,Medicine,Light
Industry,Rubber,Printing and Dyeing Plant,Paper Mill,Wood
Processing,Garment and Laundry etc.
This steam boiler fixed, moving grate two combustion methods,
supporting auxiliary blowers, fan, power distribution cabinets,
automatic water treatment, the series furnace affordable to meet
the different needs of users.
It normally suitable for 1ton to 4ton/h capacity,use biomass
pellet,wood pellet, wood chip, rice huskrice husk,straw, cashew,
sawdust, paddy ,peanut,palm oil kernel shell,cashew nut and all
other kinds of solid fuel.
Nude packing for boiler main part and wood box packing for boiler
accessories. All goods will be reforced after packing. 20 or 40
flact container shipping.
Structure
Classical Structure
Advanced Structure: DZH boiler adopting threaded fire tubes, single
water drum, horizontal shell type boiler with 3 fire-passes
structure, water-tube fire-tube mix design. Comparing with DZL
series boiler, DZH series boiler has better adaptability on fuels,
it can fire coal, rice husk, nut shell, sawdust, waste wood pieces,
also can fire wood logs, straws. But, DZH boiler can only support
manual fuel feeding, and manual ash remove.
High Quality Control
High Quality Control: In manufacturing processes, we has adopting
steel strength test, automatic steel cutting/ plate rolling/
welding, 100% x-ray welding check, magnetic particle check c-scan
ultrasonography Ultrasound check, fluorescent penetrating check,
hydraulic (water) pressure test, boiler thermal efficiency
test,etc, to make sure all finished products is qualified.
Low Fuel & Labor Cost
DZH boiler can firecoal, rice husk, nut shell, sawdust, waste wood pieces, also can
fire wood logs, straws. This will markedly reduce user’s fuel consumption cost, increase
company’s benefits. Only need 1 worker to operate the fuel feeding and slag removing.
Combustion process:
The fuel enters the furnace and burns on the grate. The flue gas
from the production enters the convection tube bundle on both wings
along the bottom of the boiler barrel through the smoke outlet on
the middle partition wall, enters the threaded smoke pipe through
the front smoke box, passes through the dust collector, and is
pumped and discharged into the atmosphere through the chimney by
the induced draft fan.
Main features of biomass steam boiler:
1. There are three coal feeding methods: hydraulic push, manual
drive and chain drive.
2. Beautiful appearance: heat insulation material and high color
board outer packing are adopted.Namely heat preservation and energy
saving, and beautiful generous.
3. Simple operation: it can run for several hours at a time, and
users can enjoy 24-hour heating as a power plant.
4. Energy-saving economy: reasonable structure, adiabatic
combustion, high combustion efficiency, obvious energy saving, low
fuel cost.
4. Saving investment: no investment of drum and induced draft fan,
saving electricity cost, the products are fast installed and easy
to install.
5. Environmental protection standards: the upper combustion
mechanism design is adopted to meet the smoke emission standards of
coal-fired boilers, which can be used in a class of environmental
protection areas without disturbing the residents with noise.
Technical Parameter
Model
Item | DZH0.5-0.7-AII
DZH0.5-1.0-AII | DZH1-0.7-AII
DZH1-1.0-AII
DZH1-1.25-AII | DZH2-0.7-AII
DZH2-1.0-AII
DZH2-1.25-AII
DZH2-1.6-AII | DZH4-1.25-AII
DZH4-1.6-AII |
Rated evaporation
capacity (t/h) | 0.5 | 1 | 2 | 4 |
Working
pressure(Mpa) | 0.7/1.0 | 0.7/1.0/1.25 | 0.7/1.0/1.25/1.6 | 1.25/1.6 |
Rated steam
temperature(℃) | 170/184 | 170/184/194 | 170/184/194/204 | 194/204 |
Feed water
temperature(℃) | 20 | 20 | 20 | 20 |
Effective area of
grate(m2) | 1.28 | 2.1 | 3.36 | 5.2 |
Fuel consumption
(Kg/h) | 76 | 150 | 301 | 602 |
Exhaust flue gas
temperature(C) | 165 | 165 | 165 | 165 |
Thermal Efficiency
(%) | 80 | 80 | 80 | 80 |
| Size(m) | 3.2x 2.0x 2.6 | 4.1x 2.2x 2.9 | 4.7x 2.3x 3.2 | 5.6x 2.5x 3.5 |
| Weight (t) | 8 | 12 | 15 | 22 |
Biomass Fuel Materials
1. Rice husk 2. Straw
3. Wood Chips 4. Peanut Shells
5. Coconut Shells 6. Palm Shells
7. Bagasse 8. Biomass Pellet
Application: medicine, chemical industry, light industry, textile,
building materials, breeding, food and beverage, plastic foam,
printing washing, rubber processing, paper making, wood processing,
hotels, hotels, clothing, etc.
Warranty And After-Sale Service
Jinzhen Boiler promises the top quality of every set of boiler and
best after-sales service as followings :
(A) The boiler body guarantee is two years, for accessories three
years
(B) During the guarantee period , if the main body defective or
broken without wrong operating, Jinzhen Boiler must replace the
parts for free or prepare the spare-parts for free.
(C) Jinzhen Boiler should provide boiler technical service and
operation guidance for whole life long.
(D) Regarding to the installation and training, the buyer should
take all the correlative charges (accommodation and food, round
-trip tickets)
Q1: How can you get the best price quickly?
(1)We need to know the boiler capacity, the fuel you plan to use
and the steam pressure you need, and then we can confirm the boiler
model.
(2) Customer needs to provide us your name, email address and
company name, and then we will send you price list immediately.And
if you use whatsapp, skype or wechat, you can provide us your ID,
it will be more convenient for our communication.
Q2: Why should you believe our boiler quality?
(1).Strength calculation report with applied materials information;
(2).100%NDT(non-destructive inspection) report of steel plate, tube
and welding rod;
(3).100% X-ray inspection(welding seam): ensure the quality of
entire boiler;
(4).Hydrostatic test: ensure the standard working pressure and
safety;
(5).Passed SGS certificate.
Q3: What about the installation and Commissioning?
After you receive the boiler, we will guide you to make some
preparation for installation;If necessary, our expert will fly to
your local place in 72 hours. The experts will responsible for
guiding installation and commissioning. But the buyer will be in
charge of fee corresponding.
Q4:What is the using life of your boiler?
A:Normally the boiler is designed for 20 years life span, but with
right operation and good maintenance,the boiler can be used for
20-25 years.
Q5:Whether the boiler can burn dual fuel or multi-fuel?
boiler have oil burner, gas burner, and oil&gas dual fuel
burner, we can offer the specific burner based on customers’
requirement.
