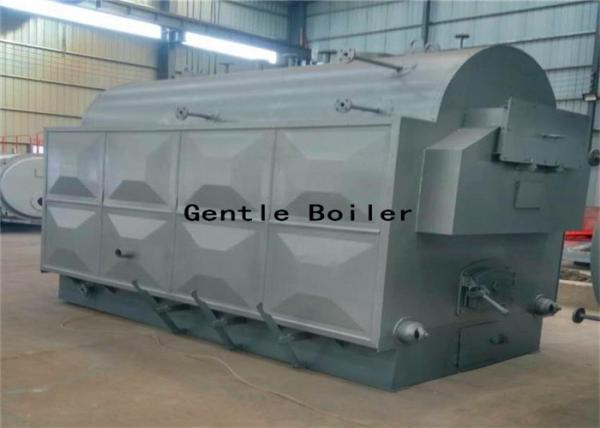

Chinese Factory Grate Firing Biomass Pellet Steam Boiler for Liquor-making Industry​

Model:DZH Type Moving Grate Stoker Steam Boiler

Structure:WaterTube Fire Tube Three Pass

Rated Steam Capacity:1-20 ton/hr

Rated Steam Pressure:0.7/1.0/1.25/1.6/2.5 Mpa

Rated Steam Temperature:170/184/194/204/225 C

Application:Textile Mill,Food and Beverage,Chemical,Medicine,Light Industry,Rubber,Printing and Dyeing Plant,Paper Mill,Wood Processing,Garment and Laundry etc.

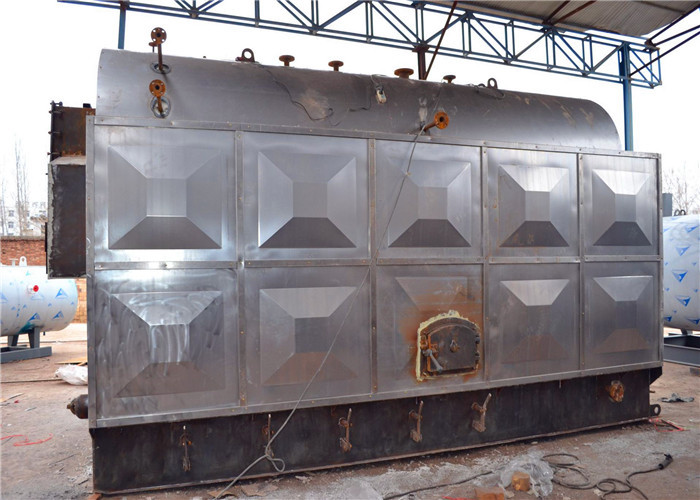

DZH biomass horizontal steam boiler, is a horizontal three - return water - fire tube hybrid boiler, in the boiler barrel arranged with a bunch of threaded smoke pipe.The left and right sides of the furnace chamber are equipped with water cooling walls of light pipes.It adopts light movable grate, manual feeding, equipped with blower and induced draft fan for mechanical ventilation.The front and rear arches of the furnace adopt new energy saving technology.After the fuel falls on the grate, enters the furnace and burns, the flame, through the rear arch refraction, turns upward through the burning Chambers on both sides of the body, turns back to the front smoke box, and then returns to the tube bundle in the pot through the front smoke box, enters the economizer through the rear smoke box, and then is pumped by the induced draft fan to the air through the flue to the chimney.

Structure

Combustion process:

The fuel enters the furnace and burns on the grate. The flue gas from the production enters the convection tube bundle on both wings along the bottom of the boiler barrel through the smoke outlet on the middle partition wall, enters the threaded smoke pipe through the front smoke box, passes through the dust collector, and is pumped and discharged into the atmosphere through the chimney by the induced draft fan.

Main features of biomass steam boiler

1. There are three coal feeding methods: hydraulic push, manual drive and chain drive.

2. Beautiful appearance: heat insulation material and high color board outer packing are adopted.Namely heat preservation and energy saving, and beautiful generous.

3. Simple operation: it can run for several hours at a time, and users can enjoy 24-hour heating as a power plant.

4. Energy-saving economy: reasonable structure, adiabatic combustion, high combustion efficiency, obvious energy saving, low fuel cost.

4. Saving investment: no investment of drum and induced draft fan, saving electricity cost, the products are fast installed and easy to install.

5. Environmental protection standards: the upper combustion mechanism design is adopted to meet the smoke emission standards of coal-fired boilers, which can be used in a class of environmental protection areas without disturbing the residents with noise.

Henan Jinzhen Boiler Co., Ltd is a professional industrial boiler manufacturer that specialized in the environment-friendly steam boiler, hot water boiler, thermal oil boiler and pressure vessels’ design, manufacture, installation, maintenance. Jinzhen Boiler factory is located in beautiful Zhoukou City which nearby Zhengzhou Airport, Shangqiu Railway Station, gets convenient traffic.We have over 6,000sq.m. building area, 105 employees, annual sales amount exceeds 25,000,000USD which includes 25% export amount in worldwide.

Jinzhen boilers include more than 150 kinds. There are:
(1) DZL coal/biomass fired steam boiler(1-20ton/h;)
(2) DZH wood fired steam boiler(0.5-6ton/h;)
(3) SZL biomass/coal fired steam boiler(4-25ton/h;)
(4) WNS series gas/oil fired steam boiler(0.5-20ton/h;)
(5) YLL(W) series coal/biomass fired thermal oil boiler(150,000-16,000,000Kcal)
(6) YY(Q)W gas /oil fired thermic fluid heater(150,000kcal-12,000,000Kcal)

All industrial boilers comply with GB/T quality standards and are greatly appreciated in a variety of markets throughout the world.Well-equipped facilities and excellent quality control throughout all production stages to totally guarantee customers' satisfaction.

As a result of high quality boiler and outstanding customer service, we have gained a global sales network reaching America, Australia, Mexico, Vietnam, Russia, Kazakhstan, South Africa, Syria,South Africa, Ethiopia, etc.
